Rear Catalytic Converter

Rear Catalytic Converter

REMOVAL
1. Remove the center exhaust pipe.

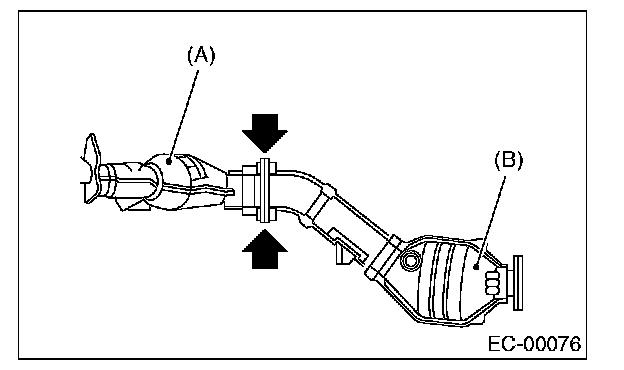

2. Separate the rear catalytic converter (B) from front catalytic converter (A).

INSTALLATION

NOTE:
- Replace the gaskets with new ones.
- Install in the reverse order of removal.
