Fuel Injector Circuit

FUEL INJECTOR CIRCUIT

CAUTION: After repair or replacement of faulty parts, conduct Clear Memory Mode and Inspection Mode.
Clearing Diagnostic Trouble Codes
Basic Descriptions

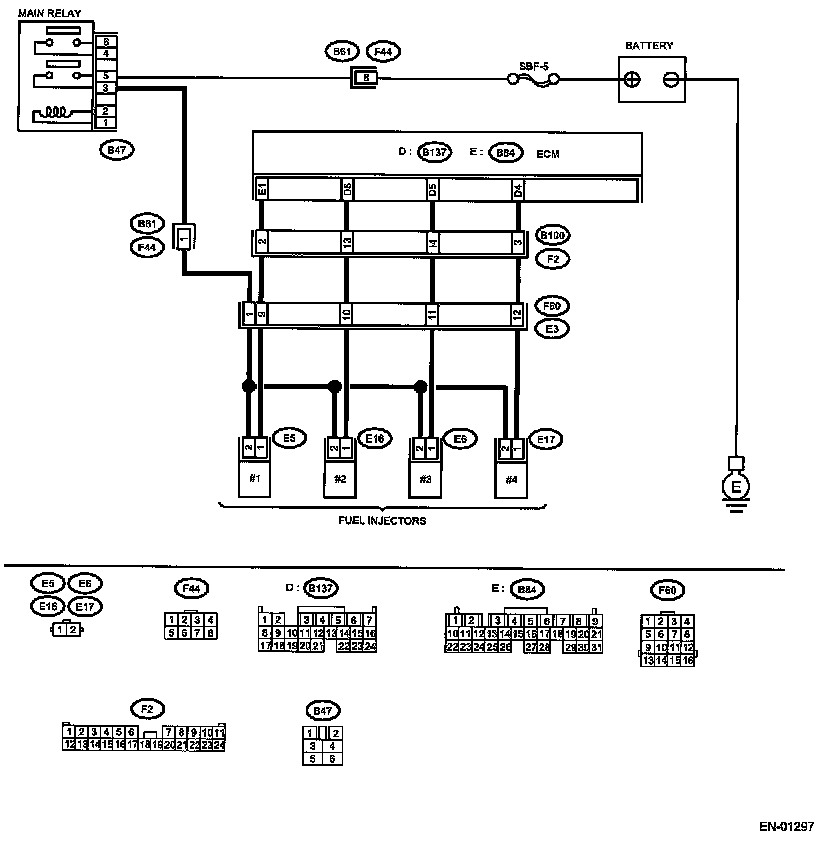

Wiring Diagram:

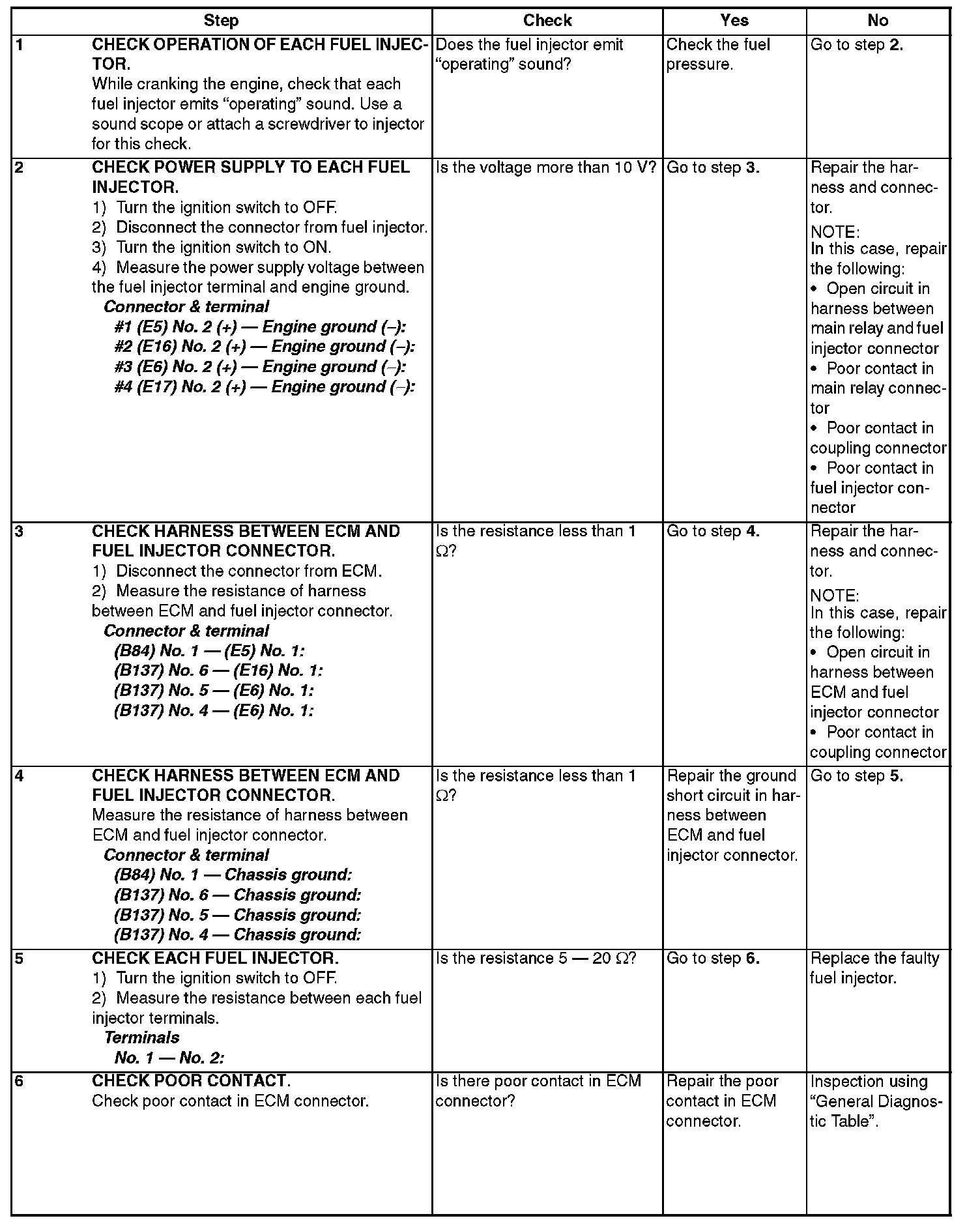

Step 1 - 6:
