Actuator Operation

Compulsory Valve Operation Check Mode

OPERATION
Prepare the Manufacturer's scan tool kit.
Connect the diagnosis cable to Manufacturer's scan tool.

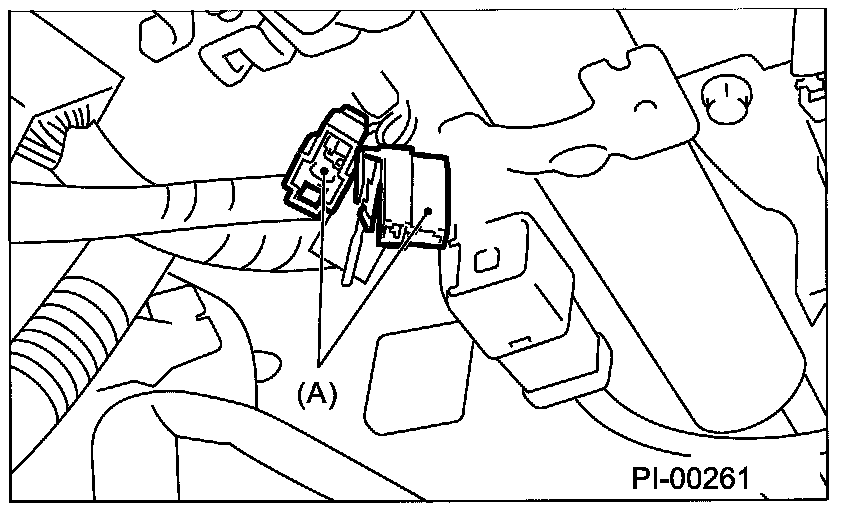

Connect the test mode connector (A) at the lower portion of instrument panel (on driver's side).

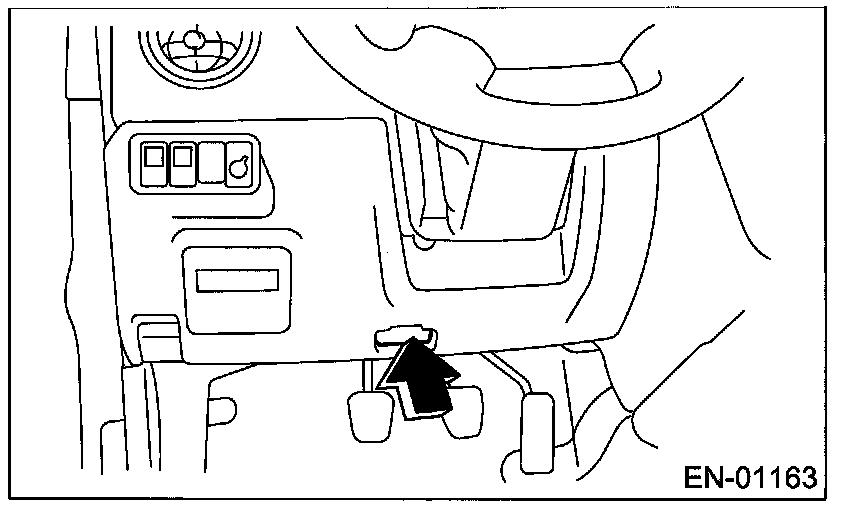

Connect the Manufacturer's scan tool to data link connector located in the lower portion of instrument panel (on driver's side).







IMPORTANT: Do not connect scan tools except for Manufacturer's scan tool and OBD-II general scan tool.

Turn the ignition switch to ON (engine OFF), and start the Manufacturer's scan tool.
On Main Menu display screen, select the {2. Each System Check}.
On System Selection Menu display screen, select the {Engine Control System}.
Select the {OK} after the information of engine type is displayed.
On Engine Diagnosis display screen, select the {System Operation Check Mode}.
On System Operation Check Mode display screen, select the {Actuator ON/OFF Operation}.
Select the desired compulsory actuator on the Actuator ON/OFF Operation.
Pressing the [NO] key completes the compulsory valve operation check mode. The display will then return to the Actuator ON/OFF Operation screen.

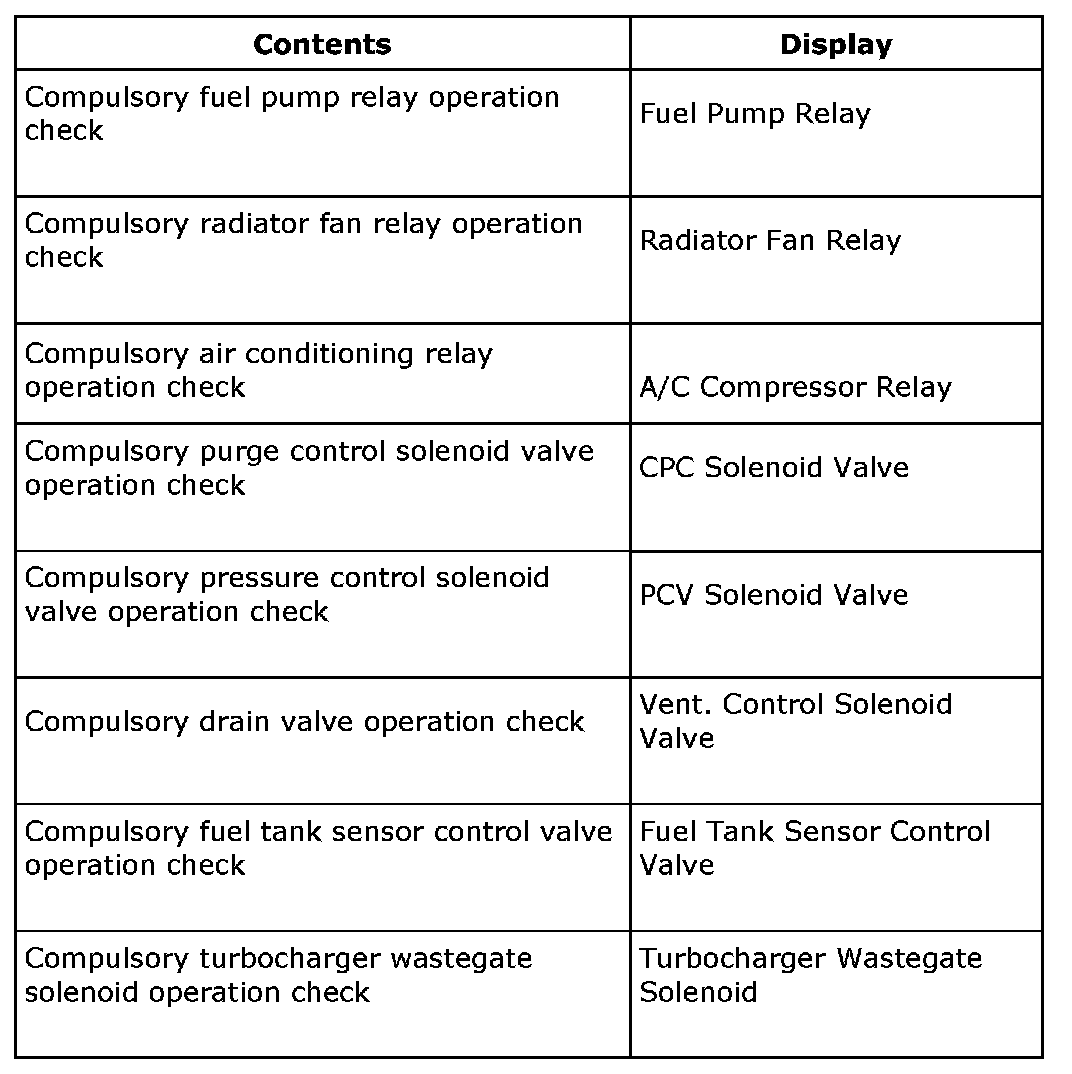

- A list of support data is shown in the following table.

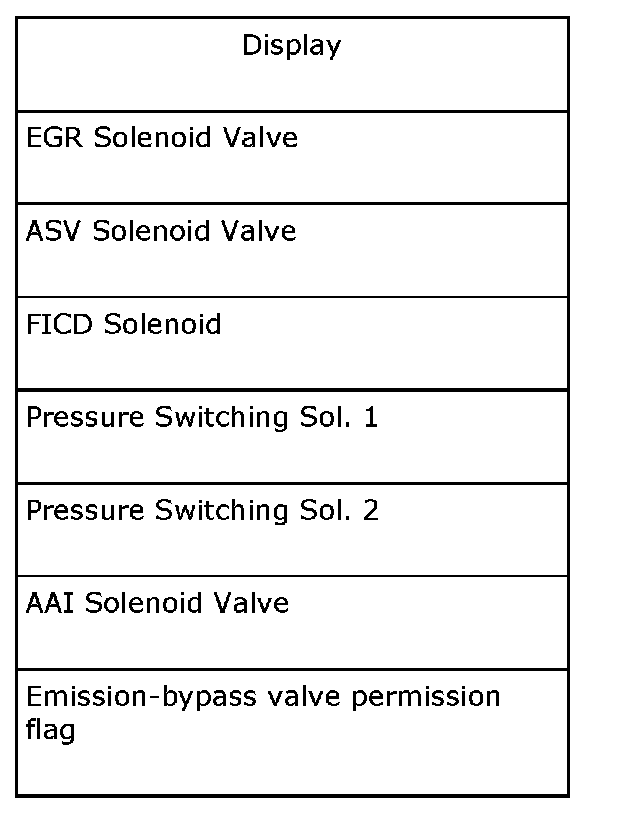

NOTE:
- The following parts will be displayed but not functional they are not installed on the vehicle..







- For detailed operation procedure, refer to Manufacturer's scan tool OPERATION MANUAL.
