Home >> Saab >> 2005 >> 9-2X F4-2.0L Turbo >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Locations

Computers and Control Systems: Locations

ENGINE

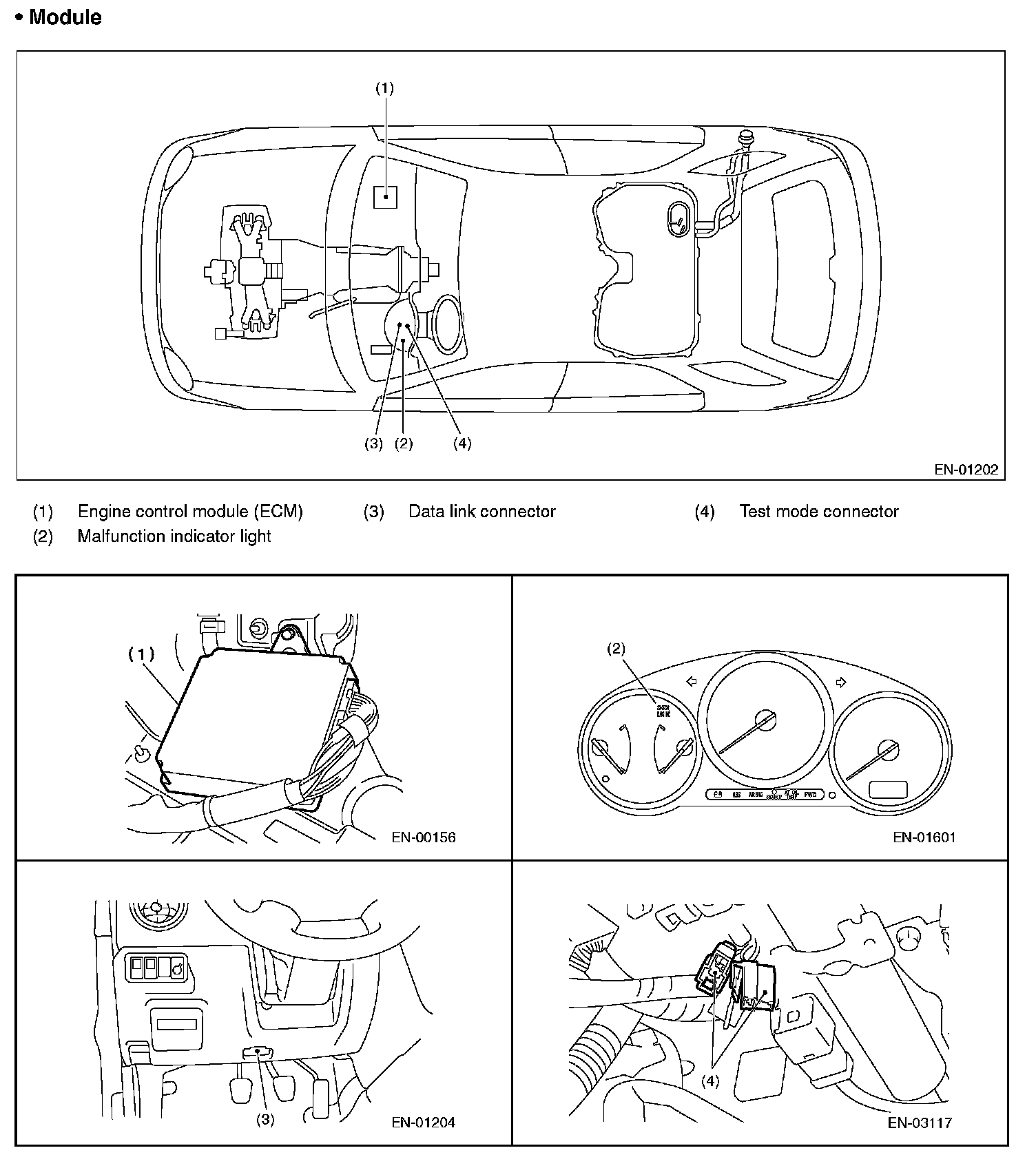

Module

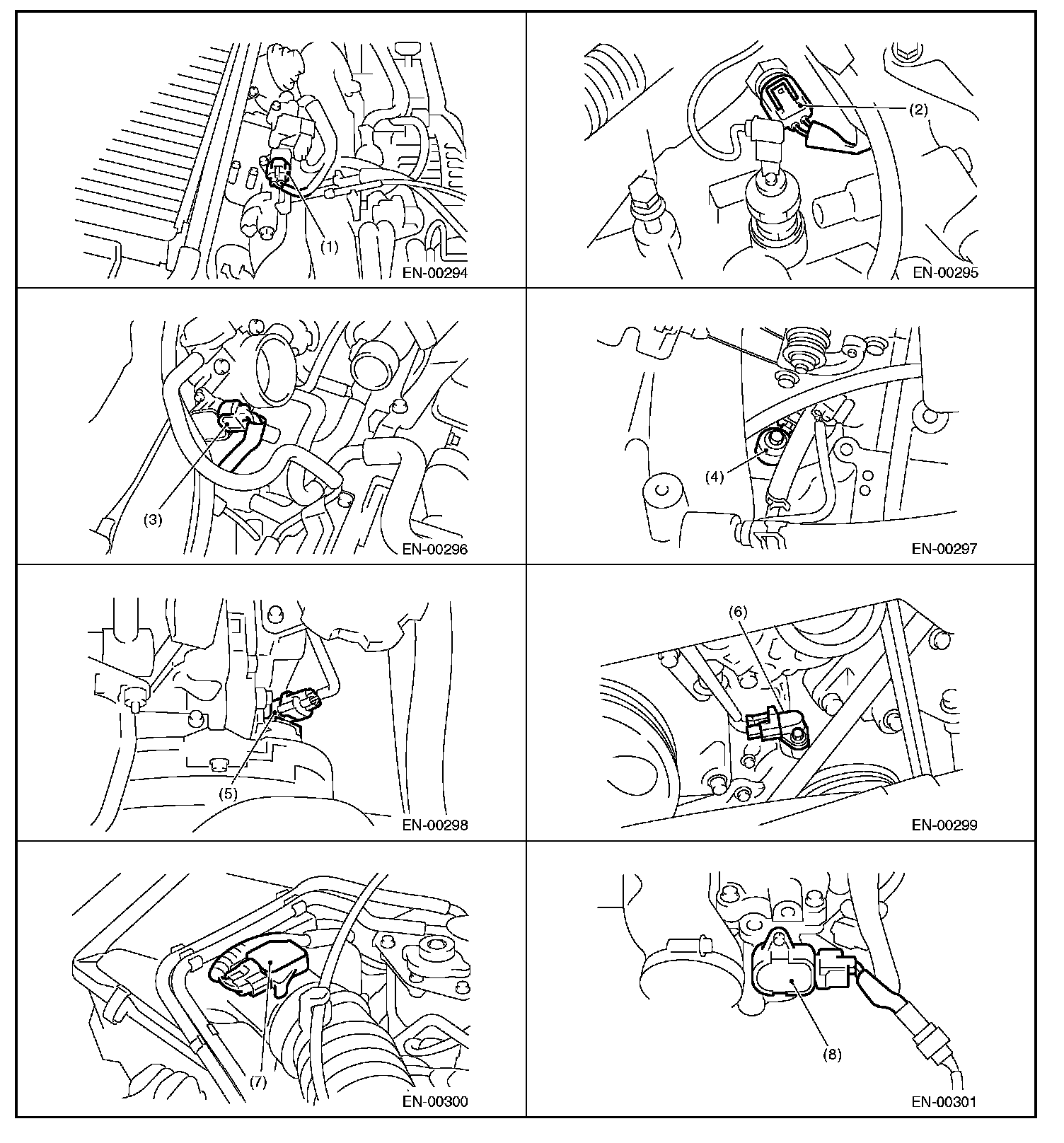

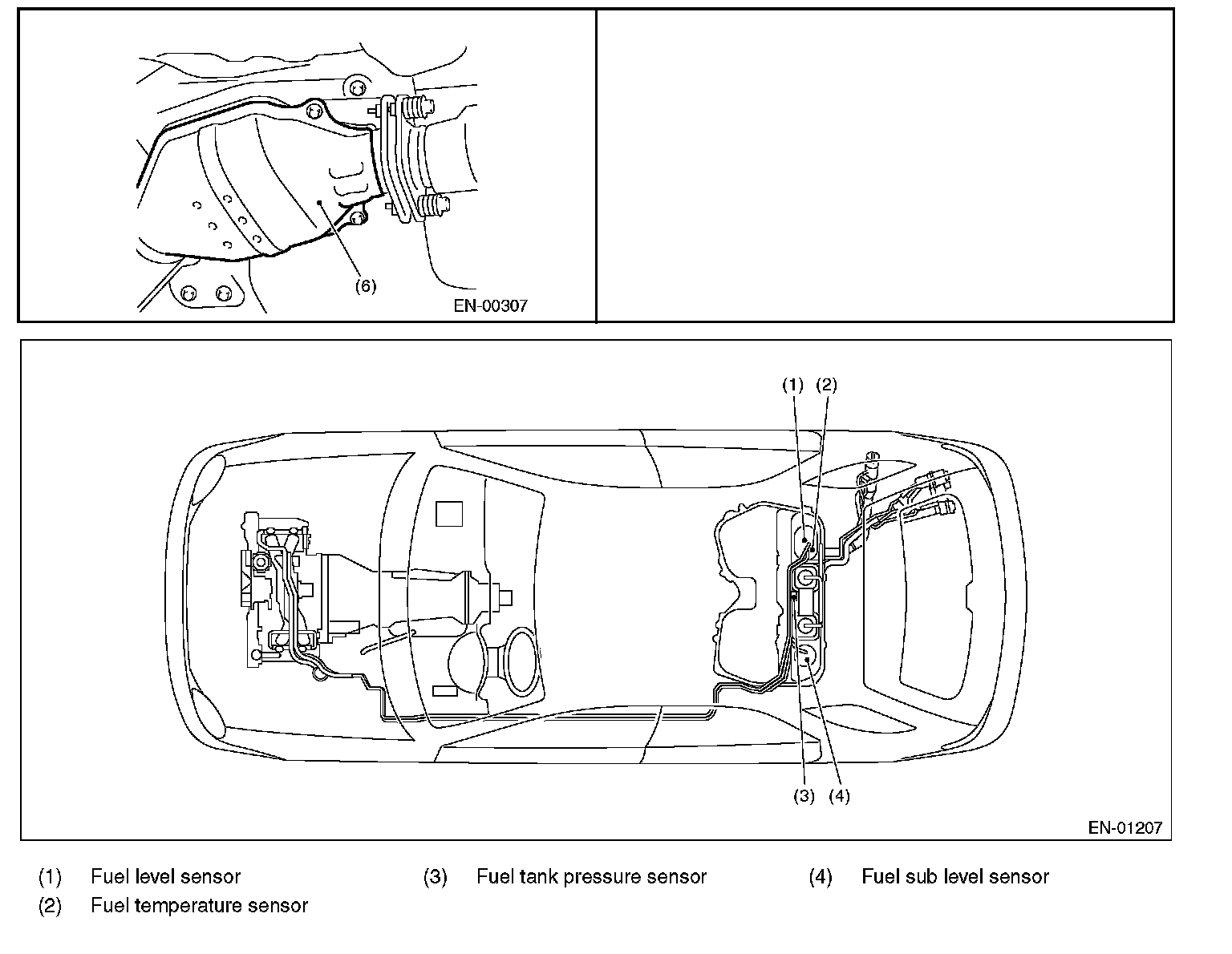

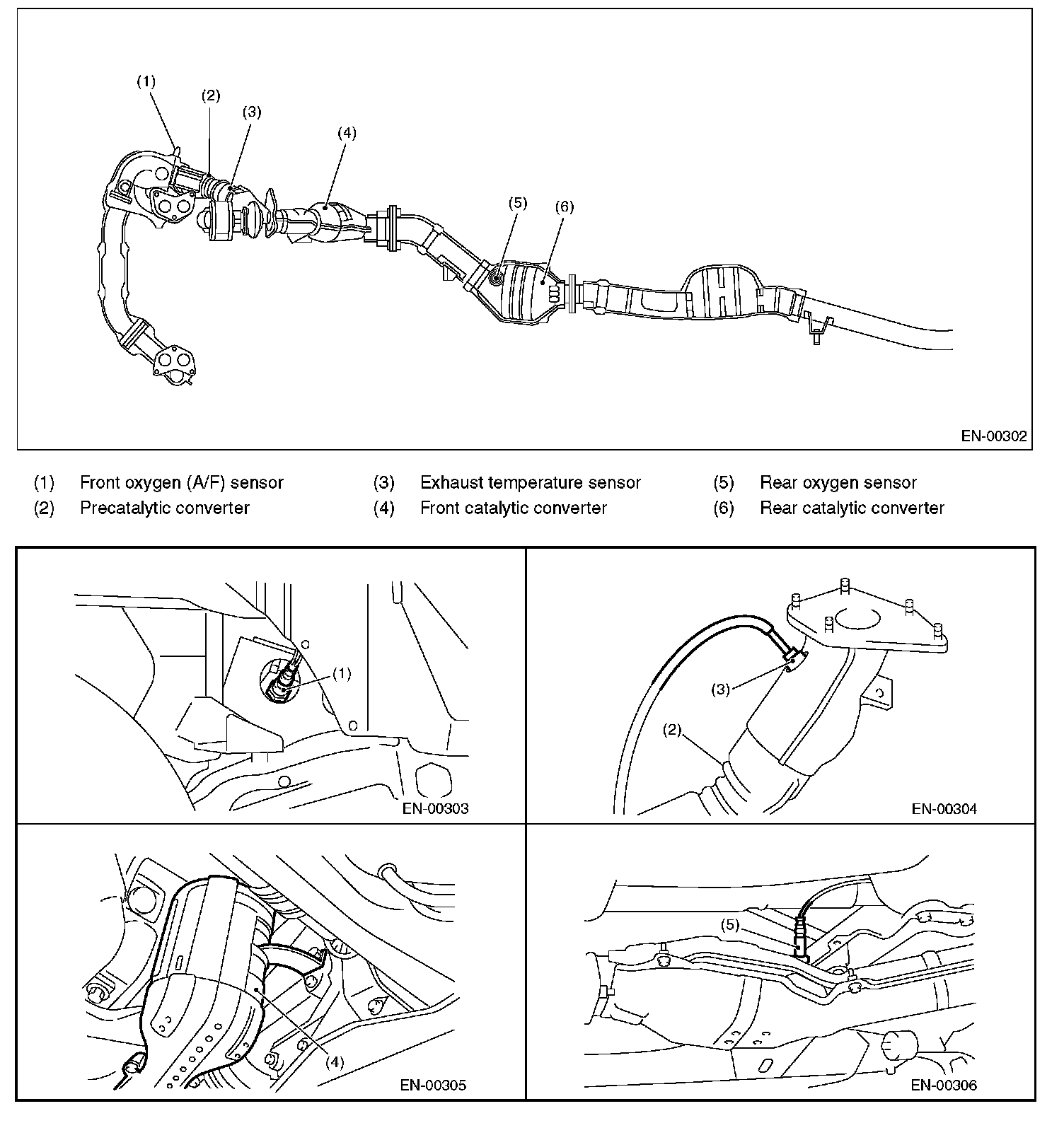

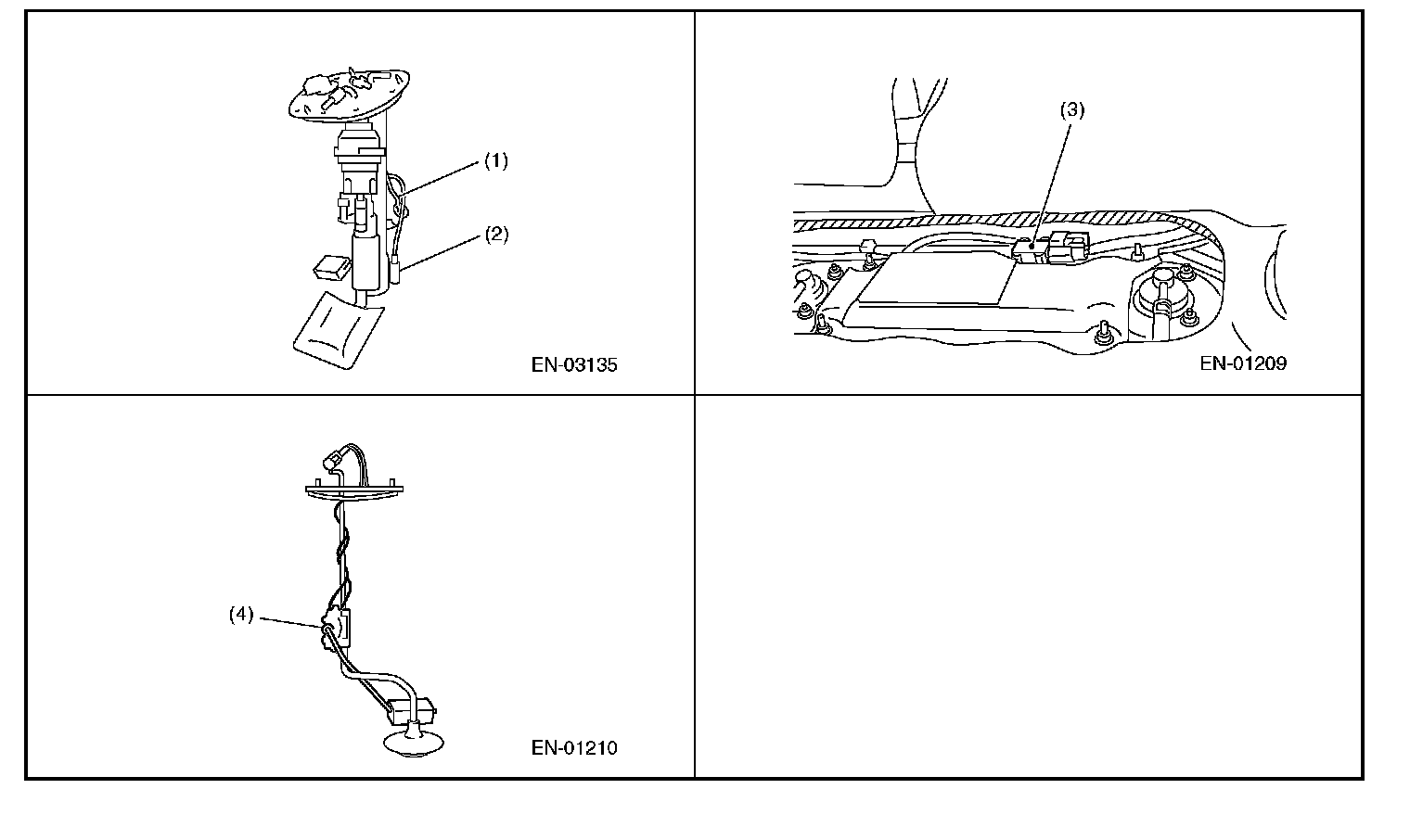

Sensor

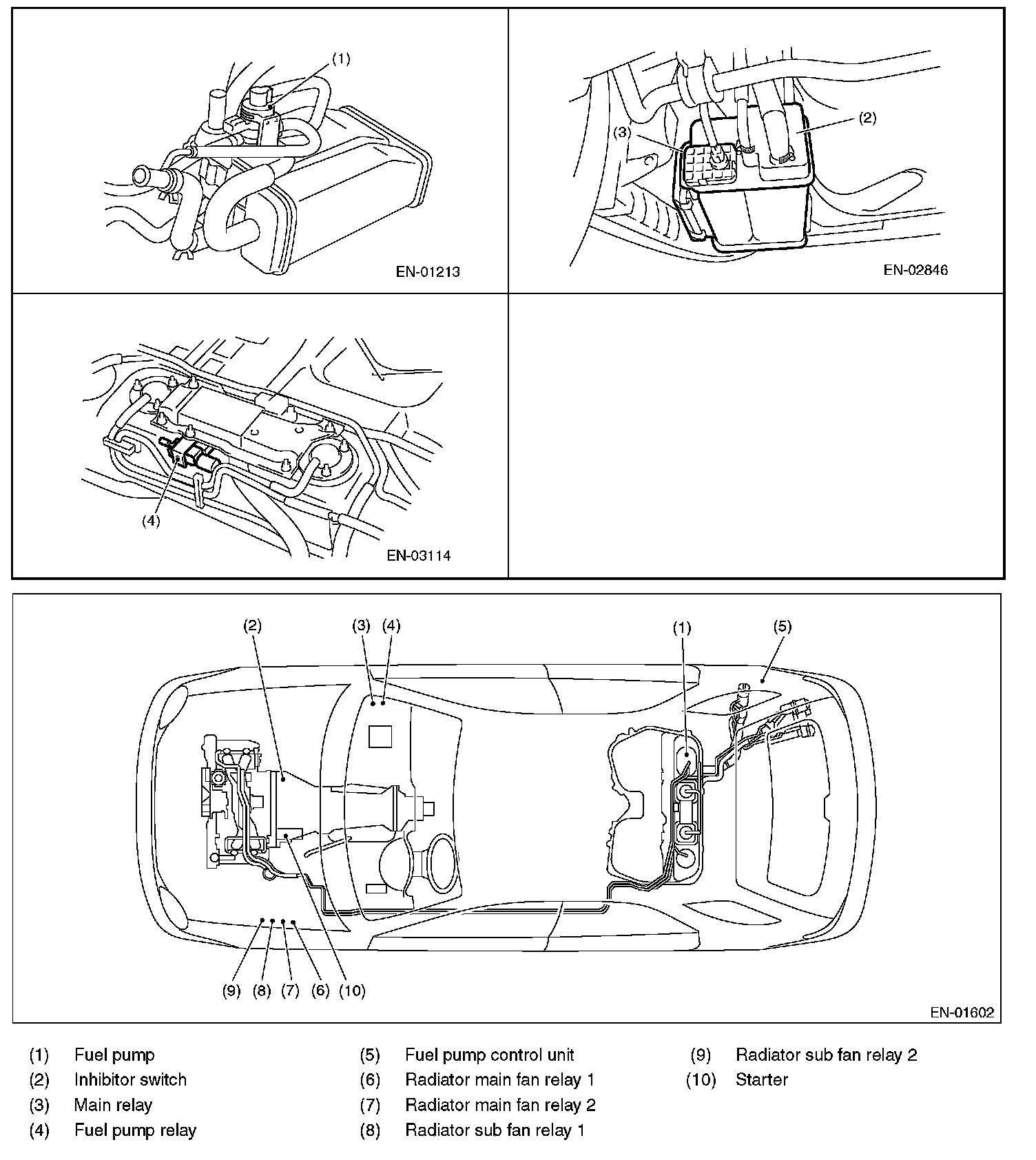

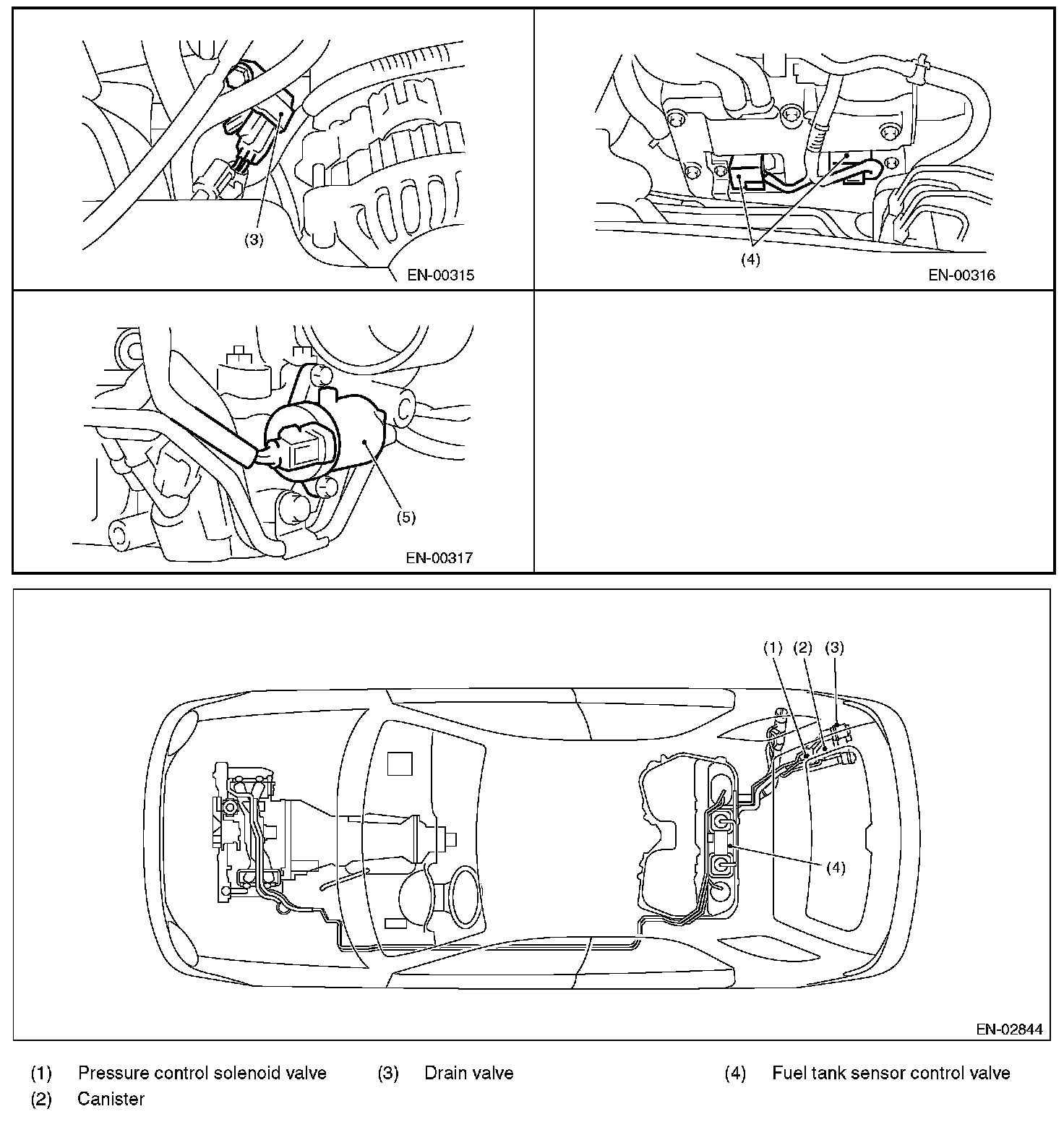

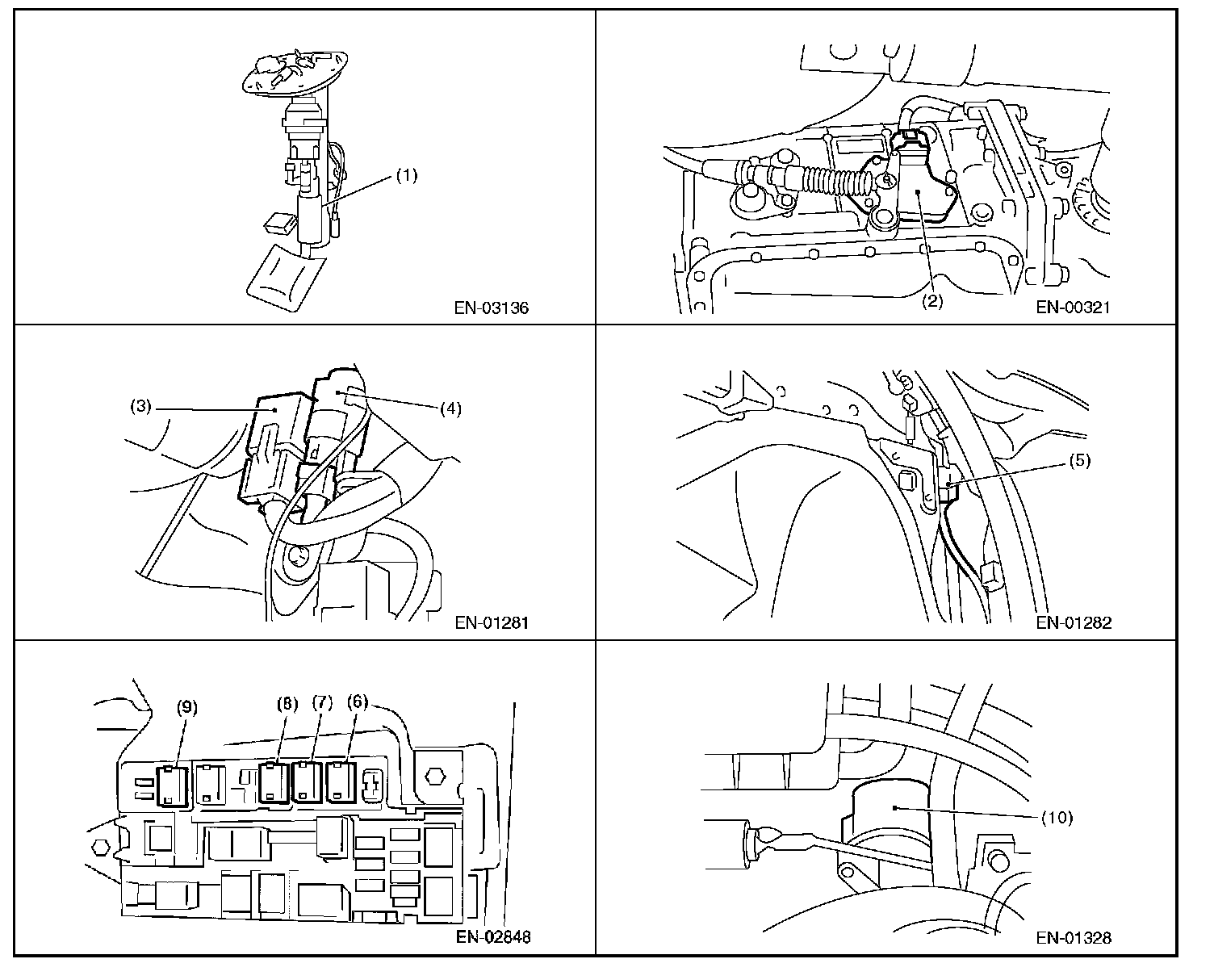

Solenoid Valve, Actuator, Emission Control System Parts and Ignition System Parts
