Removal and Replacement

REMOVAL
Apply parking brake, and position the select lever to "P" or "LOW".
Set jacks or a lift to the specified point, and support the vehicle with its tires slightly contacting the floor.
Loosen the wheel nuts.
Raise the vehicle until its tires take off the ground using a jack or a lift.
Remove the wheel nuts and wheels.

Note:
^ While removing the wheels, prevent the hub bolts from damage.
^ Place the wheels with their outer sides facing upward to prevent the wheels from damage.

INSTALLATION
Remove dirt from the mating surface of wheel and brake rotor.
Attach the wheel to hub by aligning the wheel bolt hole with hub bolt.
Temporarily attach the wheel nuts to hub bolts.
Manually tighten the nuts making sure the wheel hub hole is aligned correctly to guide portion of hub.
Tighten the wheel nuts in a diagonal selection to specified torque. Use a wheel nut wrench.
Wheel nut tightening torque: 90 Nm (9.1 kgf-m, 65.7 ft. lbs.)

Important:
^ Tighten the wheel nuts in two or three steps by gradually increasing the torque and working diagonally, until the specified torque is reached.
^ Do not depress the wrench with foot; Always use both hands when tightening.
^ Make sure the bolt, nut and nut seating surface of the wheel are free from oils.
If a wheel is removed for replacement or for repair of a puncture, retighten the wheel nuts to the specified torque after running 1,000 km (600 miles).

INSPECTION
Deformation or damage on the rim can cause air leakage. Check the rim flange for deformation, crack or damage, and repair or replace as necessary.
Jack-up the vehicle until tires clear the floor.
Slowly rotate the wheel to check the rim "runout" using a dial gauge.

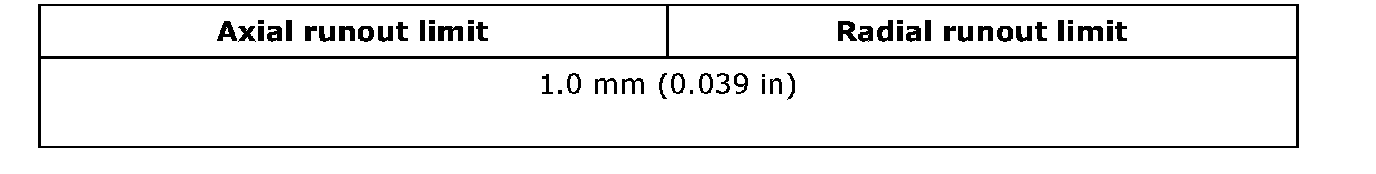

If the rim runout exceeds specifications, remove the tire from rim and check runout while attaching the dial gauge to positions shown in the figure.







(1) Approximately 7 mm (0.28 inch)

If the measured runout still exceeds specifications, replace the wheel.
