Home >> Saab >> 2005 >> 9-2X F4-2.0L Turbo >> Repair and Diagnosis >> Heating and Air Conditioning >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> HVAC Manual >> General Diagnostics

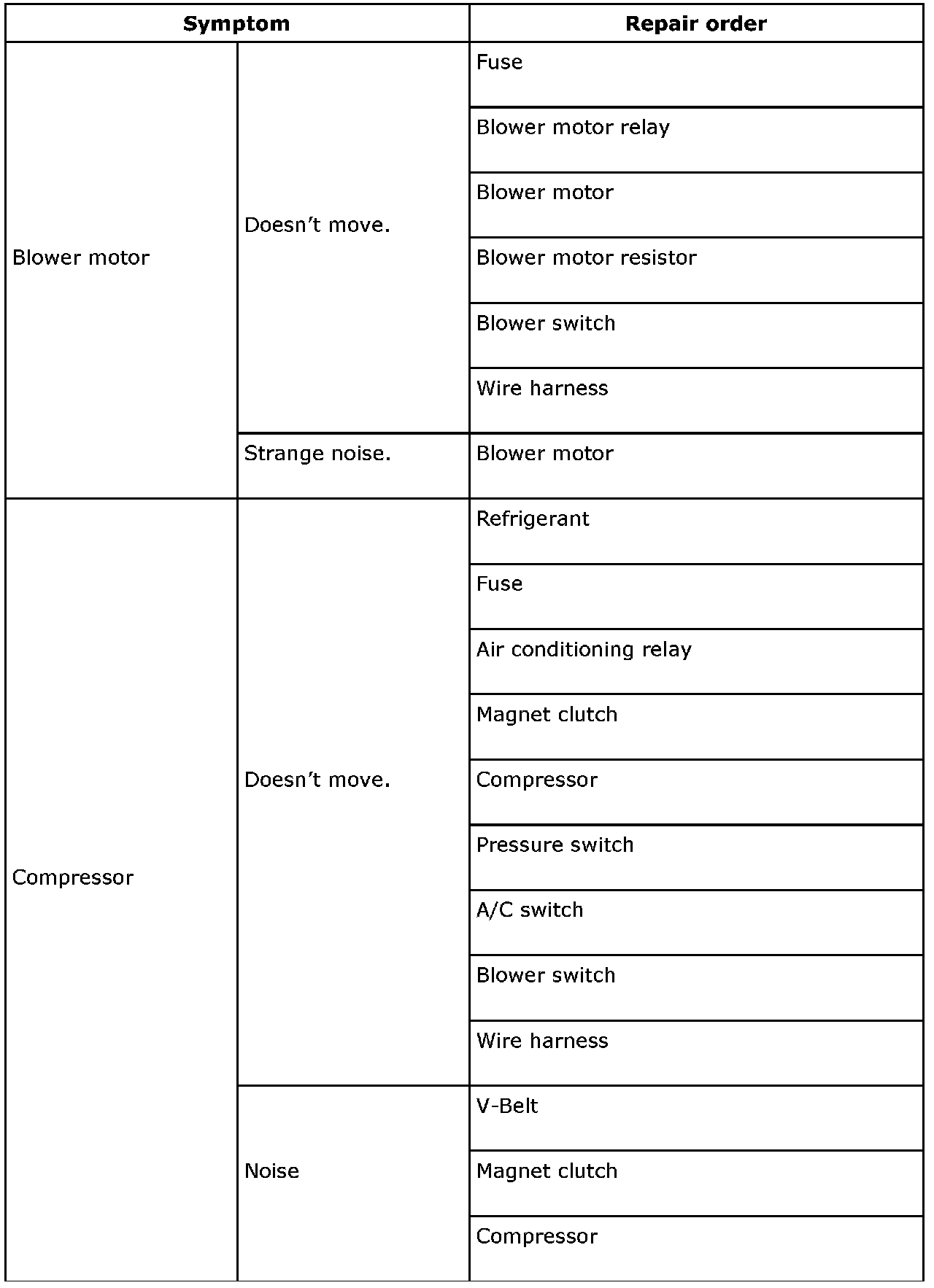

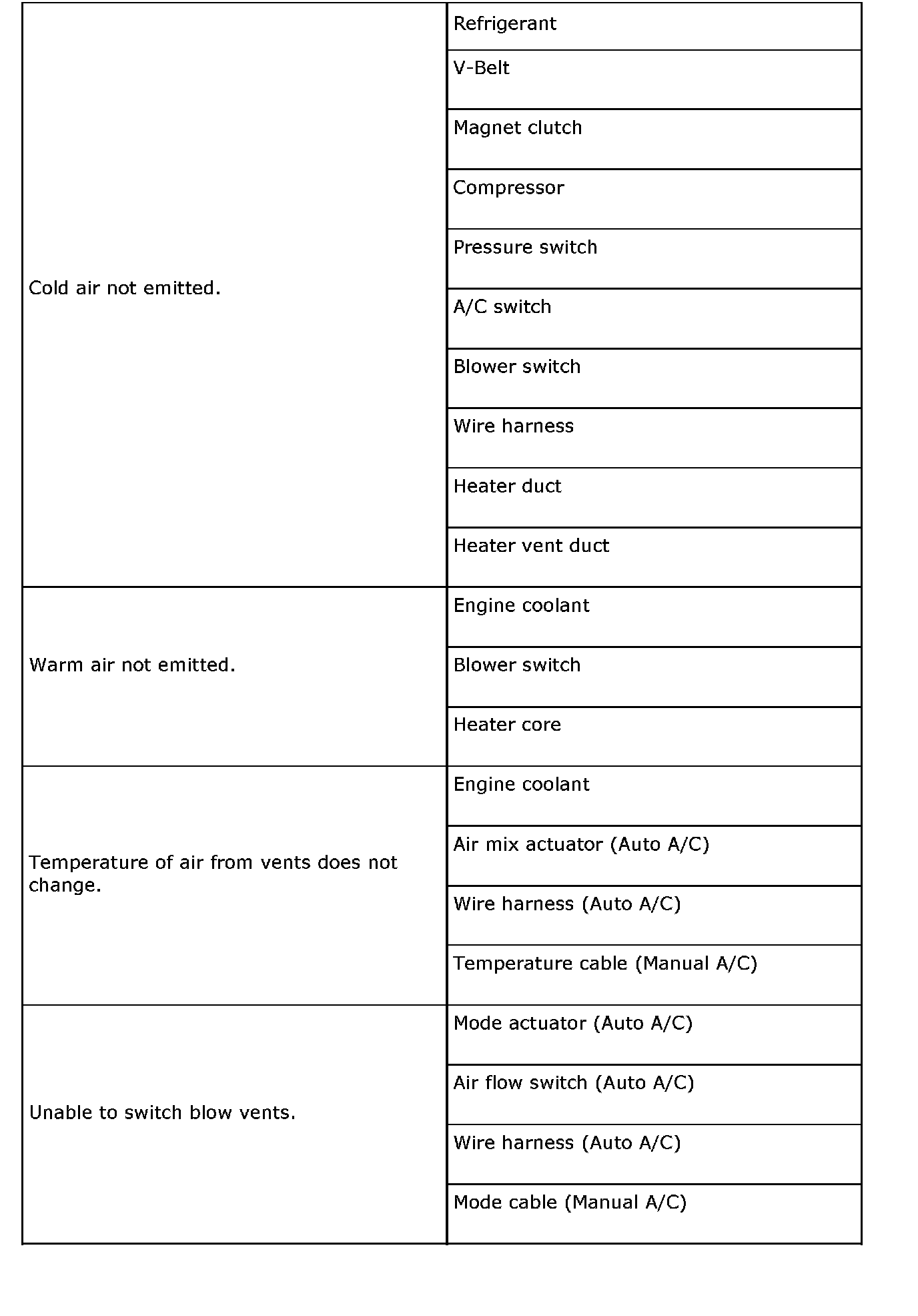

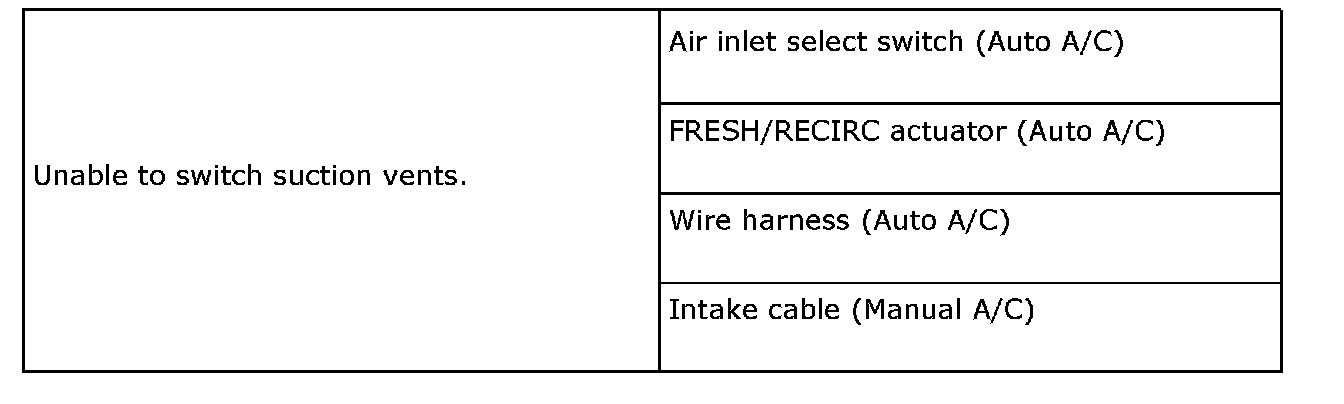

General Diagnostics

Part 1:



Part 2:



Part 3:
