Self-Diagnosis Systems Do Not Operate



A/C Or Self-diagnosis Systems Do Not Operate

Trouble Symptom:
- Switch LEDs are faulty and switches do not operate.
- Self-diagnosis system does not operate.

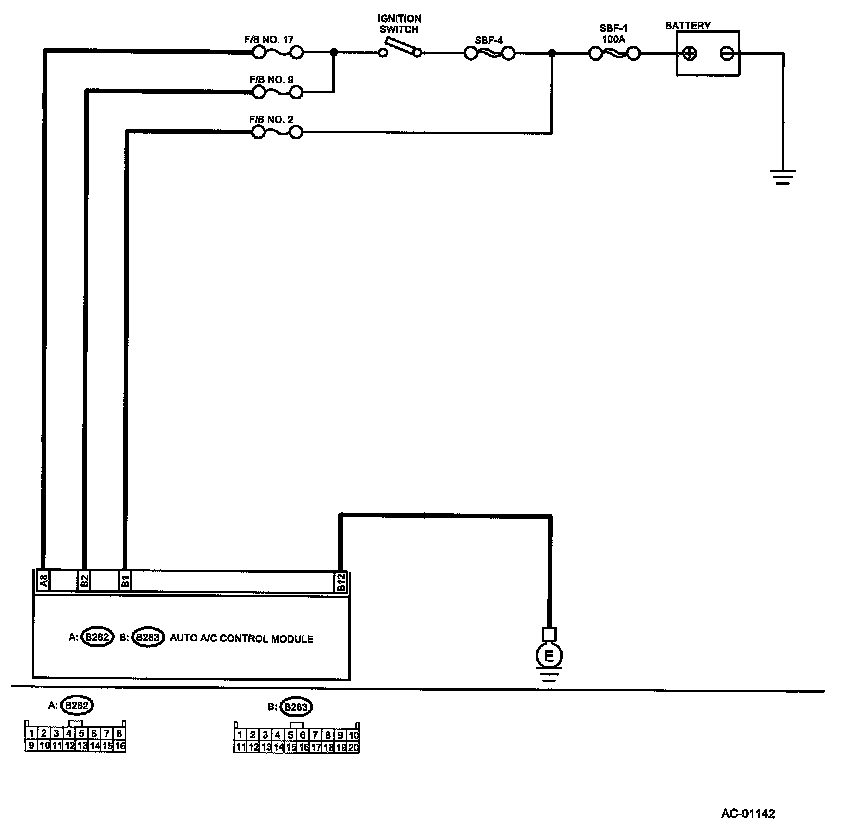

Wiring Diagram:

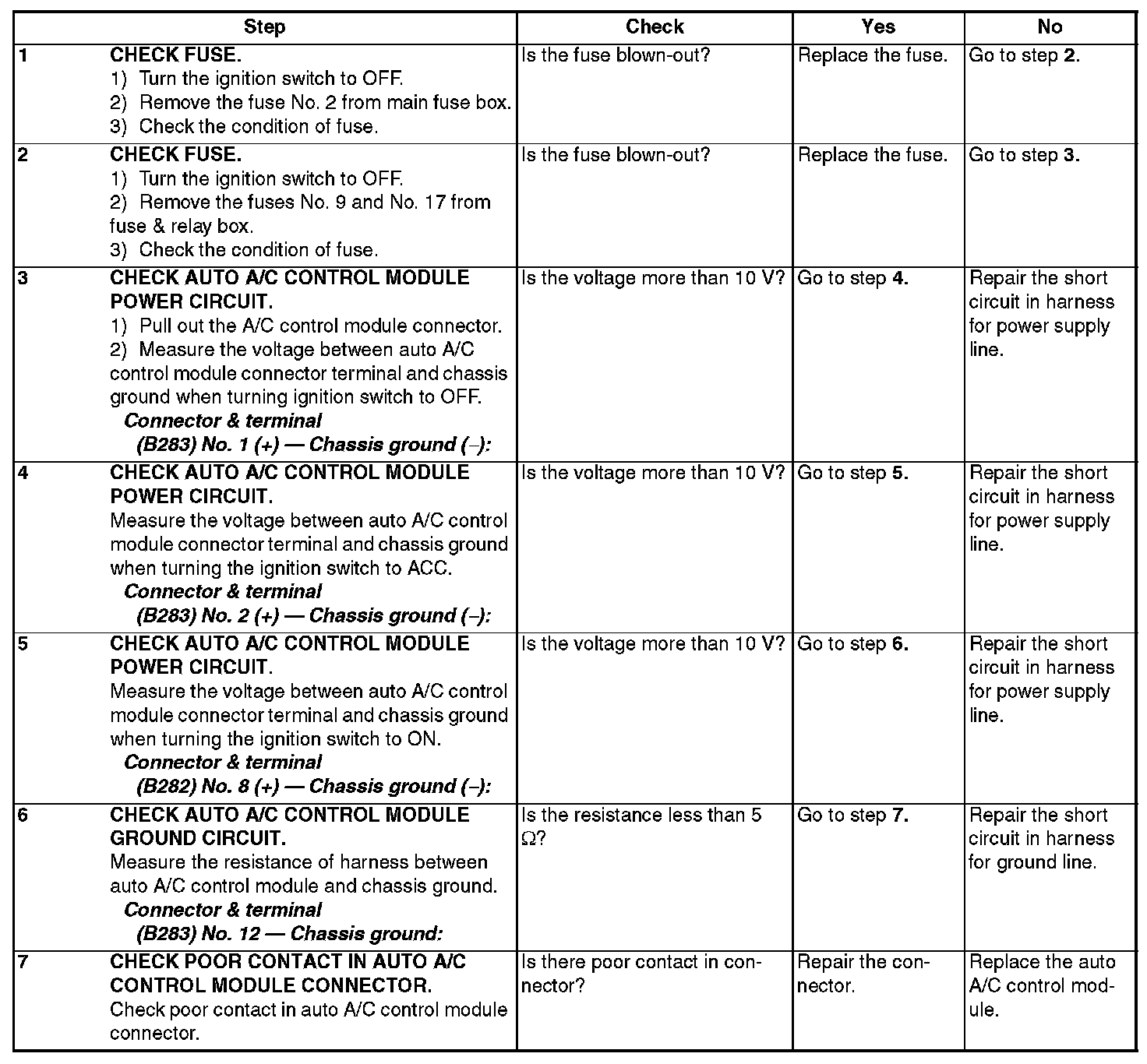

Step 1 - 7:
