HVAC Automatic



Blower Fan Does Not Rotate

Trouble Symptom
- Blower motor is not rotated.
- Blower motor speed does not change.

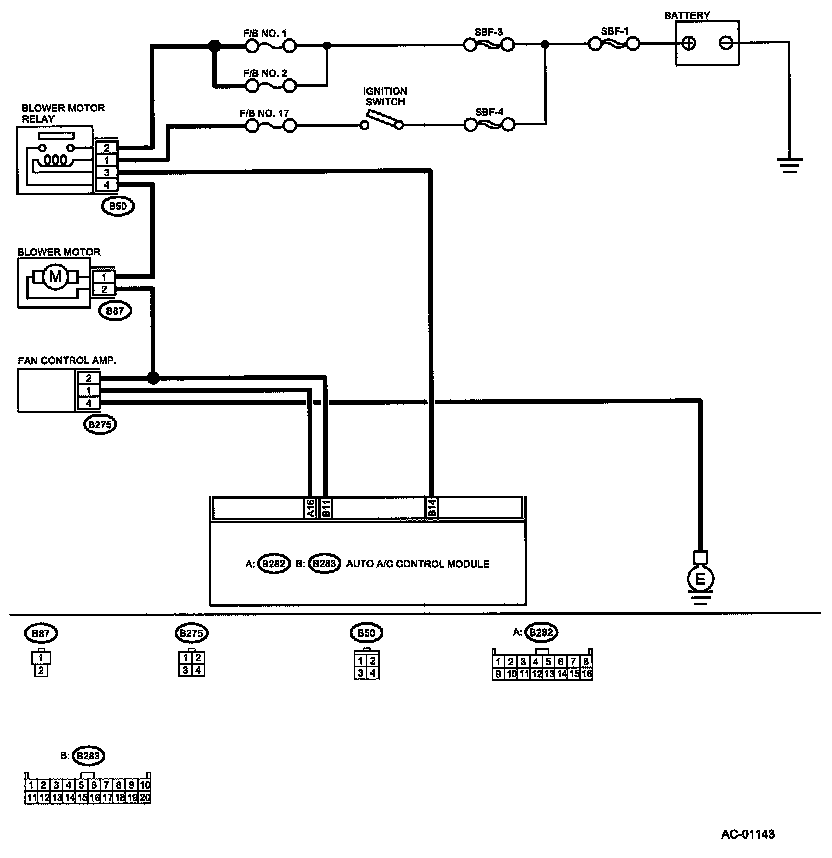

Wiring Diagram:

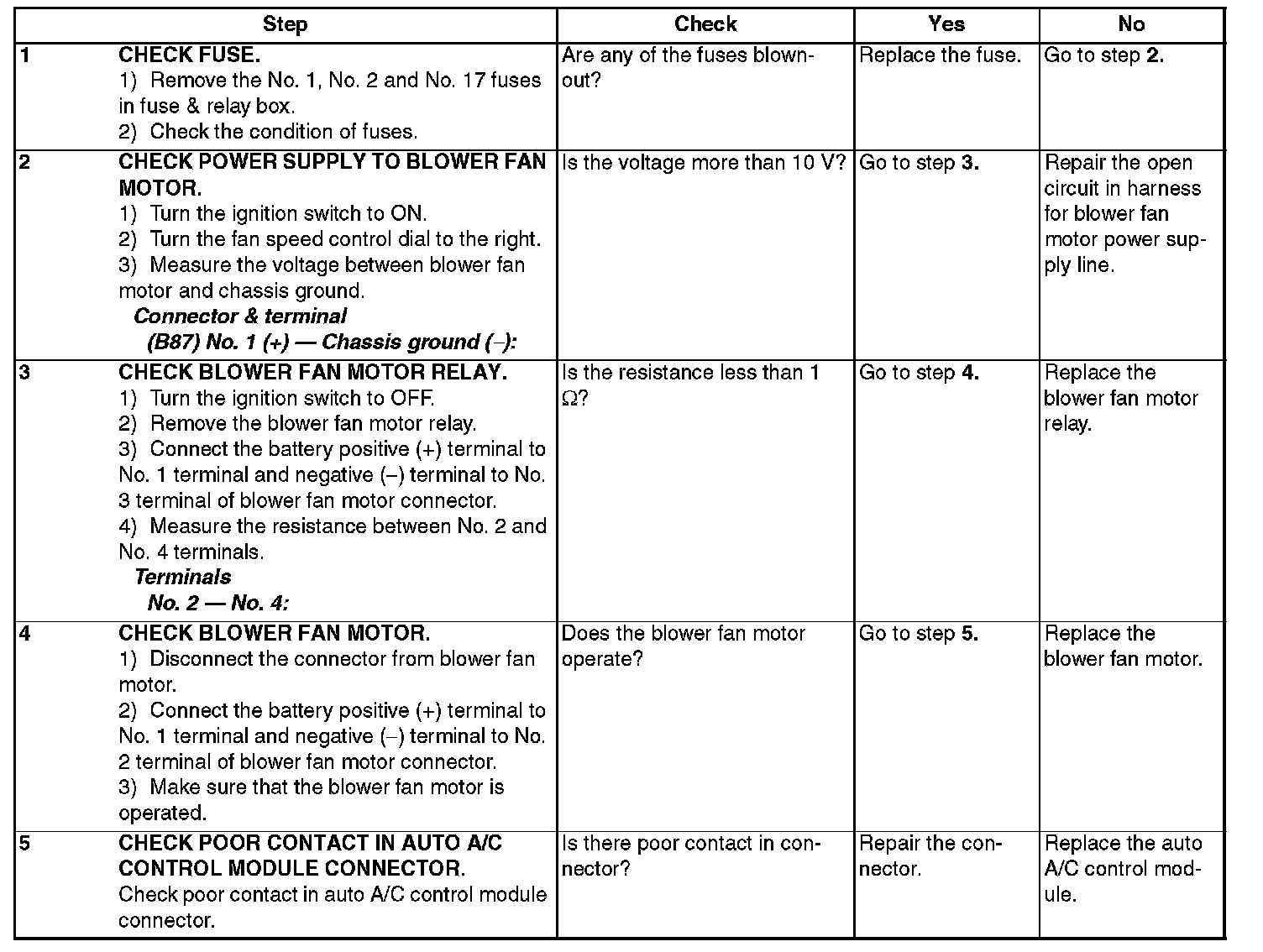

Step 1 - 5:
