Air Vent Grille

Air Vent Grille

Removal

Center Grille
Disconnect the ground cable from battery.
Remove the console front panel.
Remove the center console panel.

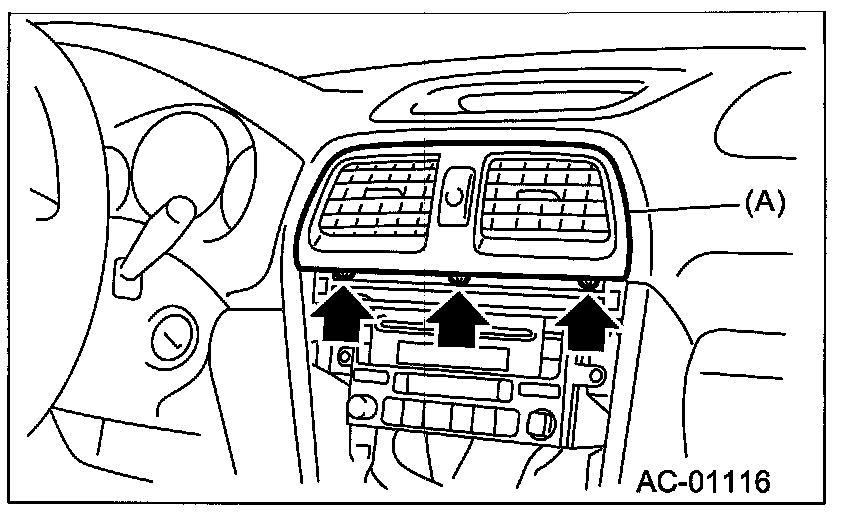

Loosen the three screws to remove the center air vent grille (A).







Side Grille
Disconnect the ground cable from battery.
Remove the heater vent duct.
Loosen the screws to remove the side air vent grille.







Installation
Install in the reverse order of removal.
