V-Belt
V-BeltRemoval
NOTE: Perform the following procedures with the engine installed to the body.

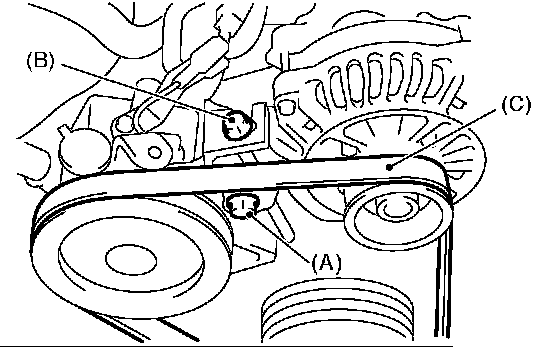

FRONT SIDE BELT
1. Loosen the lock bolt (A).
2. Loosen the slider bolt (B).
3. Remove the front side belt (C).

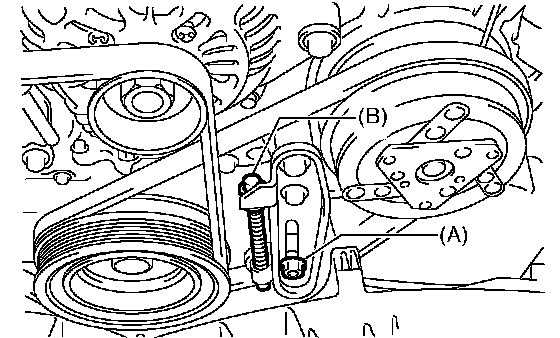

REAR SIDE BELT
1. Loosen the lock nut (A).
2. Loosen the slider bolt (B).
3. Remove the A/C belt.

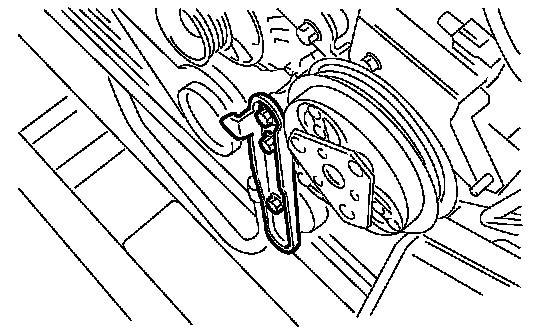

4. Remove the A/C belt tensioner.
Installation
FRONT SIDE BELT
NOTE: Wipe off any oil or water on the belt and pulley.
1. Install the V-belt (c), and tighten the slider bolt so as to obtain the specified belt tension.
2. Tighten the lock bolt (A).
3. Tighten the slider bolt (13).

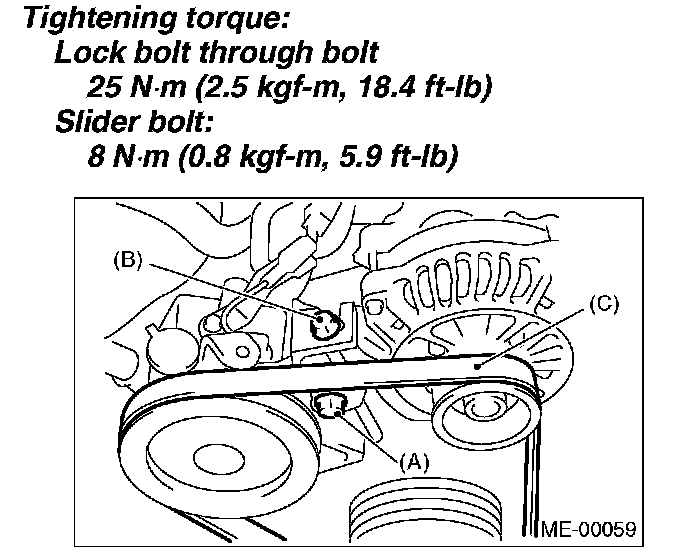

Tightening torque:
Lock bolt through bolt 25 Nm (2.5 kgf-m, 18.4 ft. lbs.)
Slider bolt: 8 Nm (0.8 kgf-m, 5.9 ft. lbs.)
REAR SIDE BELT
1. Install the belt, and tighten the slider bolt (B) so as to obtain the specified belt tension.
2. Tighten the lock nut (A).

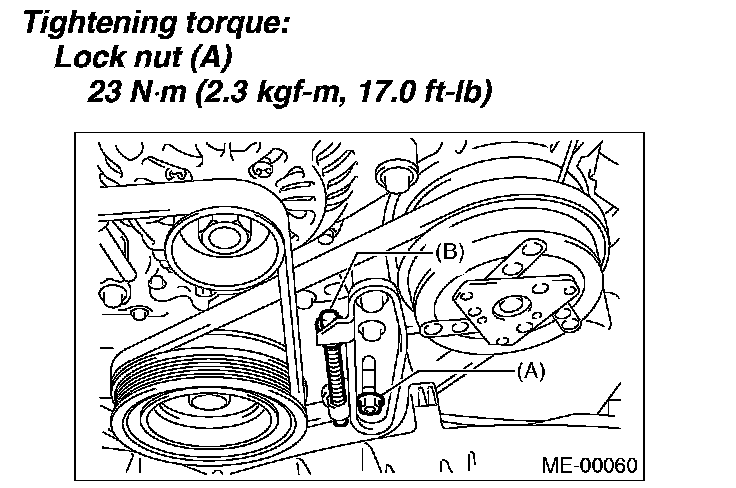

Tightening torque:
Lock nut (A) 23 Nm (2.3 kgf-m, 17.0 ft. lbs.)
Inspection
1. Replace the belts, if cracks, fraying or wear is found.
2. Check the V-belt tension and adjust it if necessary by changing generator installing position and idler pulley installing position.

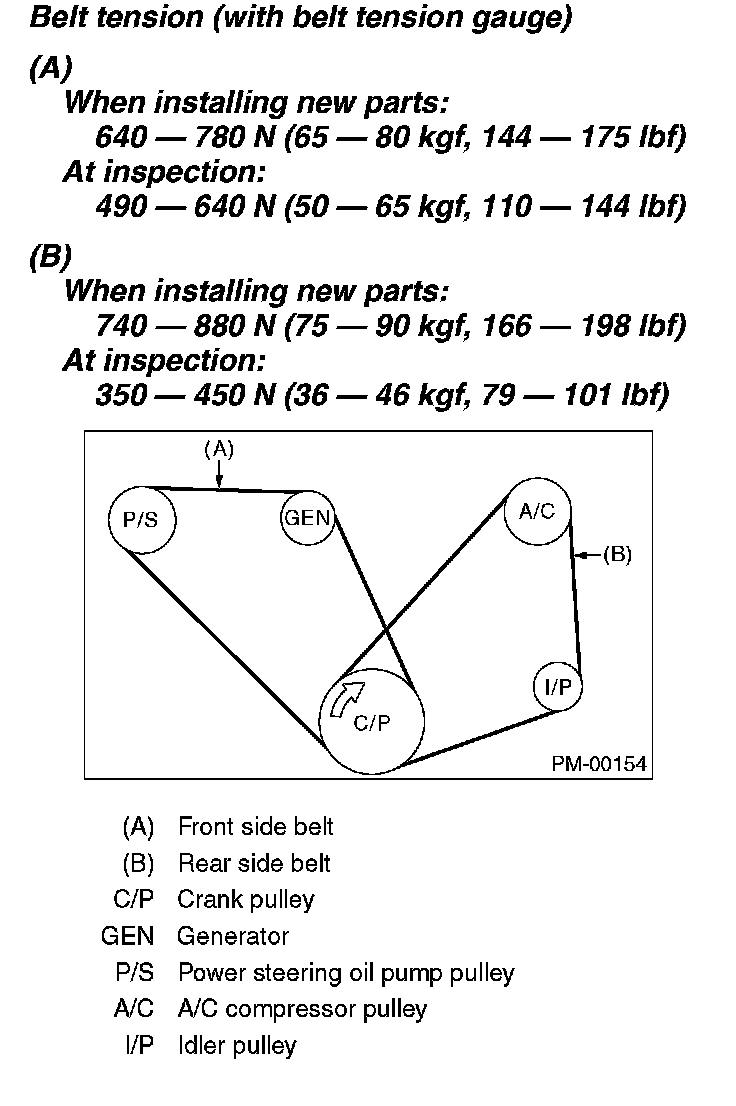

Belt tension (with belt tension gauge)
(A)
When installing new parts: 640 - 780 Nm (65 - 80 kgf, 144 - 175 ft. lbs.)
At inspection: 490 - 640 Nm (50 - 65 kgf, 110 - 144 ft. lbs.)
(B)
When installing new parts: 740 - 880 Nm (75 - 90 kgf, 166 - 198 ft. lbs.)
At inspection: 350 - 450 Nm (36 - 46 kgf, 79 - 101 ft. lbs.)

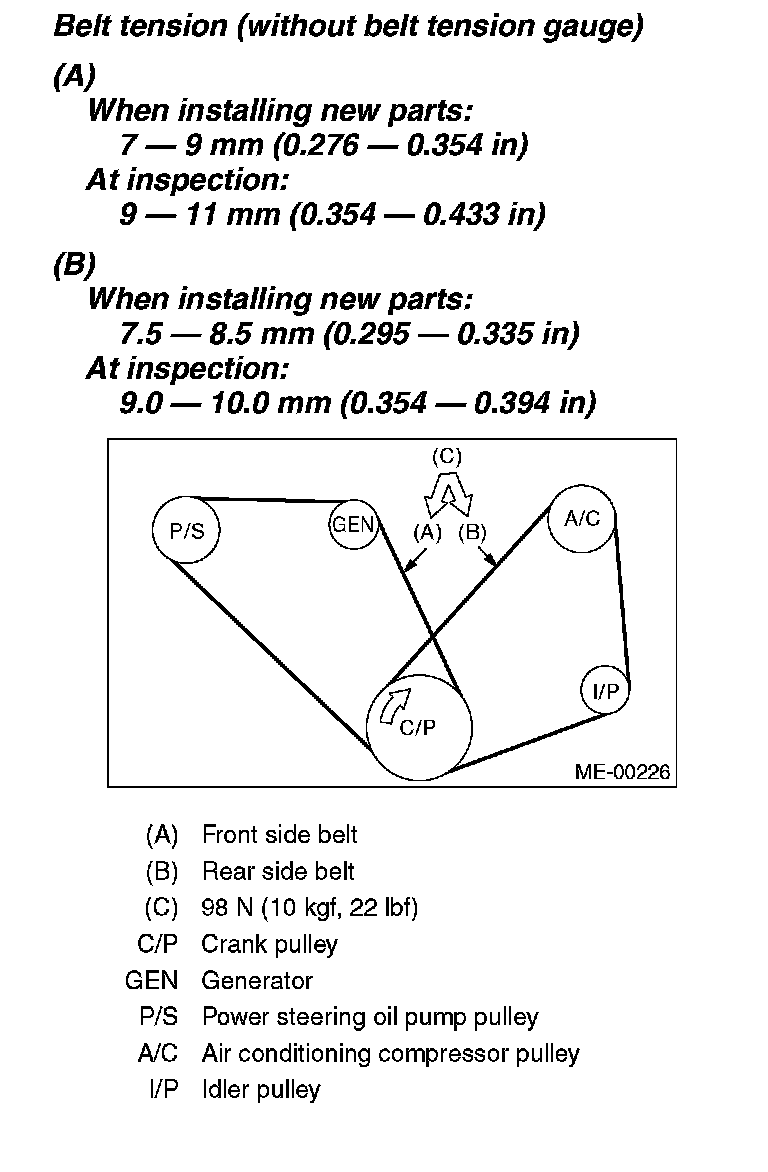

Belt tension (without belt tension gauge)
(A)
When installing new parts: 7 - 9 mm (0.276 - 0.354 inch)
At inspection: 9 - 11 mm (0.354 - 0.433 inch)
(B)
When installing new parts: 7.5 - 8.5 mm (0.295 - 0.335 inch)
At inspection: 9.0 - 10.0 mm (0.354 - 0.394 inch)
