Cam Sprocket

Cam Sprocket

Removal
1. Remove the V-belt.
2. Remove the crank pulley.
3. Remove the timing belt cover.
4. Remove the timing belt.

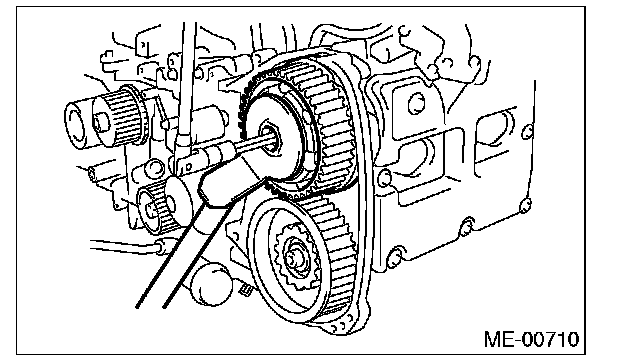

5. Remove the cam sprockets. To lock the camshaft, use ST.
ST 499207400 CAM SPROCKET WRENCH

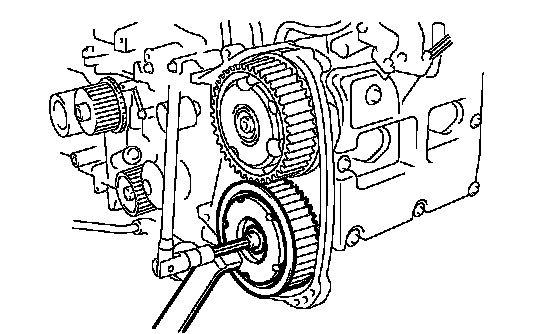

ST 499977500 CAM SPROCKET WRENCH





Installation

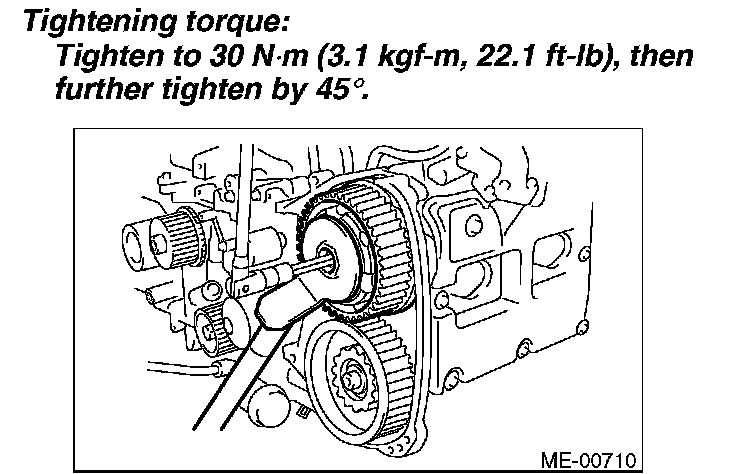

1. Install the cam sprocket. To lock the camshaft, use ST.
ST 499207400 CAM SPROCKET WRENCH
Tightening torque: Tighten to 30 Nm (3.1 kgf-m, 22.1 ft. lbs.), then further tighten by 45°

NOTE: Do not confuse the cam sprockets (RH) and (LH) intake side during installation.

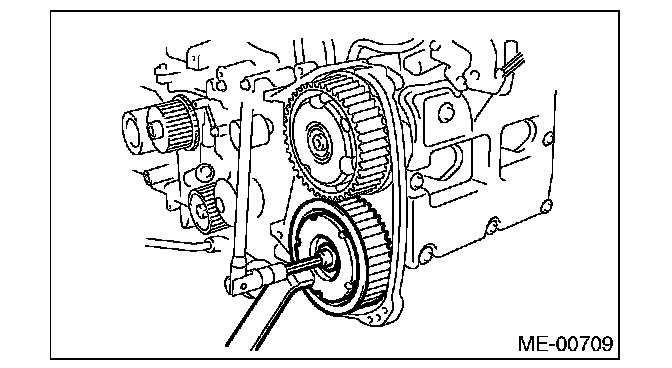

ST 499977500 CAM SPROCKET WRENCH
Tightening torque: Tighten to 30 Nm (3.1 kgf-m, 22.1 ft. lbs.), then further tighten by 45°





2. Install the timing belt.
3. Install the timing belt cover.
4. Install the crank pulley.
5. Install the V-belt.

Inspection
1. Check the cam sprocket teeth for abnormal wear and scratches.
2. Make sure there is no free play between cam sprocket and key.
