Radiator Sub Fan

Radiator Sub Fan And Fan Motor

Removal
1. Set the vehicle on a lift.

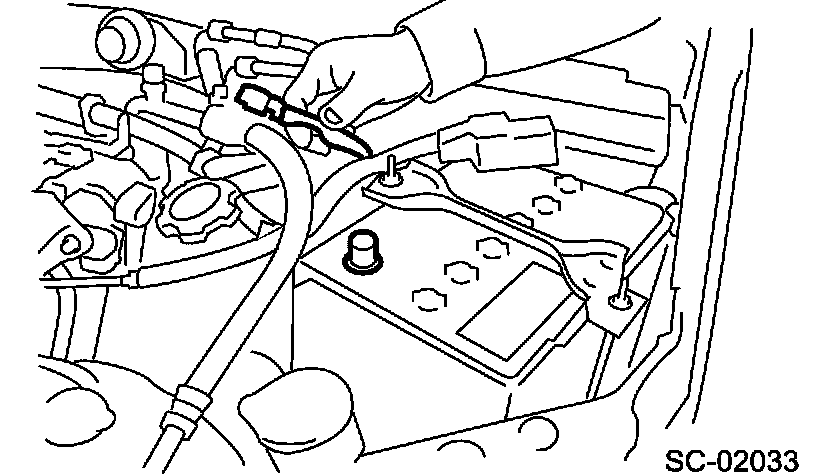

2. Disconnect the ground cable from battery.





3. Lift-up the vehicle.
4. Remove the under cover.

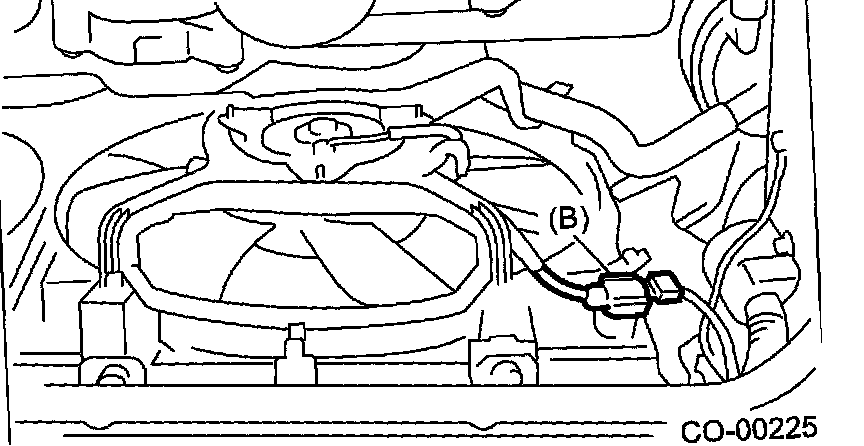

5. Disconnect the connector of sub fan motor (B).





6. Remove the ATF hose from clips of radiator sub fan motor assembly. (AT model)
7. Lower the vehicle.
8. Remove the air intake duct.

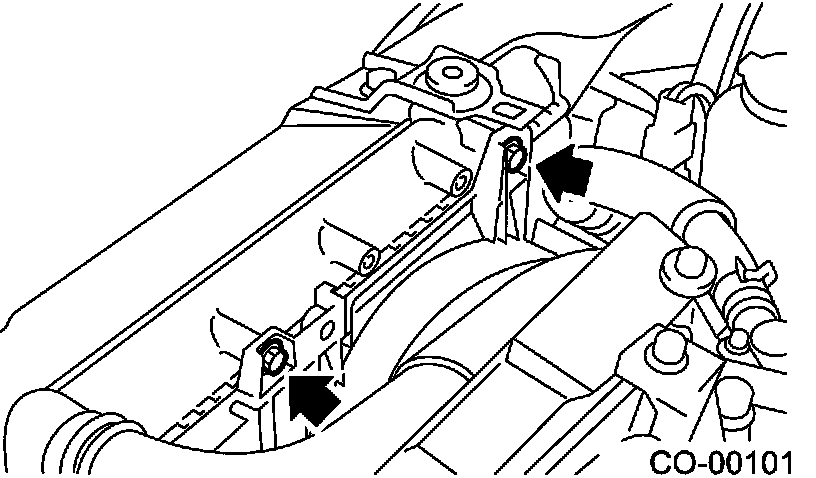

9. Remove the bolts which hold the radiator sub fan shroud to radiator.





10. Remove the radiator sub fan motor assembly through the under side of vehicle.

Installation
1. Install in the reverse order of removal.


Disassembly
1. Remove the clip which holds the motor connector onto shroud.

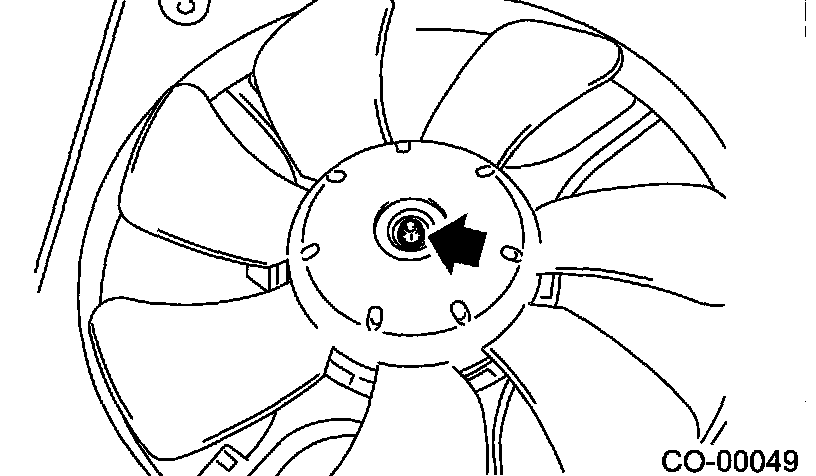

2. Remove the nut which holds the fan itself onto fan motor.

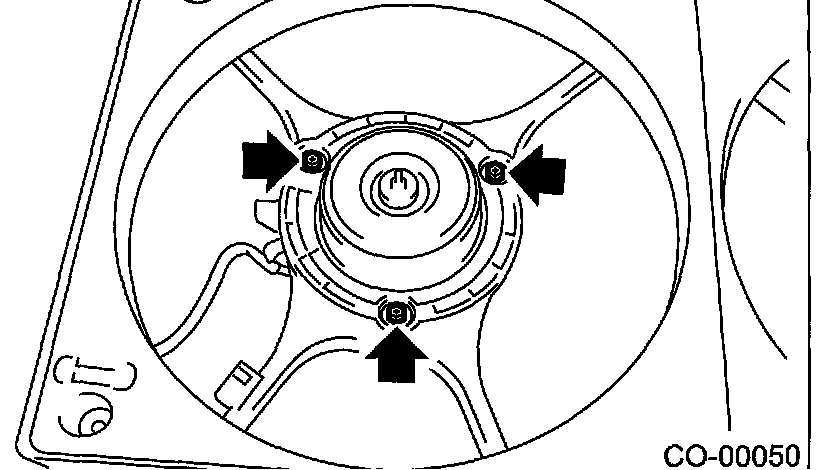

3. Remove the bolts which install the fan motor onto shroud.





Assembly
1. Assemble in the reverse order of disassembly.
