Radiator Main Fan

Radiator Main Fan And Fan Motor

Removal
1. Set the vehicle on a lift.

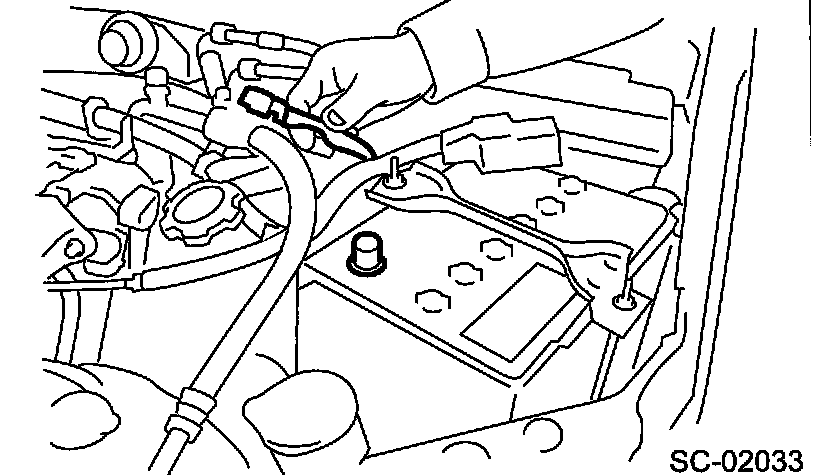

2. Disconnect the ground cable from battery.





3. Lift-up the vehicle.
4. Remove the under cover.

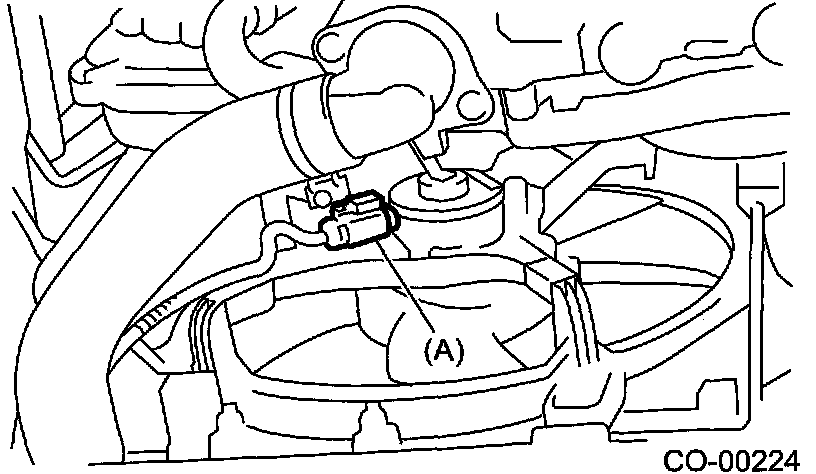

5. Disconnect the connector of main fan motor (A).





6. Remove the ATF hose from clip of radiator main fan motor assembly. (AT model)
7. Lower the vehicle.
8. Disconnect the overflow hose.
9. Remove the reservoir tank.

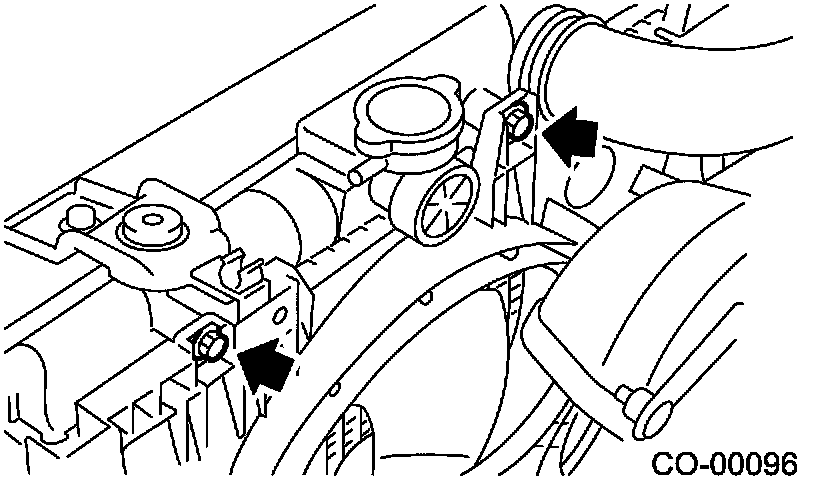

10. Remove the bolts which secure the radiator main fan shroud to radiator.





11. Remove the radiator fan motor assembly.

Installation
1. Install in the reverse order of removal.

NOTE:
^ If it is difficult to install the radiator main fan motor assembly, first loosen the bolts which hold the radiator sub fan motor assembly.

Disassembly

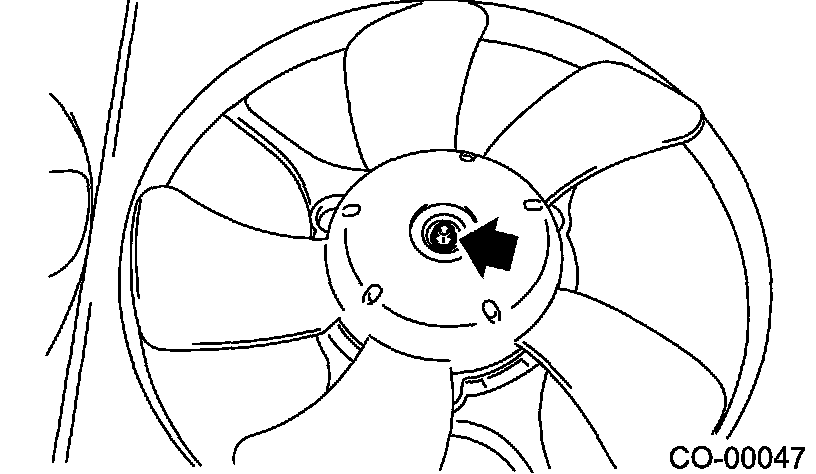

1. Remove the nut which holds the fan itself onto fan motor and shroud assembly.

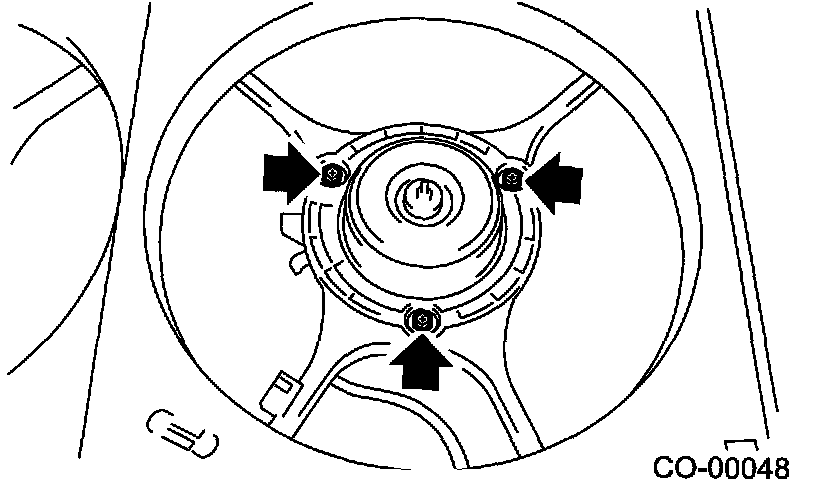

2. Remove the bolts which install the fan motor.





Assembly
1. Assemble in the reverse order of disassembly.
