Coolant Reservior

Reservoir

Removal
1. Disconnect the overflow hose from the radiator filler neck position.

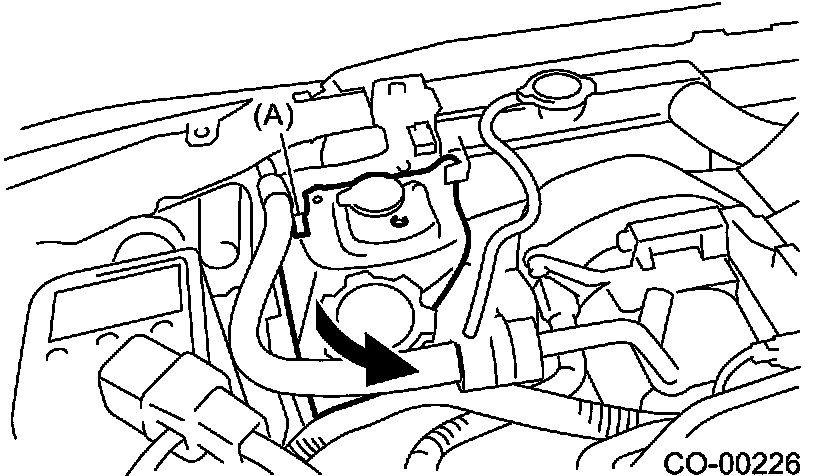

2. Pull out the reservoir tank to direction of arrow while pushing the pawl (A).





Installation
1. Install in the reverse order of removal.

Inspection
1. Make sure the engine coolant level is between full and low.
