Home
>>
Saab
>>
2005
>>
9-2X F4-2.0L Turbo
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Steering
>>
System Diagram
>>

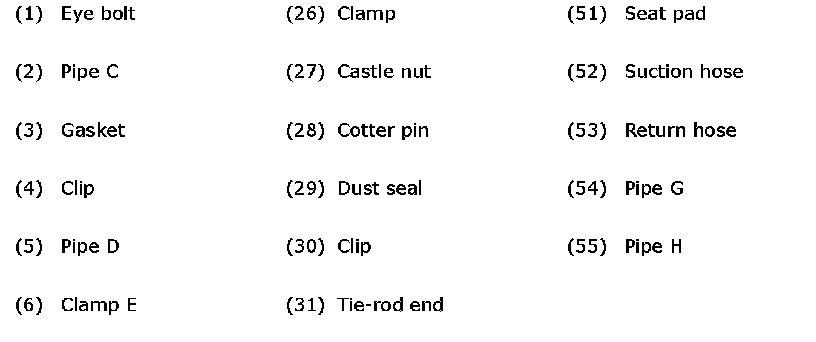

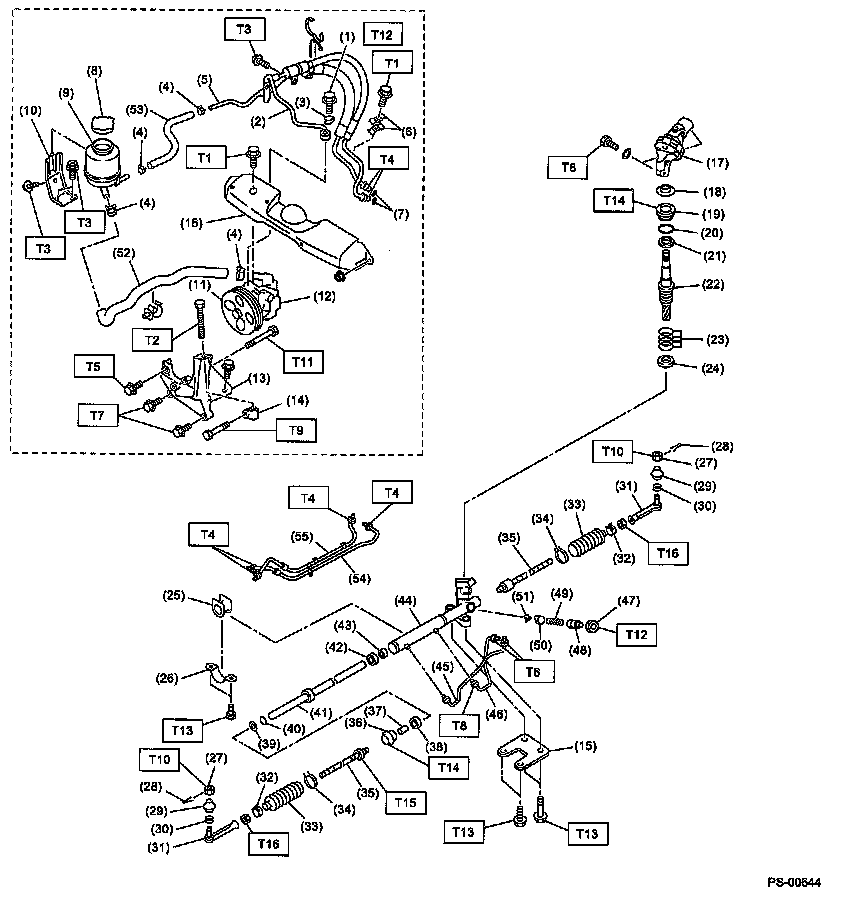

Power Assisted System
Power Assisted System
Power Assisted System (Part 1):
Power Assisted System (Part 2):
Power Assisted System (Part 3):
