Home >> Saab >> 2005 >> 9-2X F4-2.0L Turbo >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Manual Transmission/Transaxle >> System Diagram >> Shifter Fork and Shifter Rod

Shifter Fork and Shifter Rod

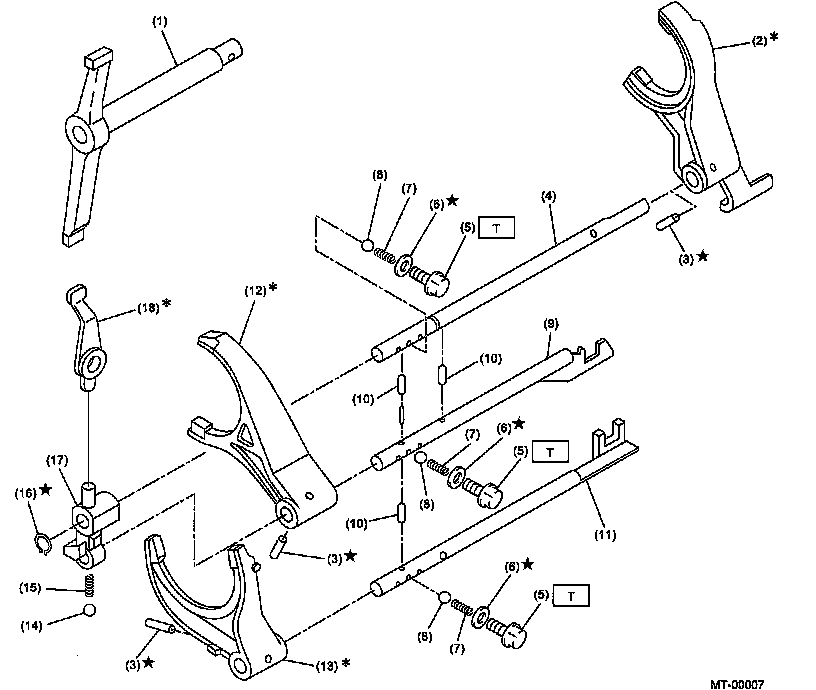

Shifter Fork and Shifter Rod (Part 1):

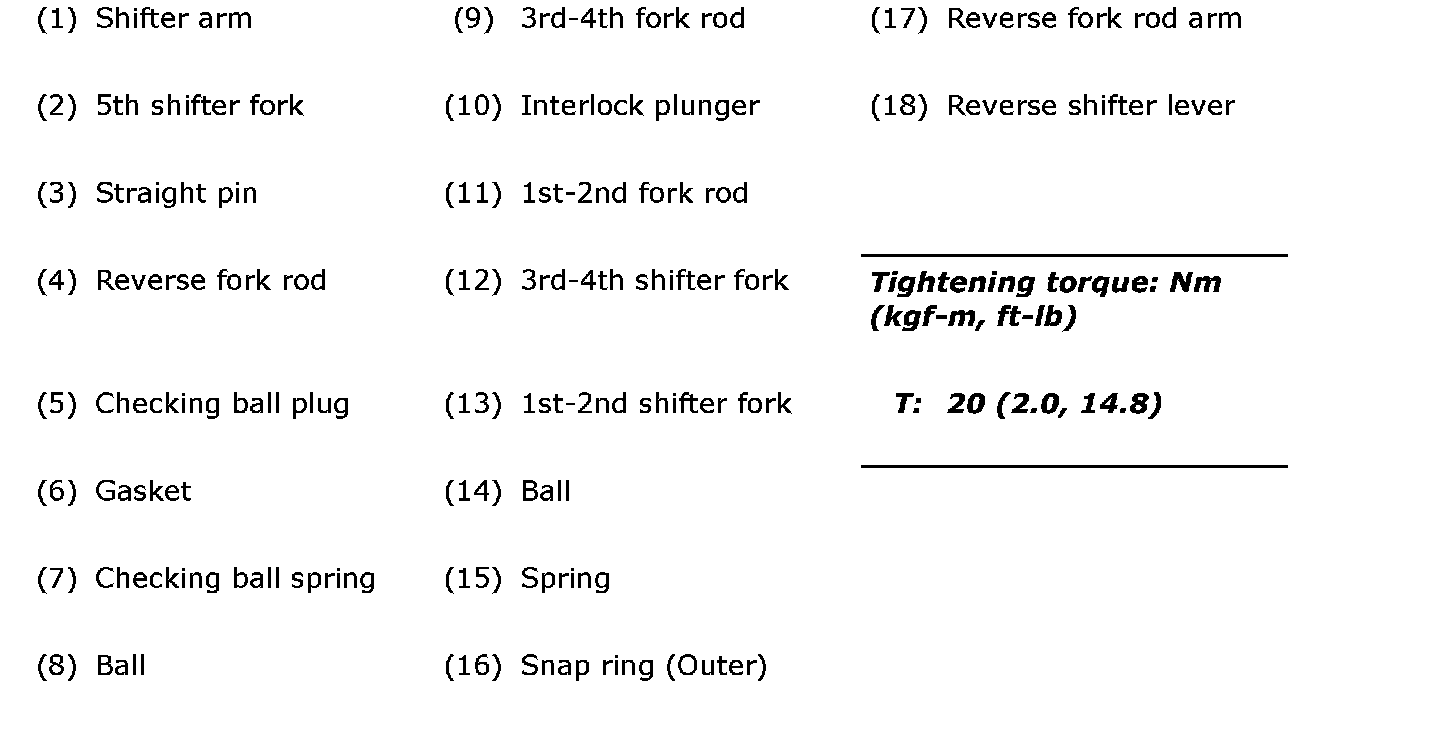

Shifter Fork and Shifter Rod (Part 2):
