Cylinder Head and Valve Assembly

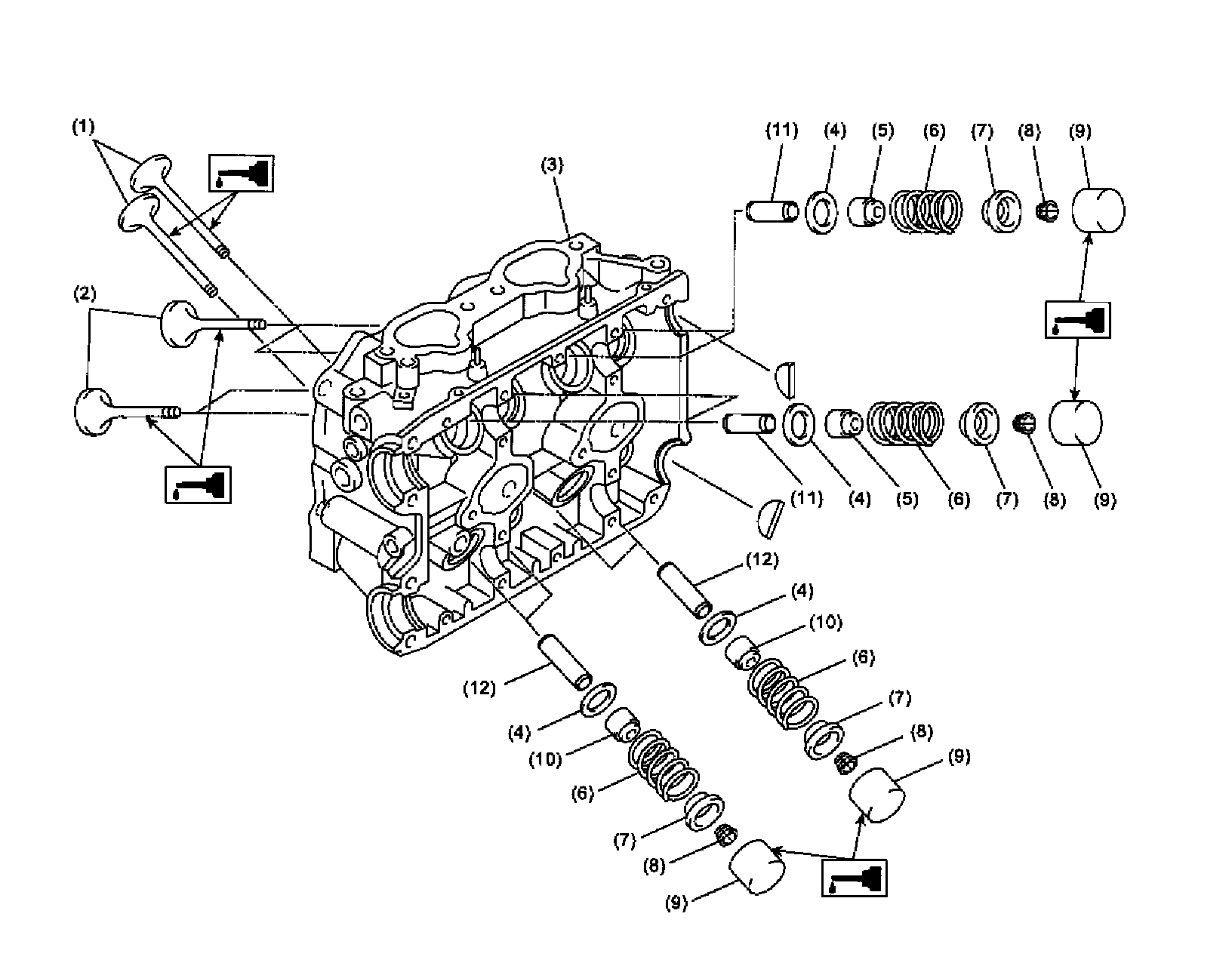

Cylinder Head And Valve Assembly (Part 1):

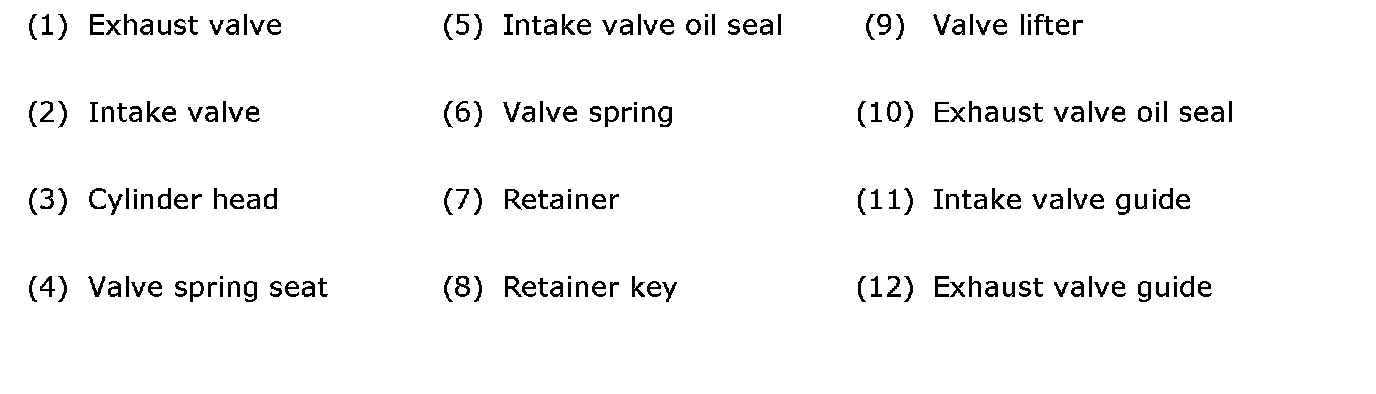

Cylinder Head And Valve Assembly (Part 2):
