Home >> Saab >> 2005 >> 9-2X F4-2.0L Turbo >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Engine >> Cylinder Head Assembly >> Cylinder Head and Camshaft

Cylinder Head and Camshaft

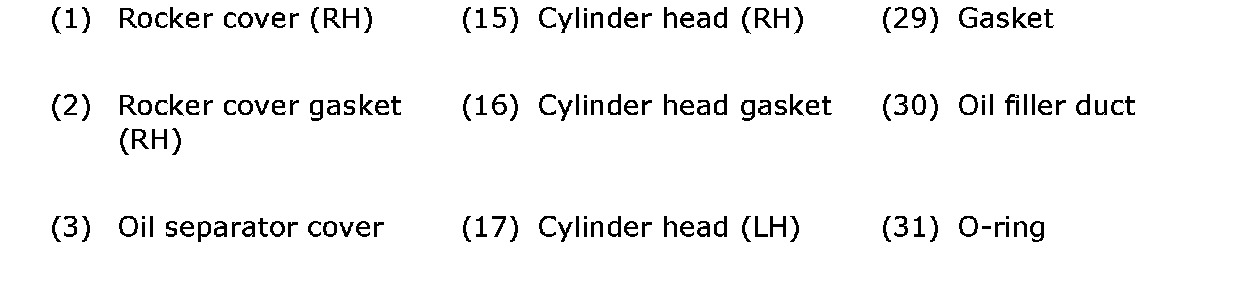

Cylinder Head and Camshaft (Part 1):

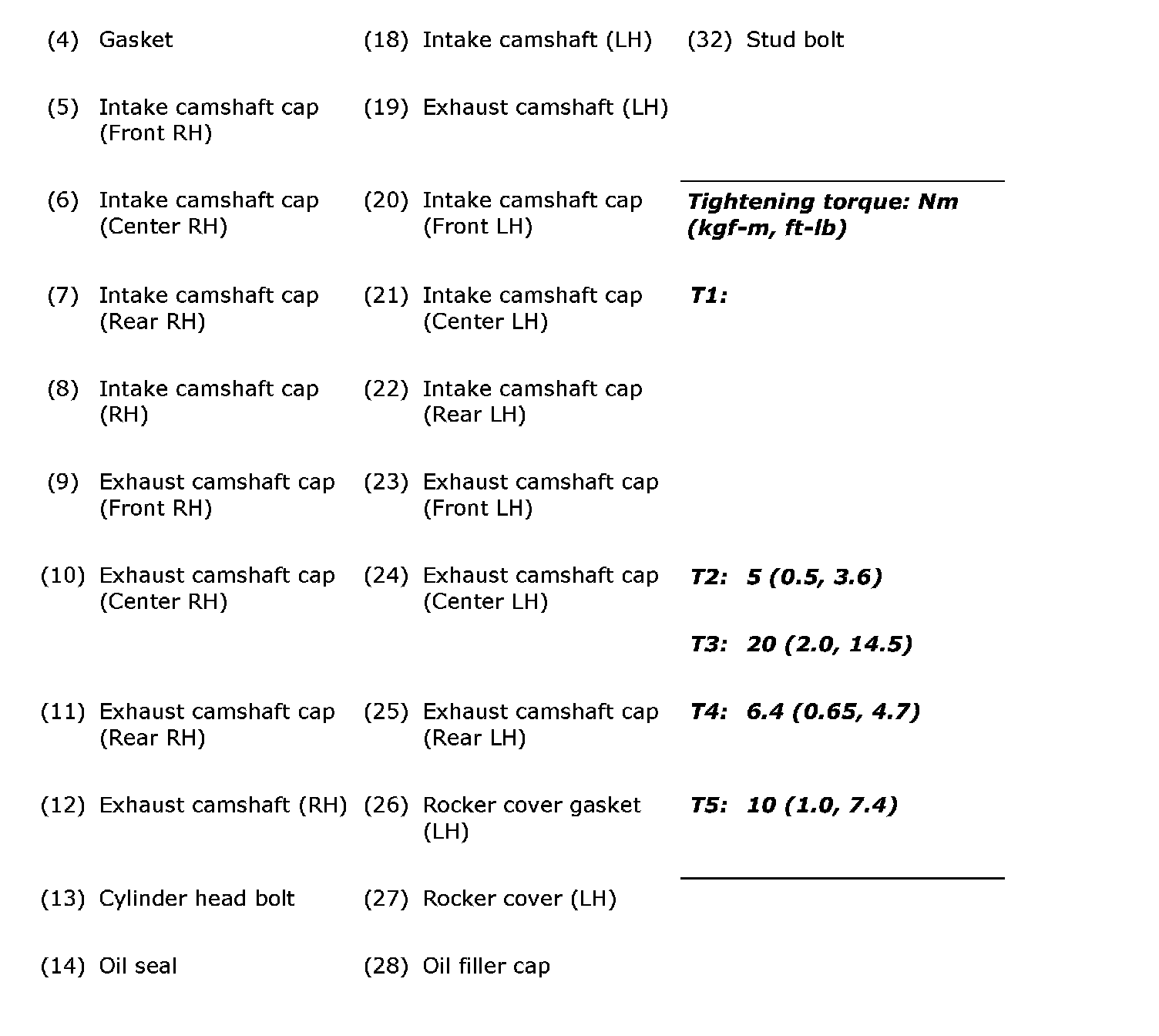

Cylinder Head and Camshaft (Part 2):

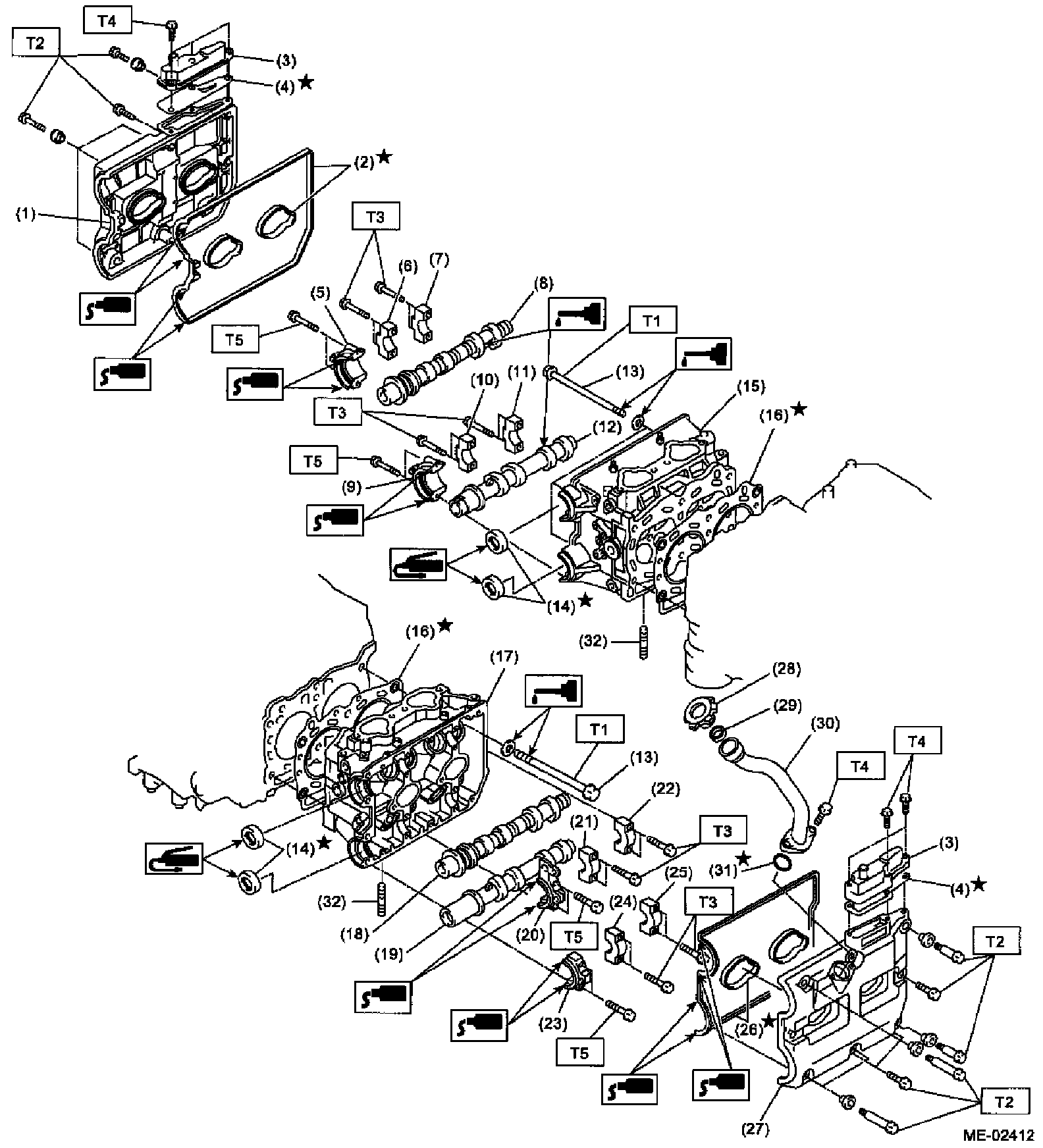

Cylinder Head and Camshaft (Part 3):
