Home >> Saab >> 2005 >> 9-2X F4-2.0L Turbo >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Electronic Brake Control Module

Electronic Brake Control Module

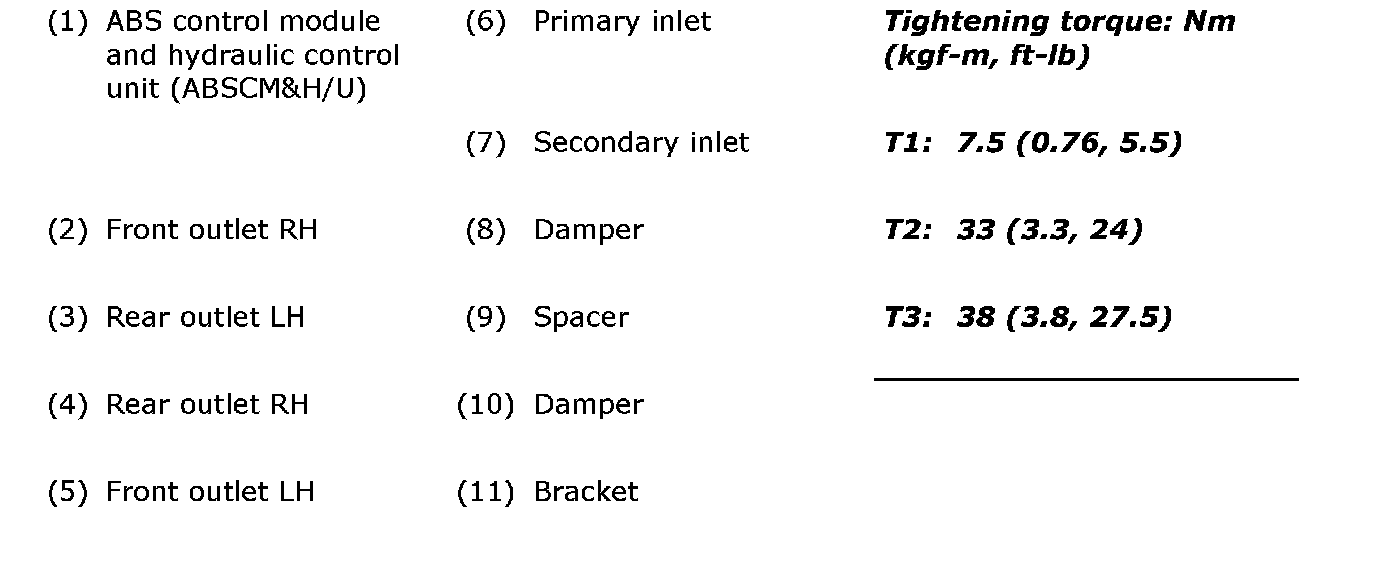

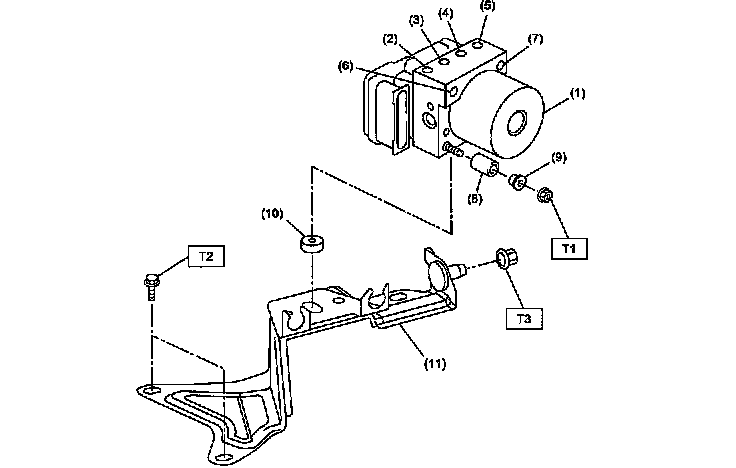

ABS CONTROL MODULE AND HYDRAULIC CONTROL UNIT (ABSCM&H/U)
