Catalytic Converter

COMPONENT

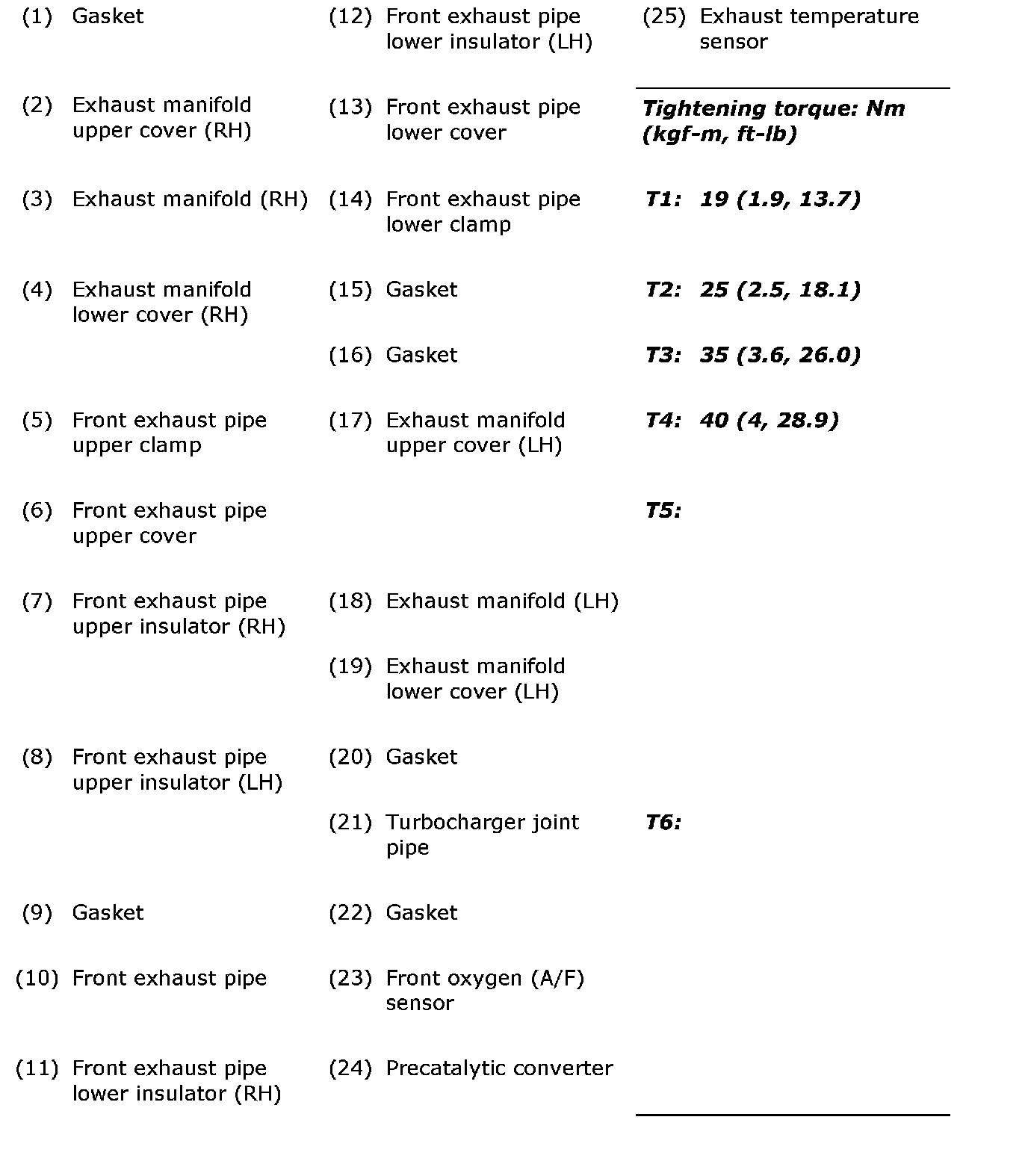

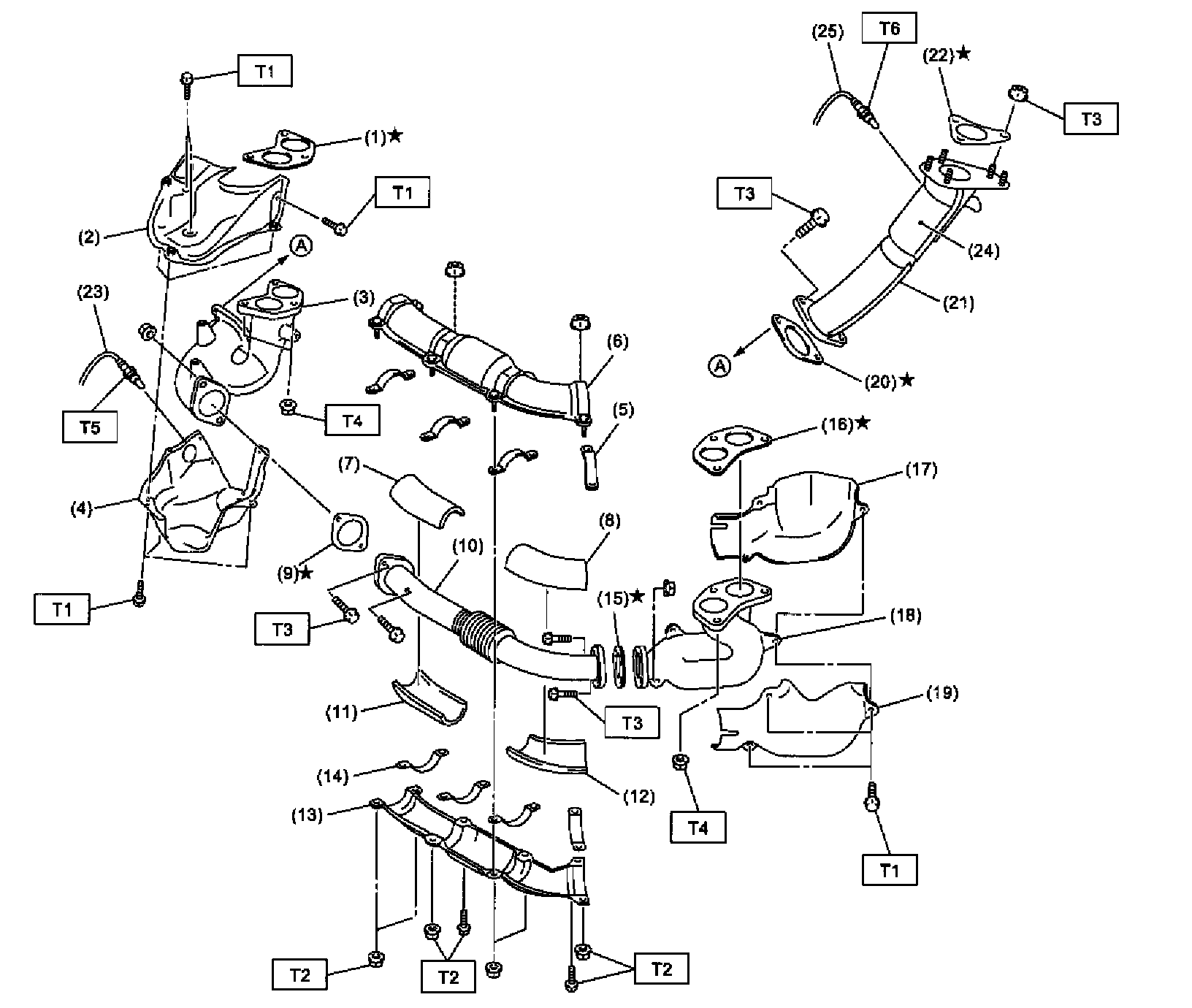

FRONT EXHAUST PIPE (Part 1):




FRONT EXHAUST PIPE (Part 2):

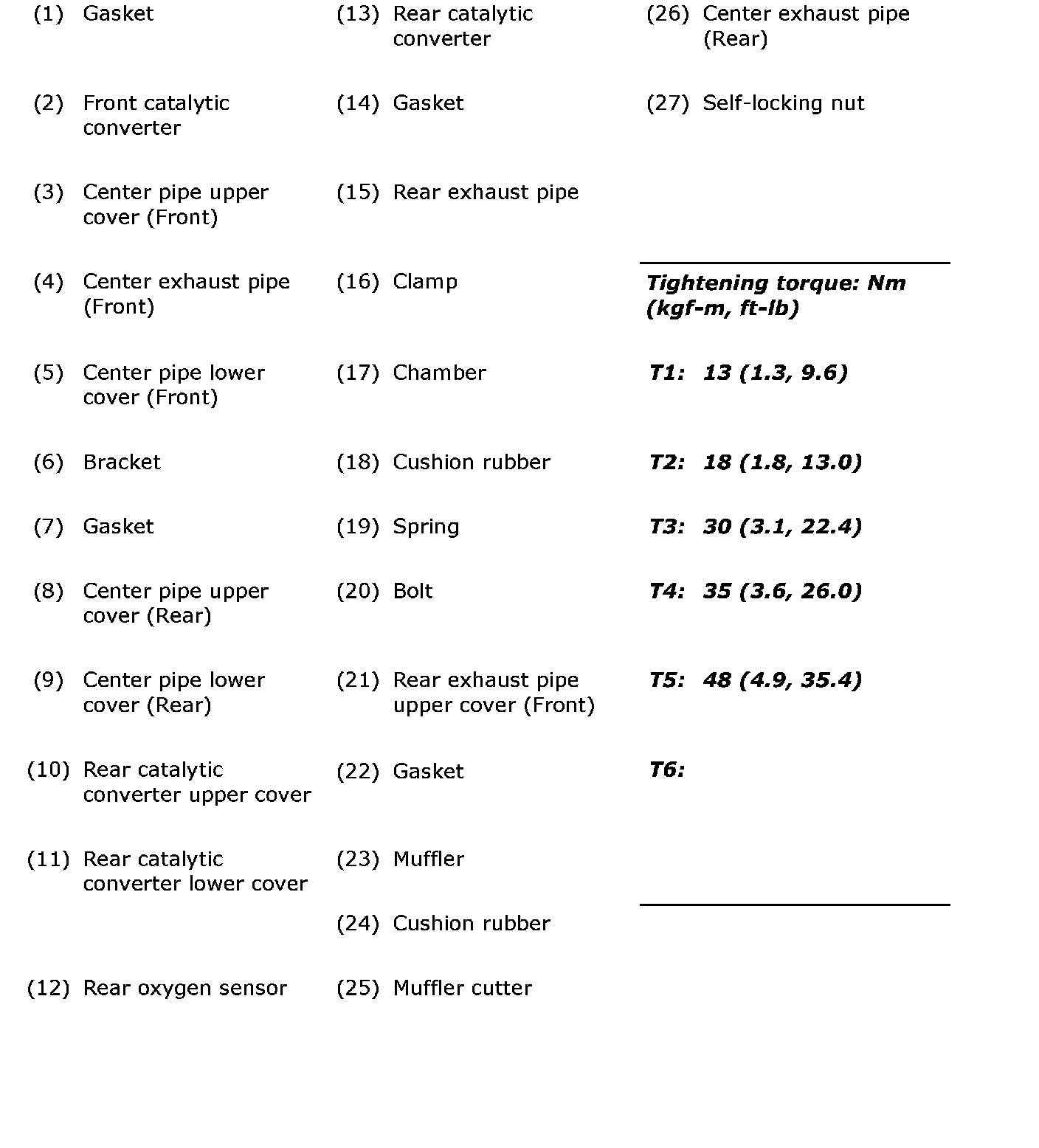

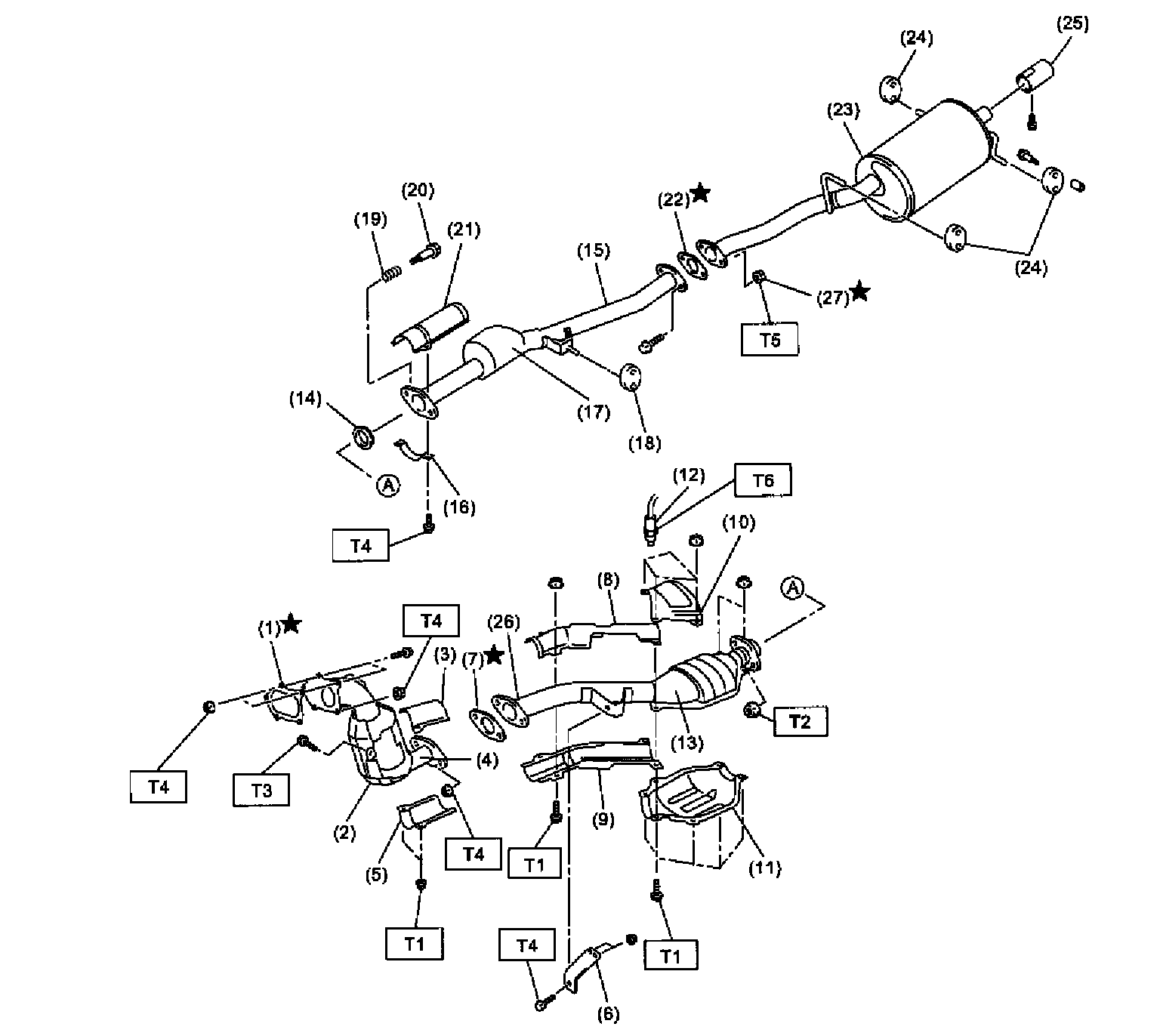

CENTER AND REAR EXHAUST PIPE, AND MUFFLER (Part 1):




CENTER AND REAR EXHAUST PIPE, AND MUFFLER (Part 2):
