Home >> Saab >> 2005 >> 9-2X F4-2.0L Turbo >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Axle Shaft Assembly >> Front Axle

Front Axle

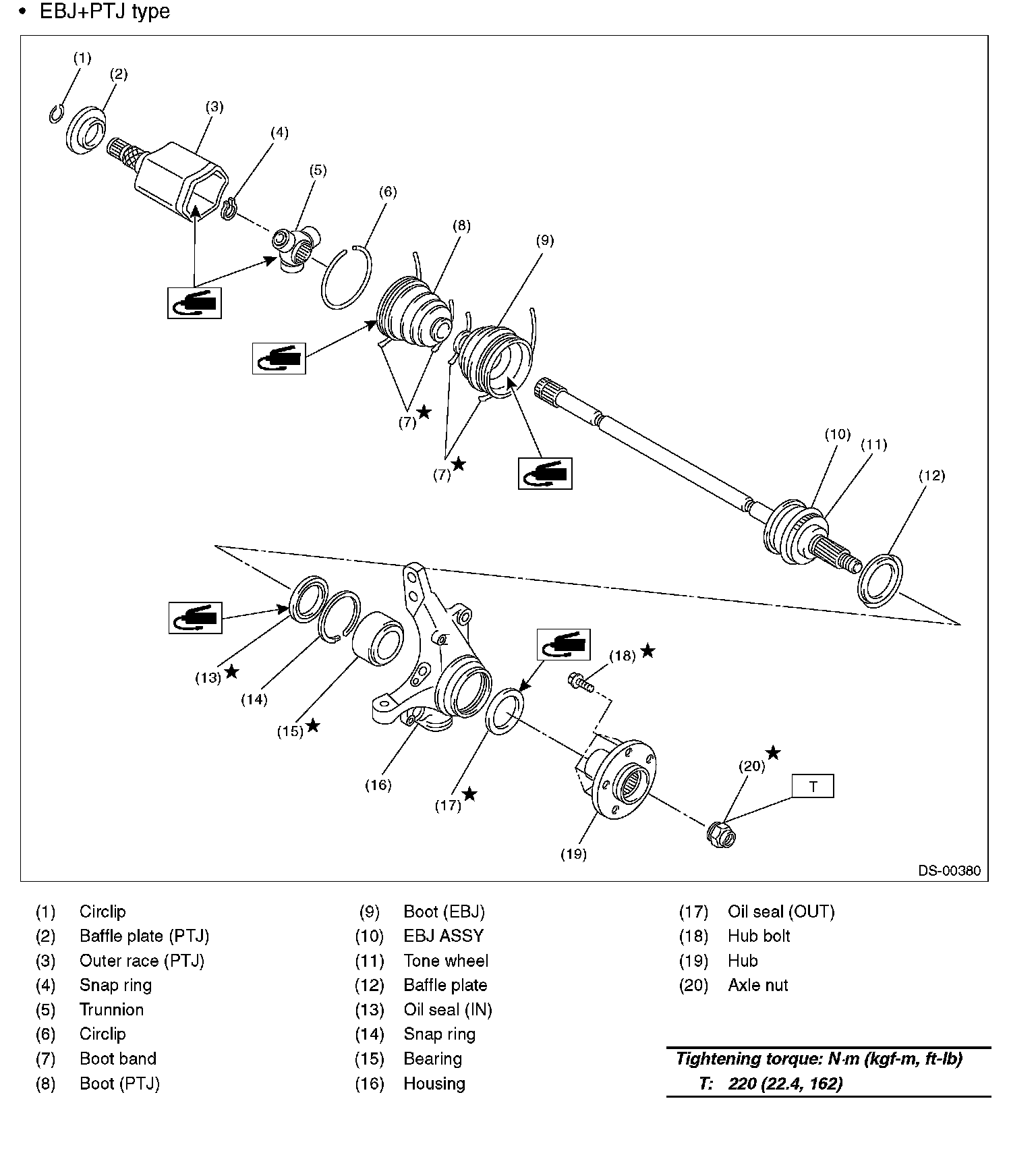

Front Axle:

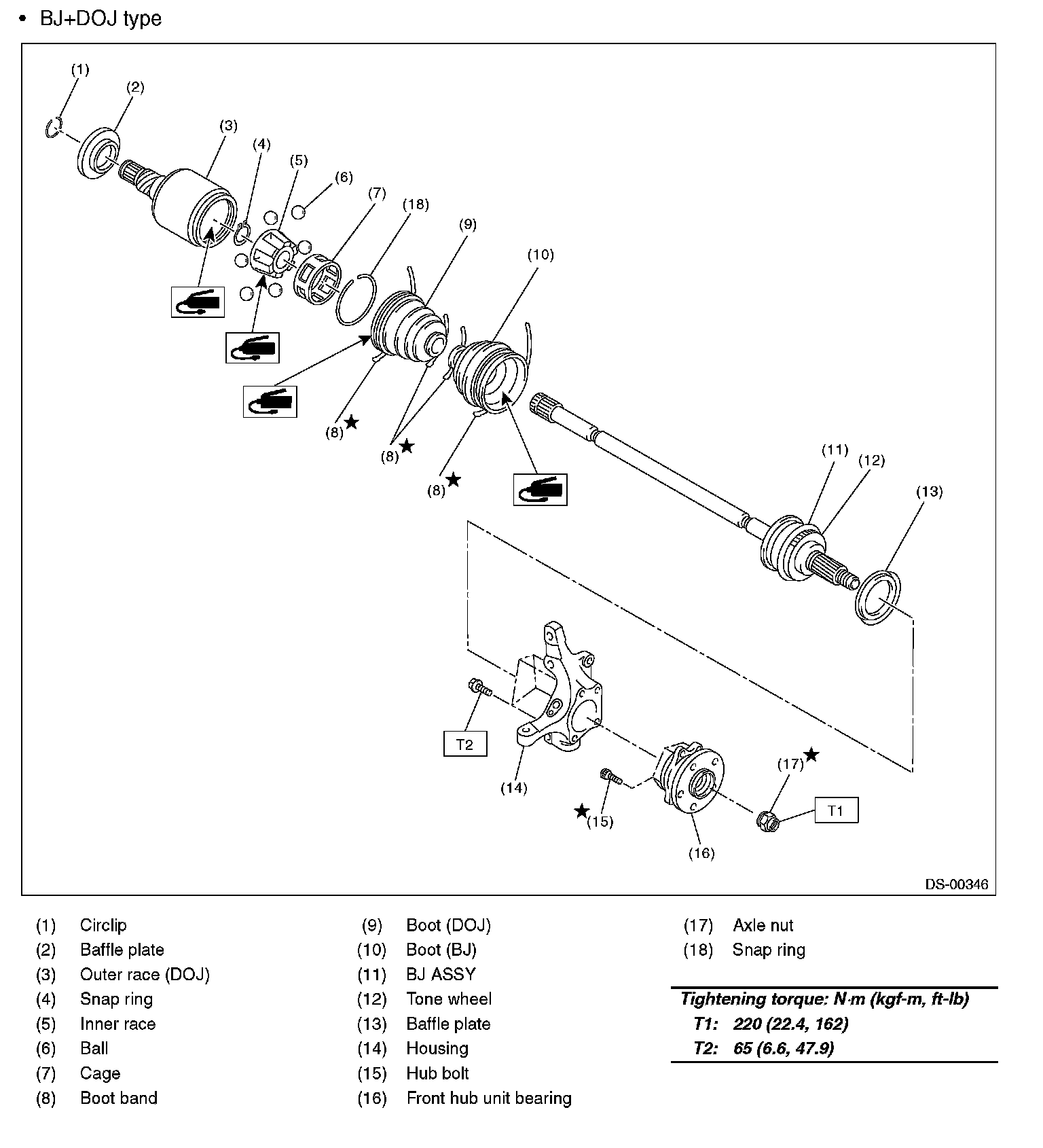

Front Axle:
