Home
>>
Saab
>>
2005
>>
9-2X F4-2.0L Turbo
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Automatic Transmission/Transaxle
>>
System Diagram
>>
Transfer and Extension Case With VTD
Transfer and Extension Case With VTD

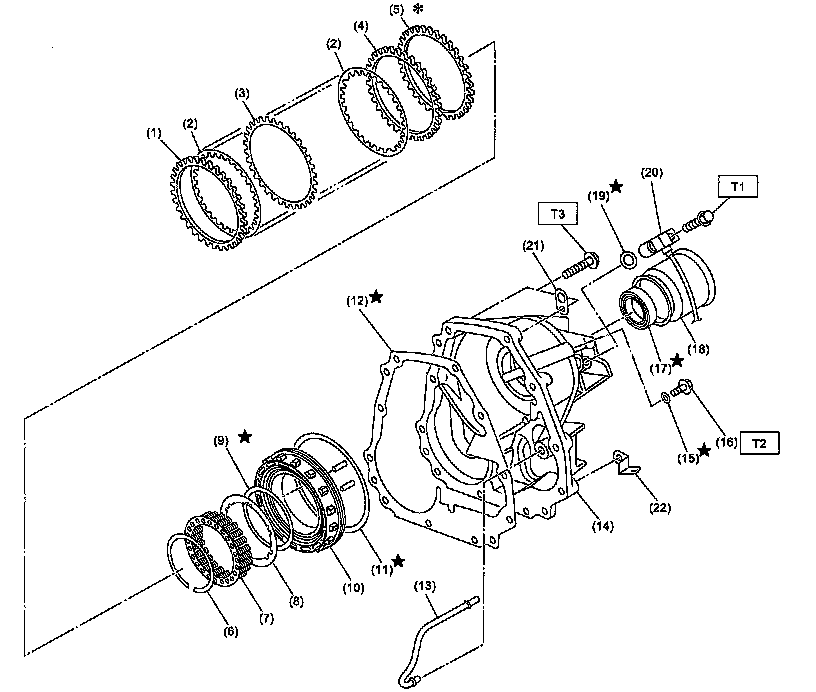

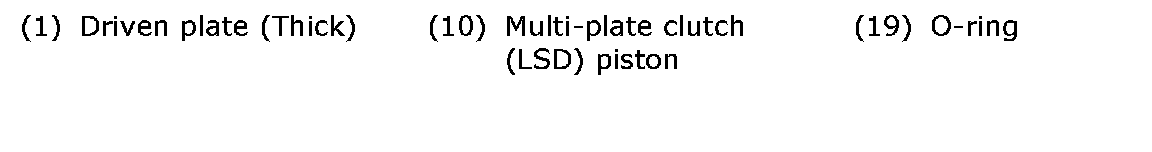

Transfer and Extension Case With VTD (Part 1):

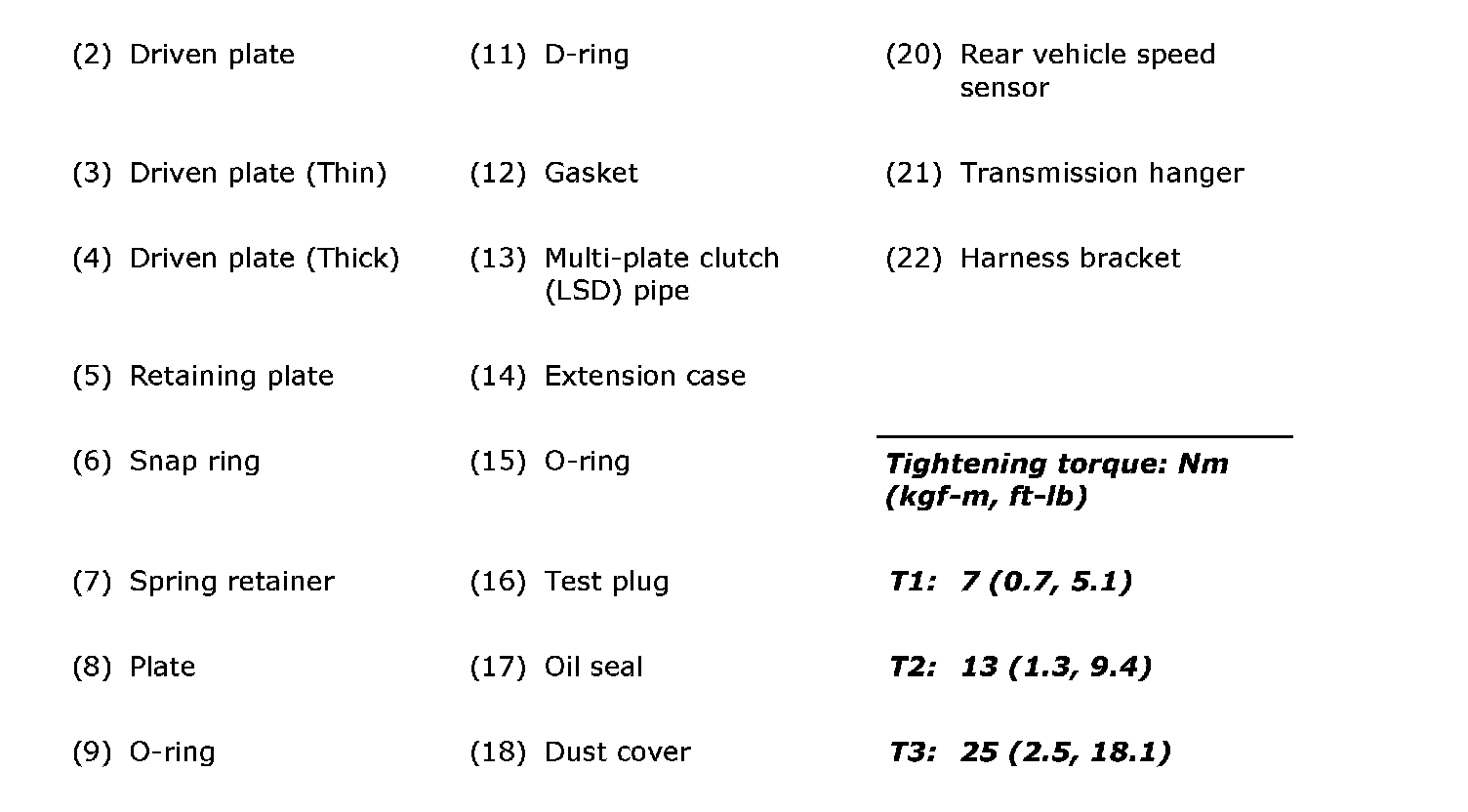

Transfer and Extension Case With VTD (Part 2):
Transfer and Extension Case With VTD (Part 3):
