Automatic Transmission/Transaxle
>>
System Diagram
>>
Reduction Gear With MPT

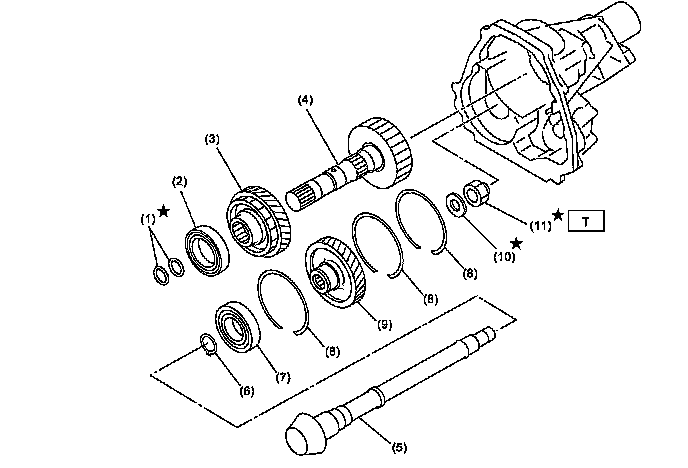

Reduction Gear With MPT

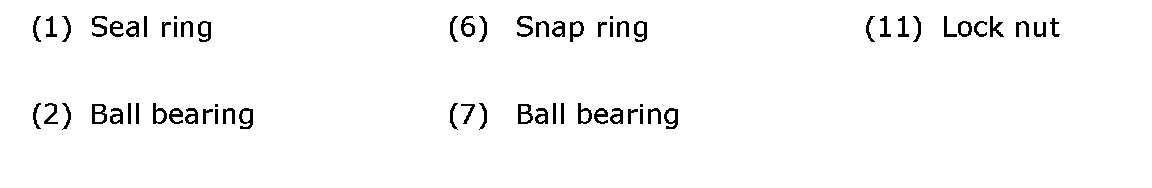

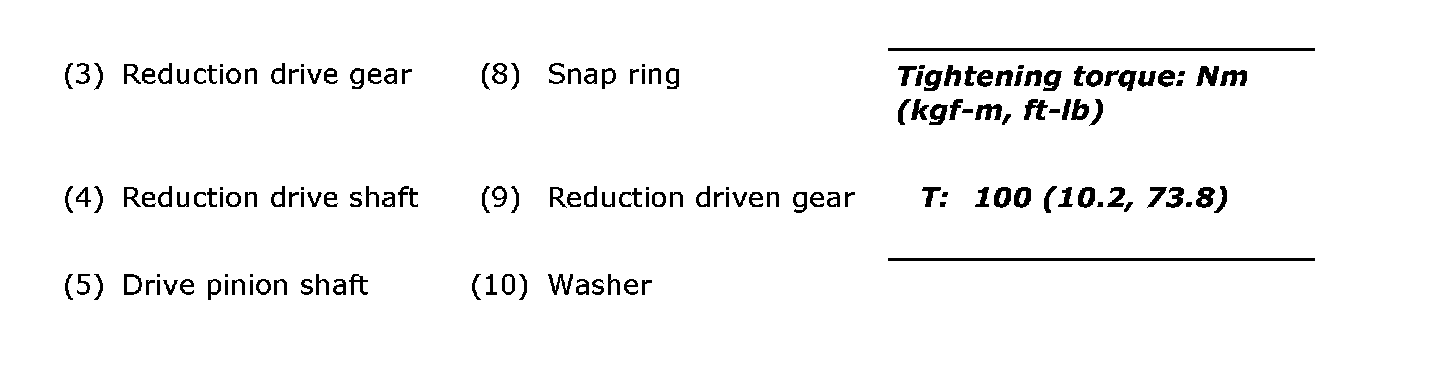

Reduction Gear With MPT (Part 1):
Reduction Gear With MPT (Part 2):
Reduction Gear With MPT (Part 3):
