Planetary Gear and 2-4 Brake

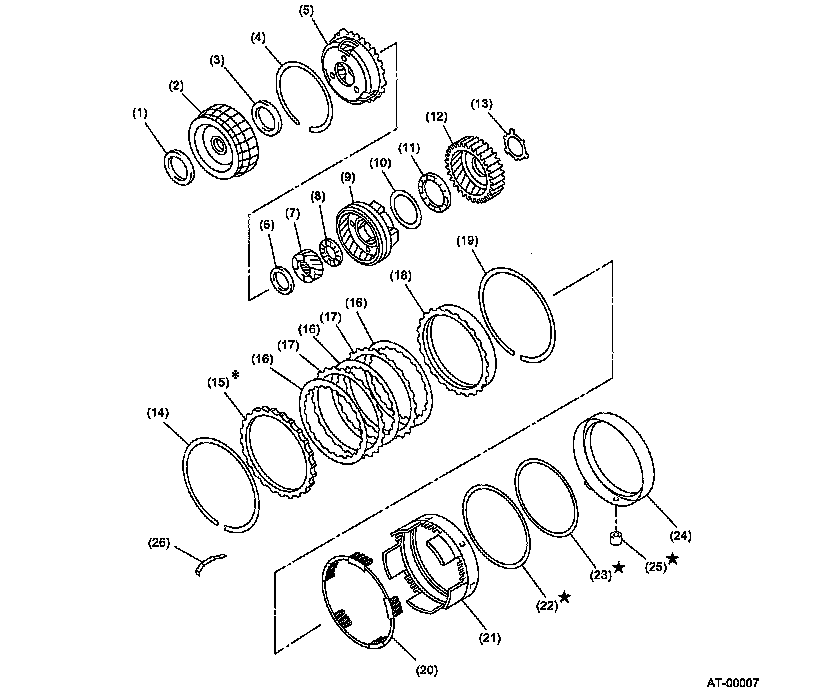

Planetary Gear and 2-4 Brake (Part 1):

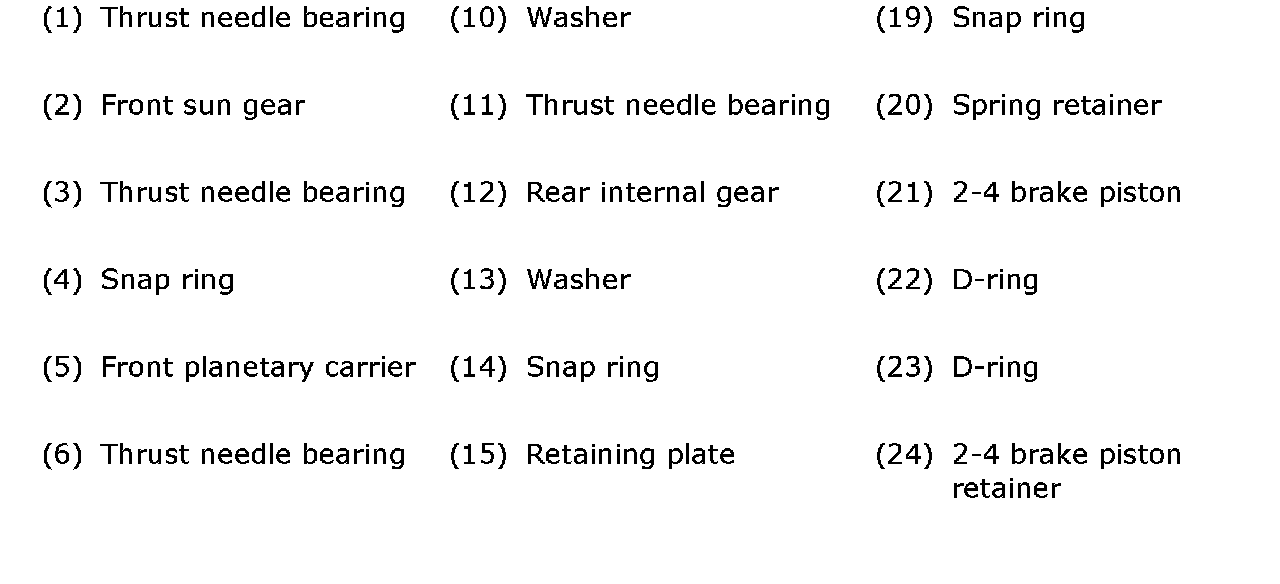

Planetary Gear and 2-4 Brake (Part 2):

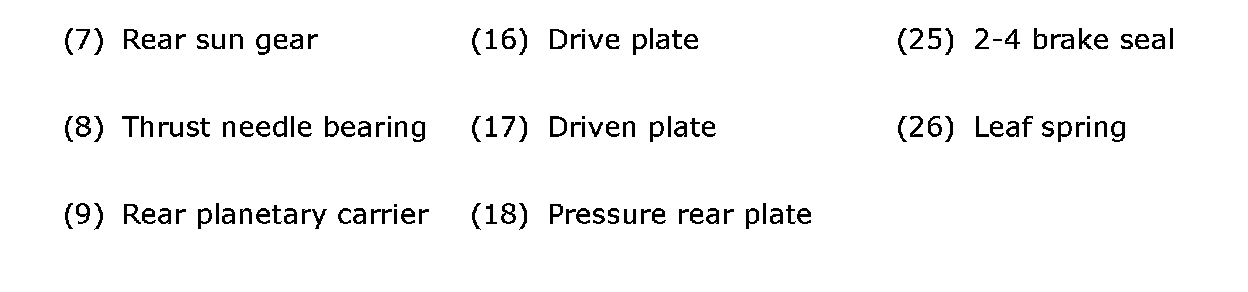

Planetary Gear and 2-4 Brake (Part 3):
