Saab
>>
2005
>>
9-2X F4-2.0L Turbo
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Automatic Transmission/Transaxle
>>
System Diagram
>>
Low Clutch and Low & Reverse Brake
Low Clutch and Low & Reverse Brake

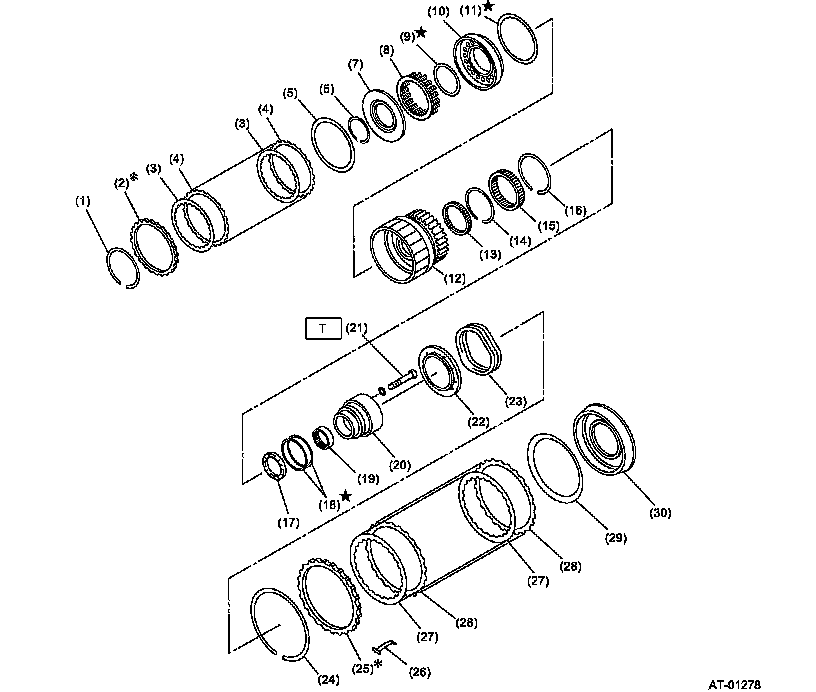

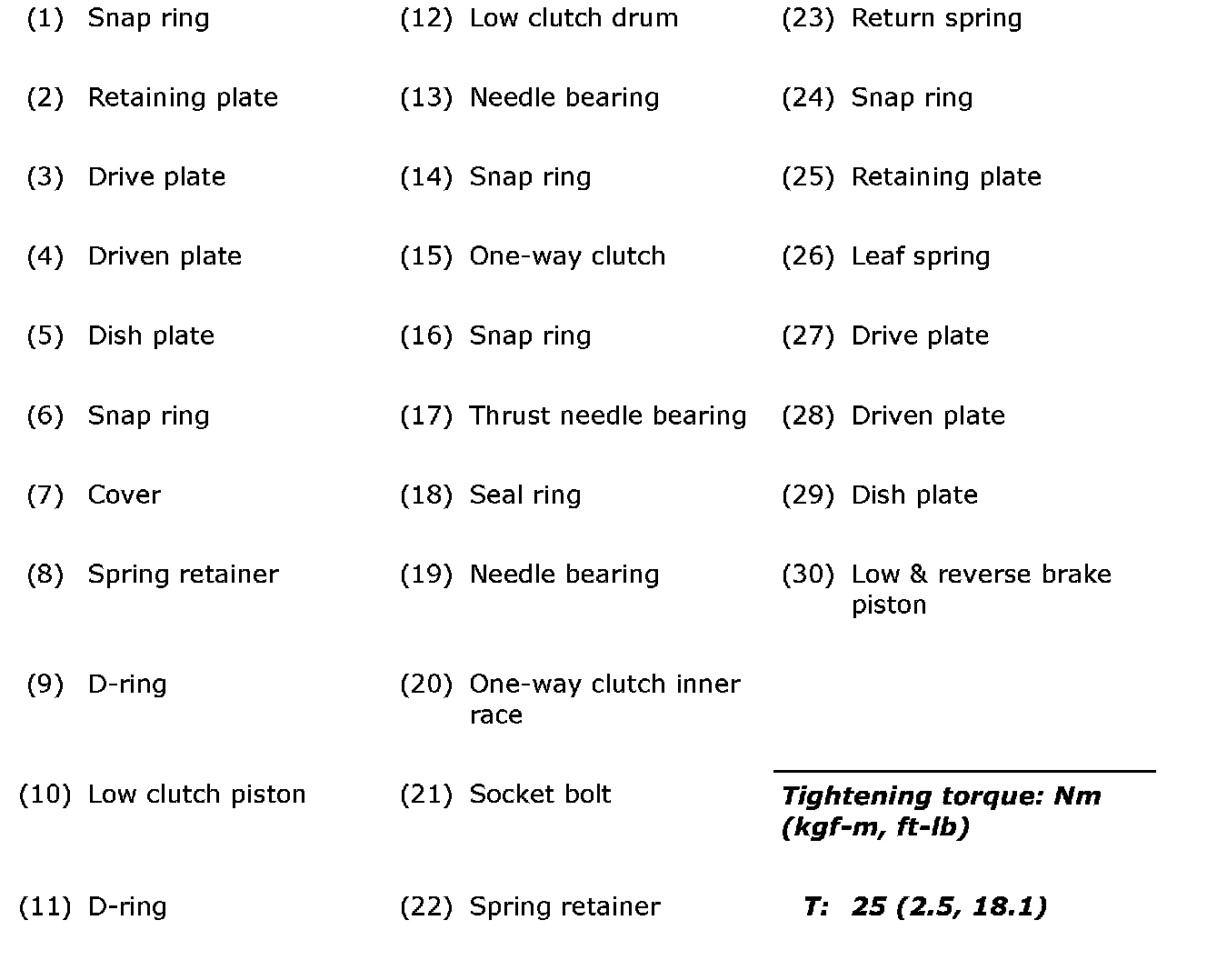

Low Clutch and Low & Reverse Brake (Part 1):
Low Clutch and Low & Reverse Brake (Part 2):
