High Clutch and Reverse Clutch

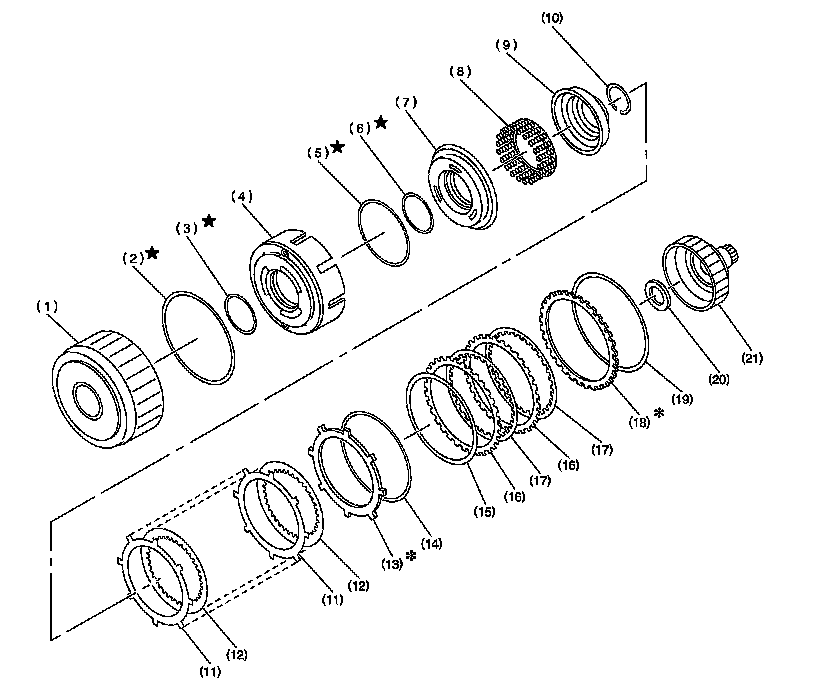

High Clutch and Reverse Clutch (Part 1):

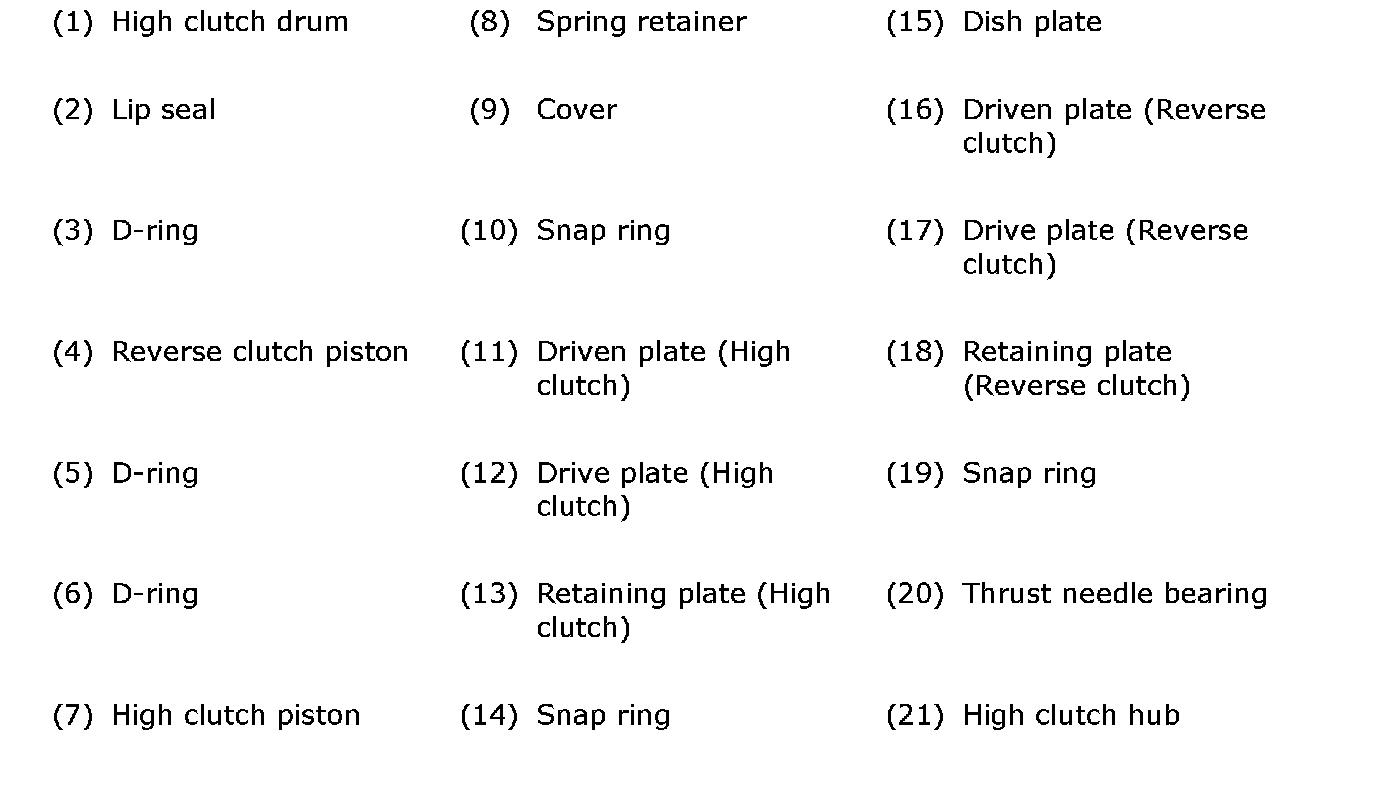

High Clutch and Reverse Clutch (Part 2):
