Differential Gear

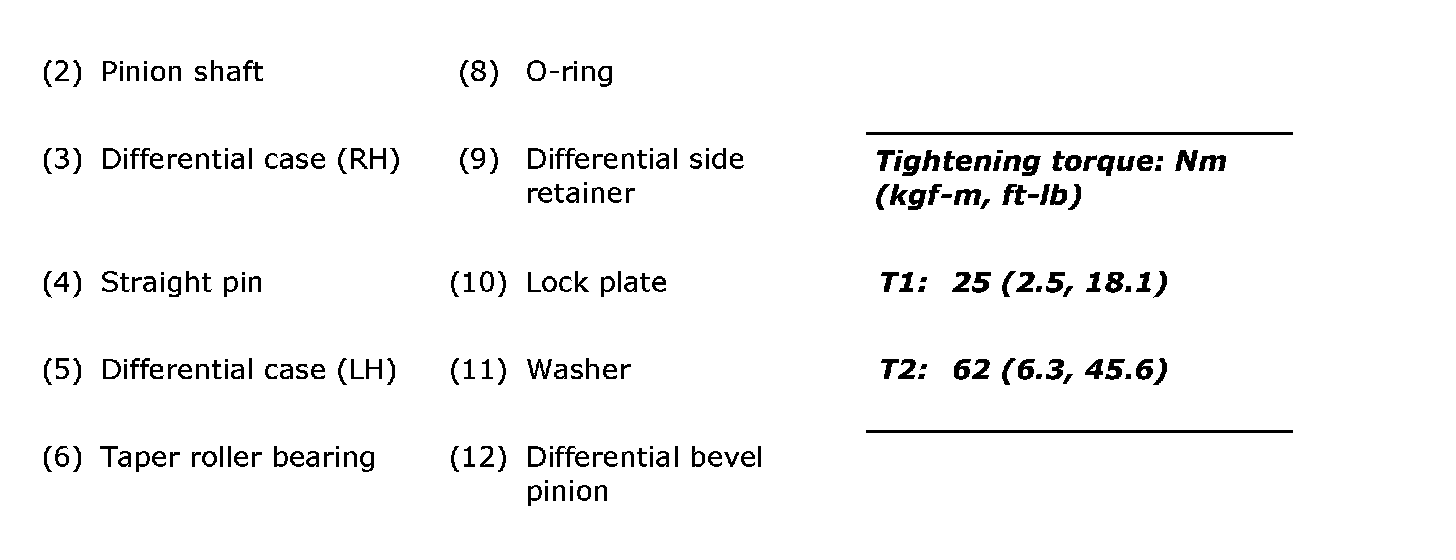

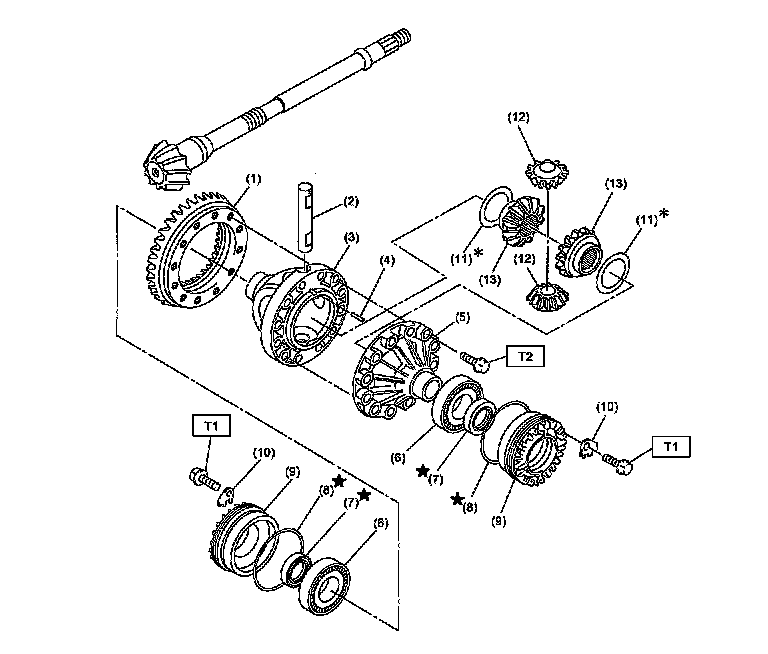

Differential Gear (Part 1):



Differential Gear (Part 2):



Differential Gear (Part 3):
