Automatic Transmission/Transaxle
>>
System Diagram
>>
Control Valve and Harness Routing
Control Valve and Harness Routing

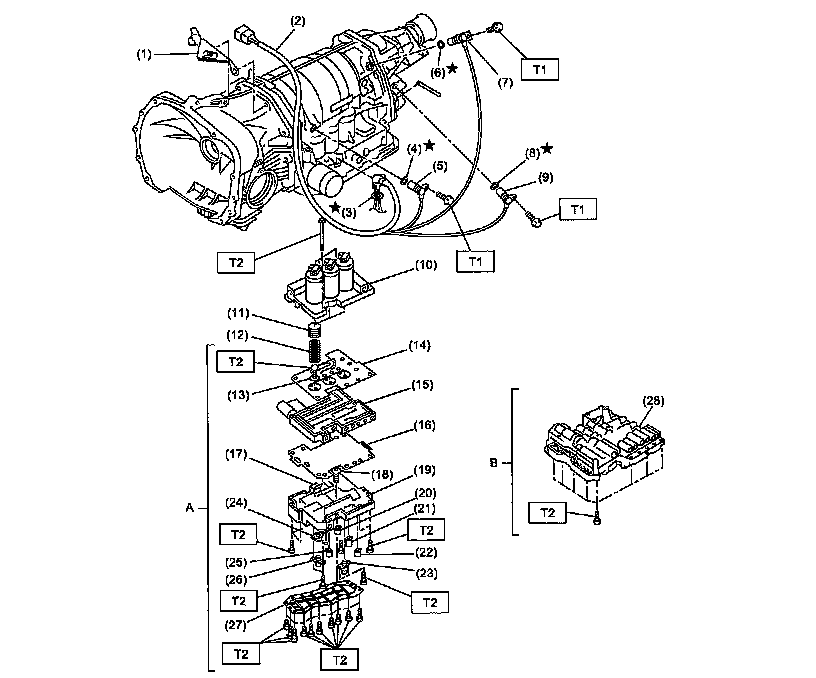

Control Valve and Harness Routing (Part 1):

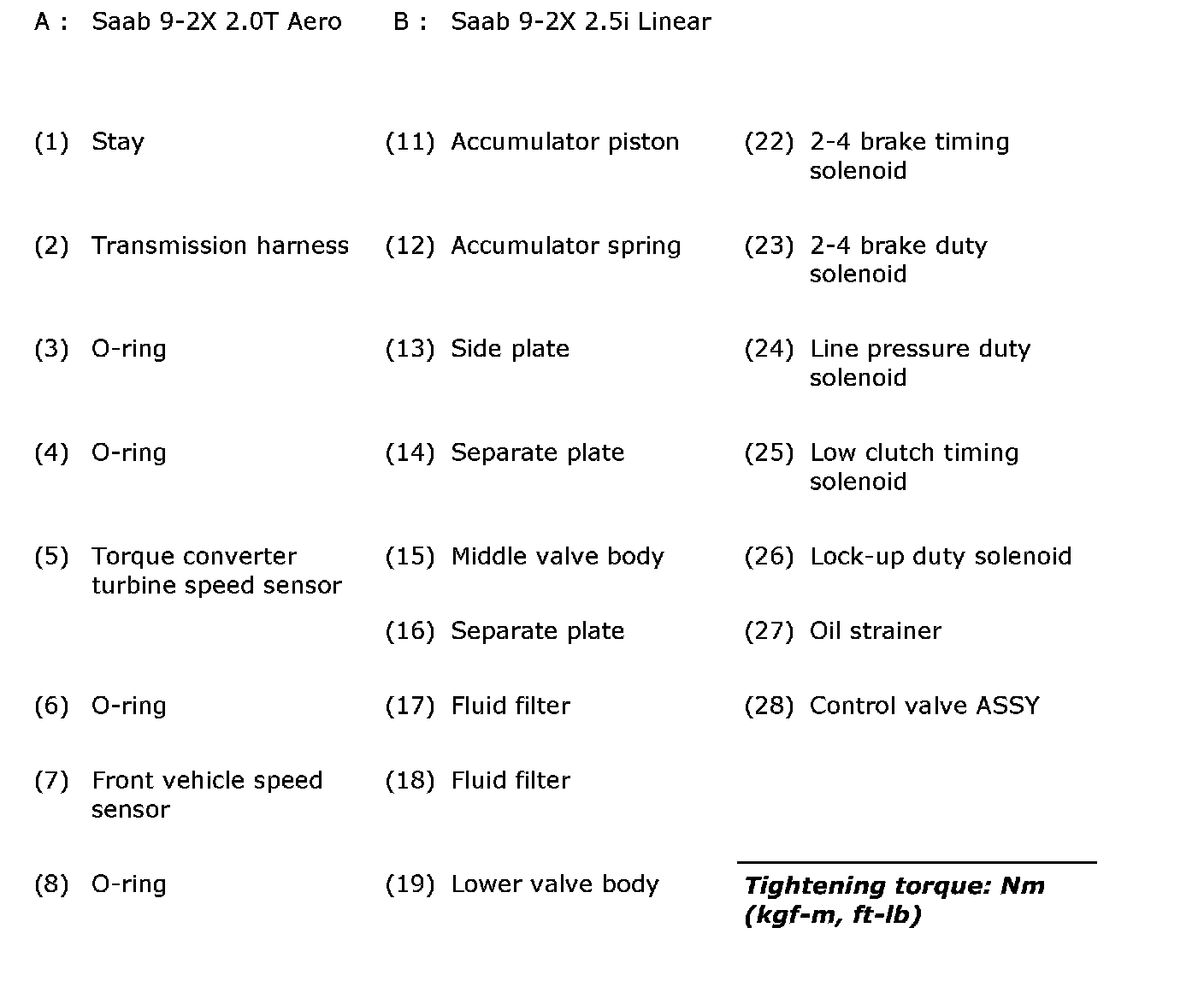

Control Valve and Harness Routing (Part 2):

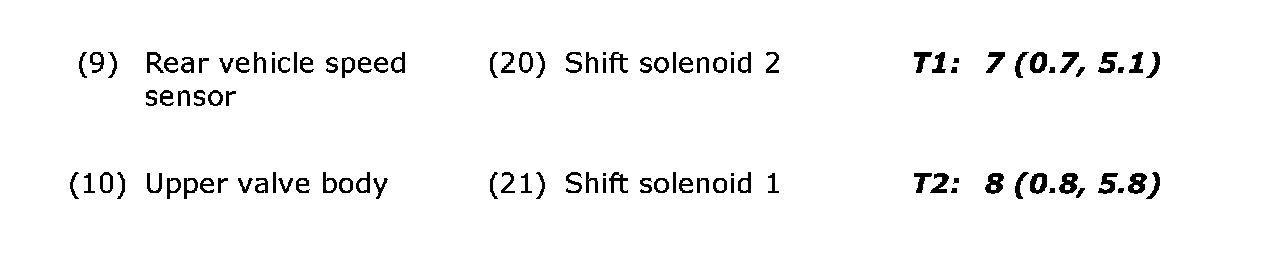

Control Valve and Harness Routing (Part 3):
