Power Supply Routing

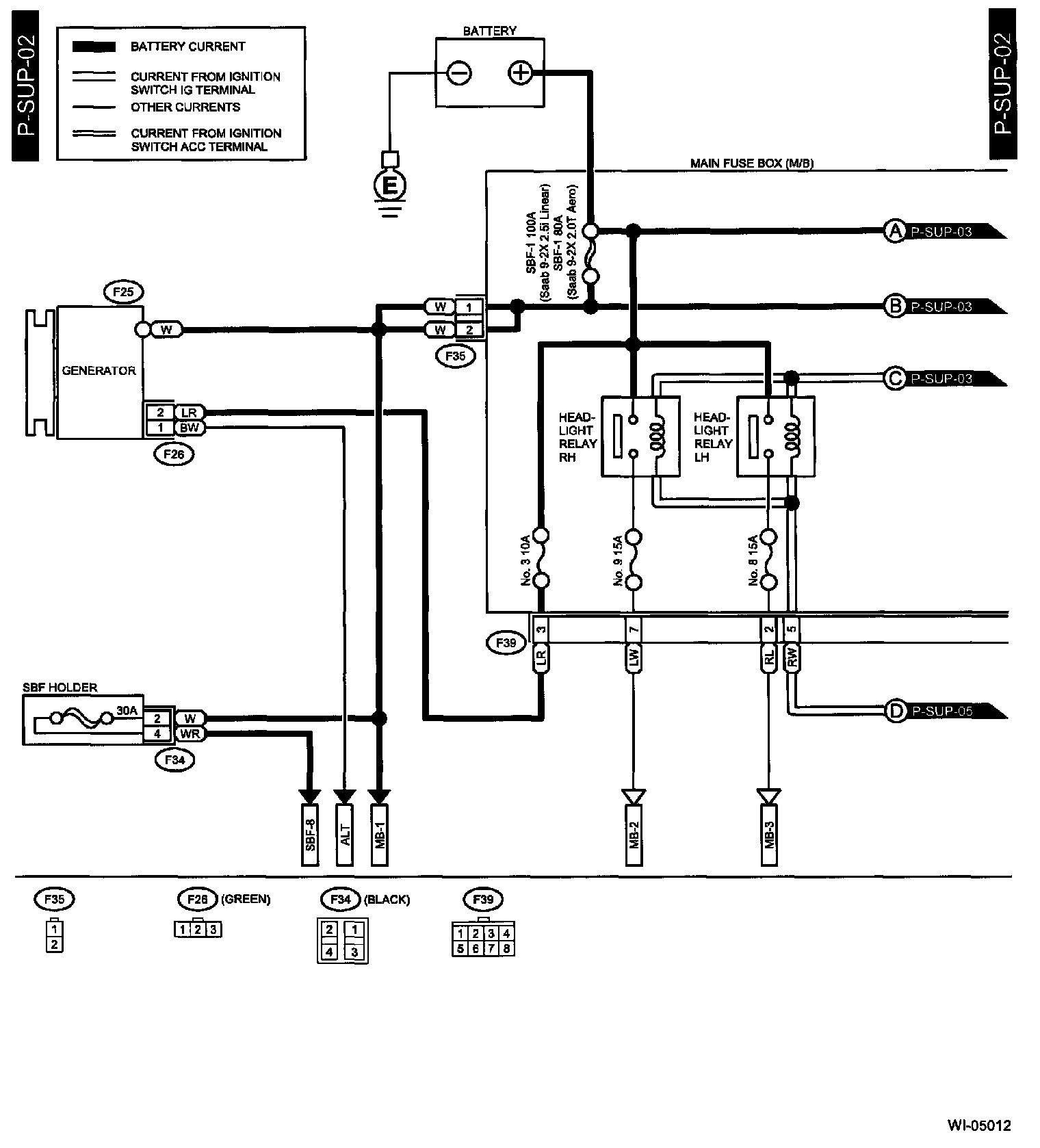

P-SUP-02:

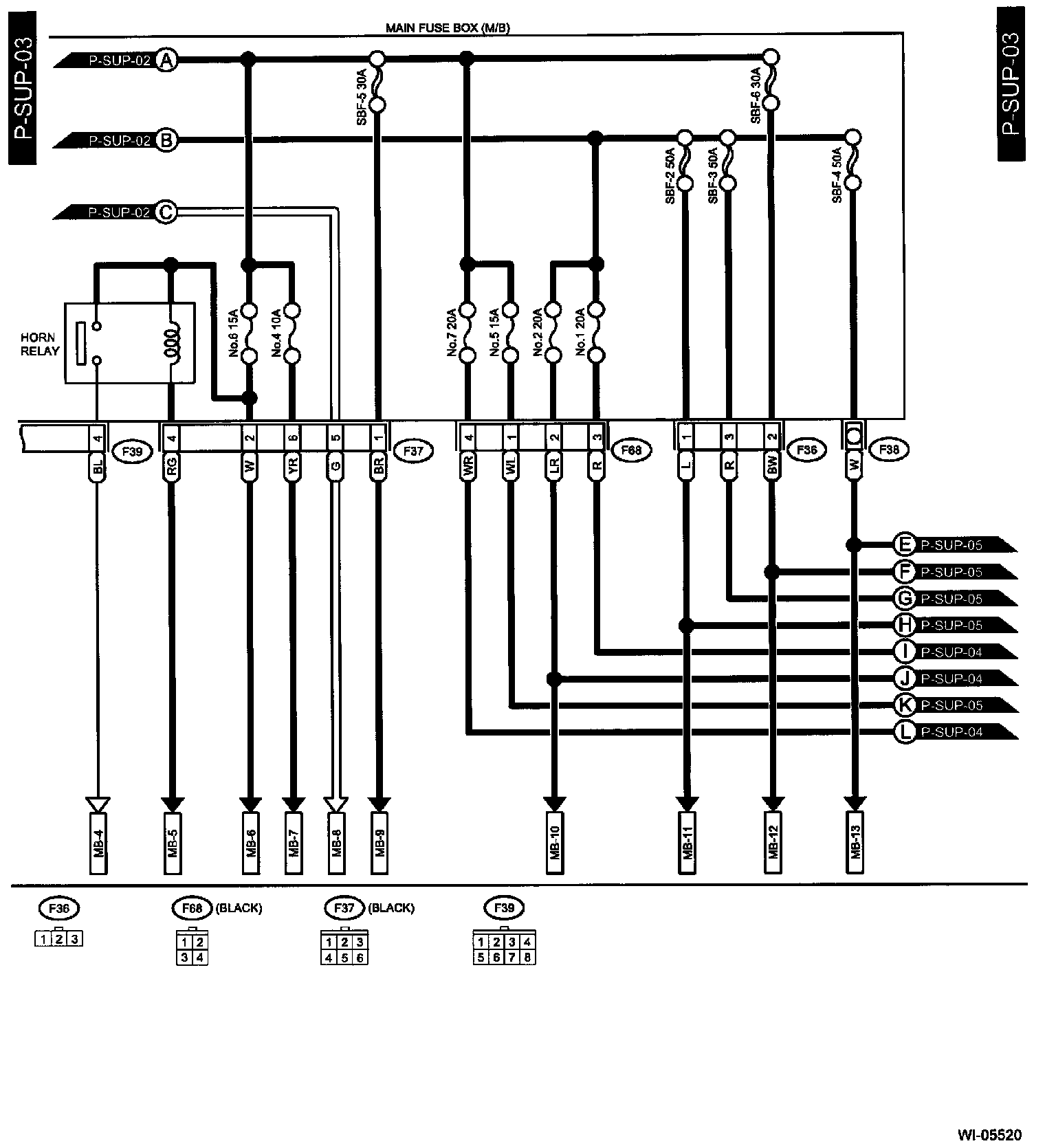

P-SUP-03:

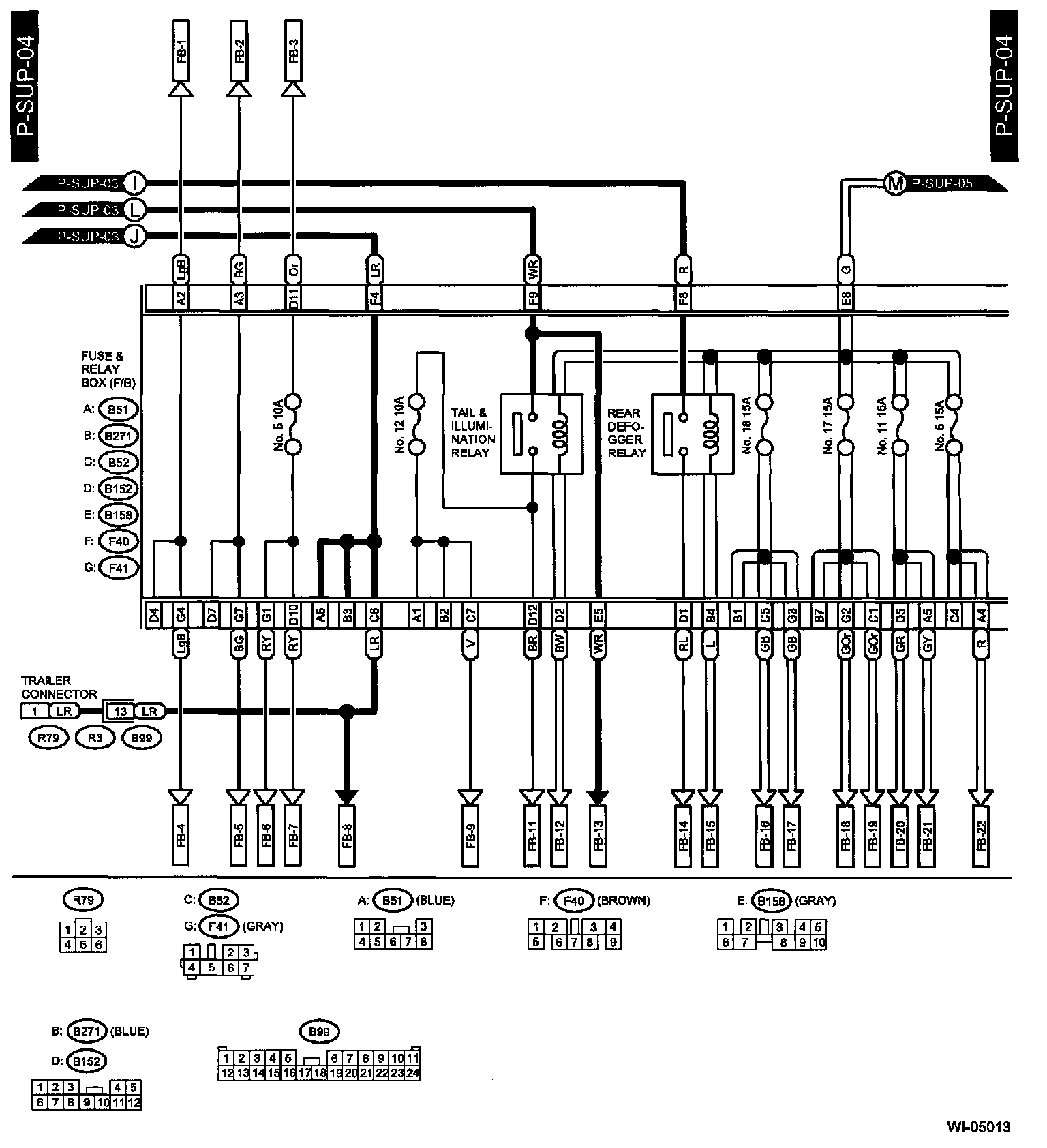

P-SUP-04:

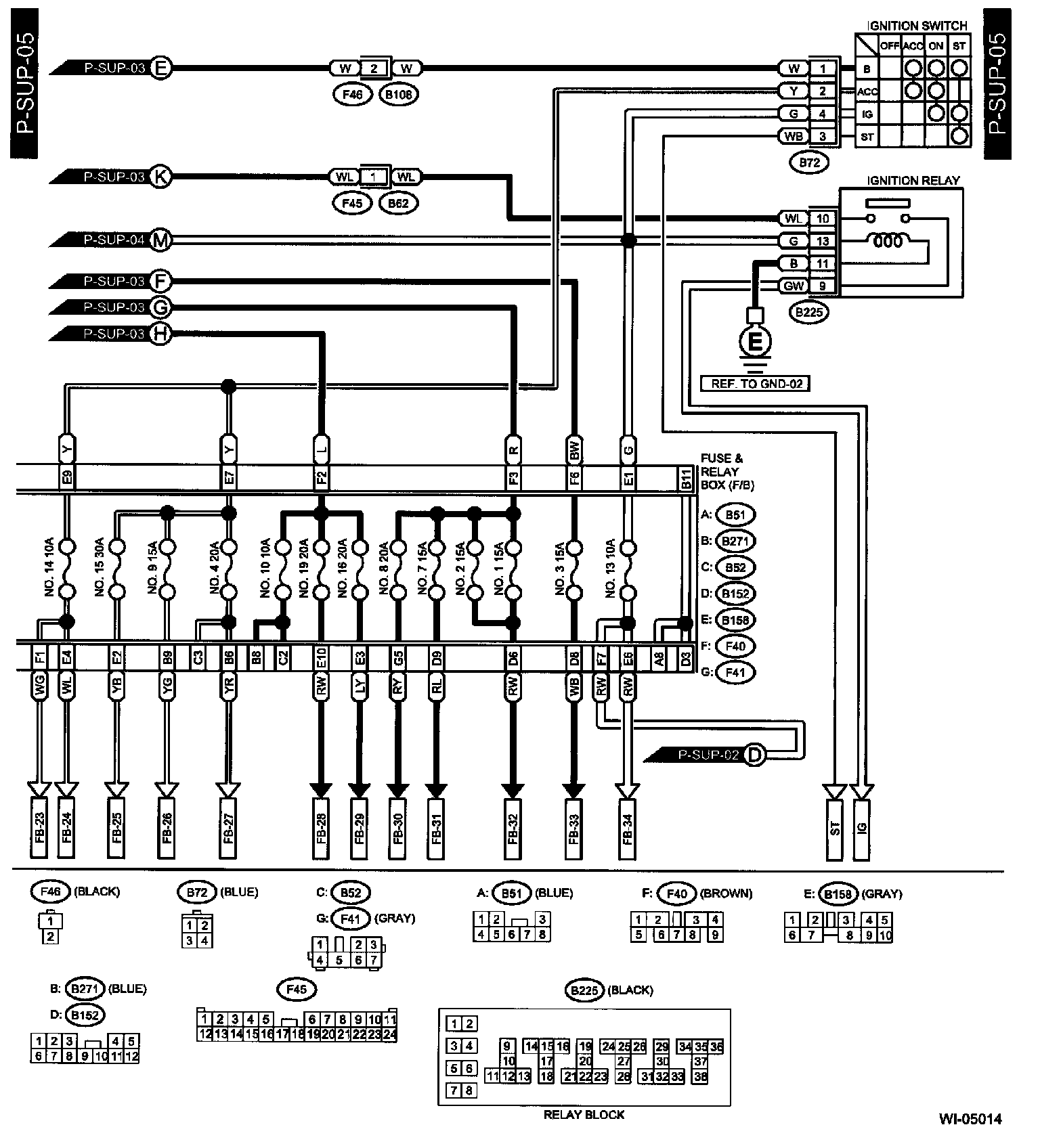

P-SUP-05:

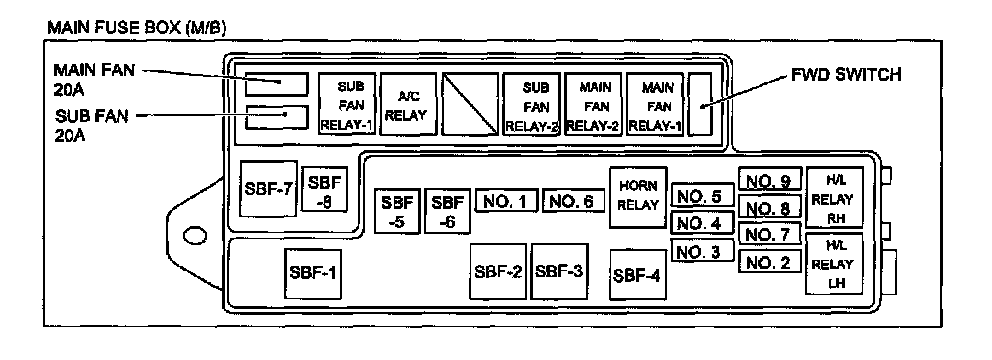

Main Fuse Box (M/B):

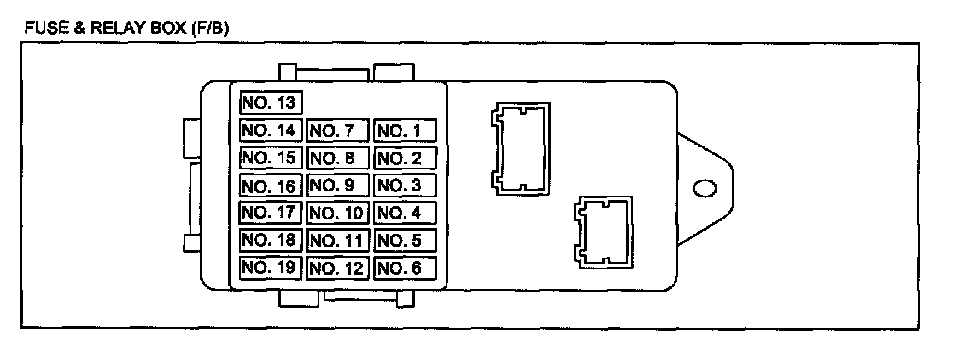

Fuse & Relay Box (F/B):

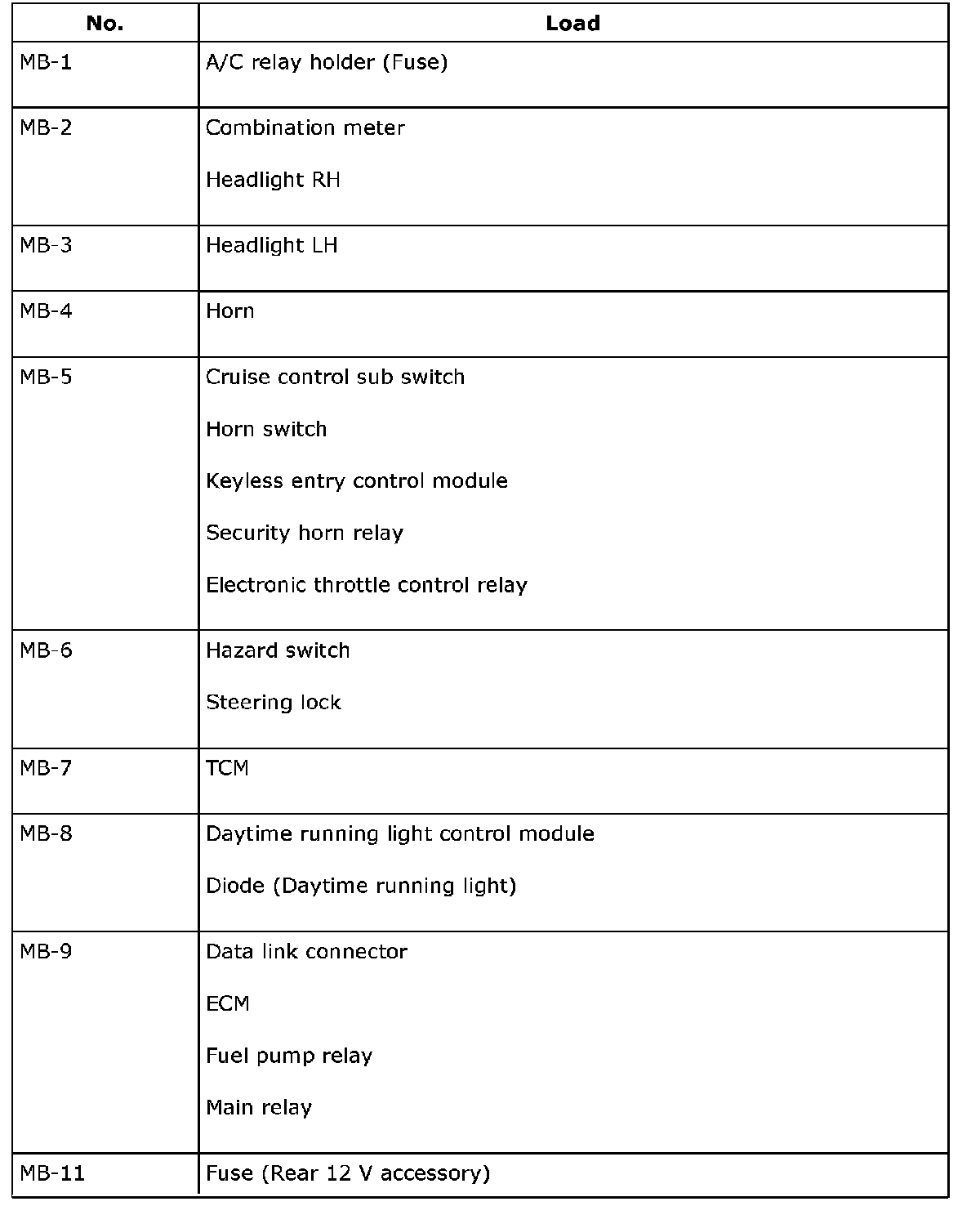

Diagram Legend MB-1 To MB-11:

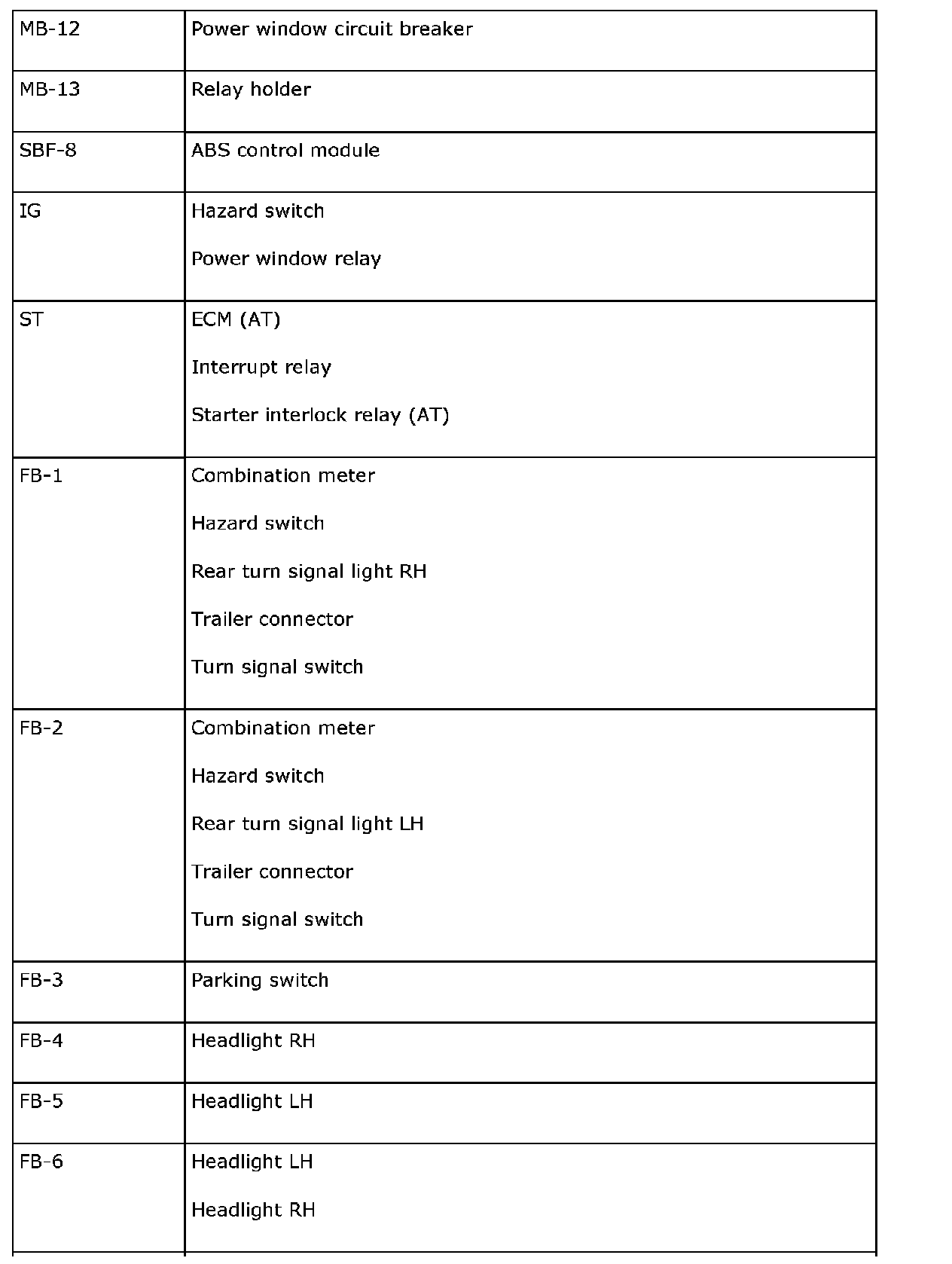

Diagram Legend MB-12 To FB-6:

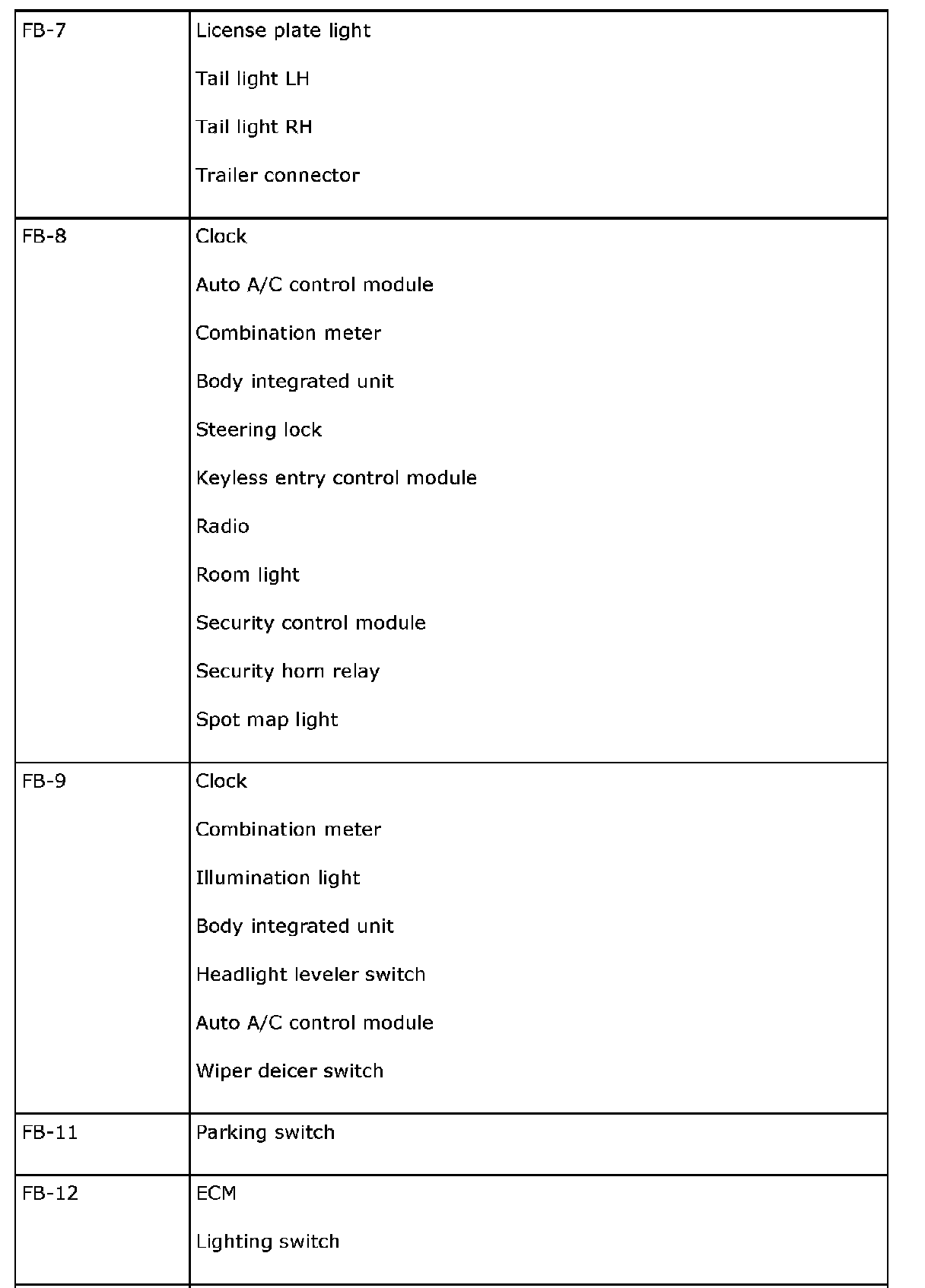

Diagram Legend FB-7 To FB-12:

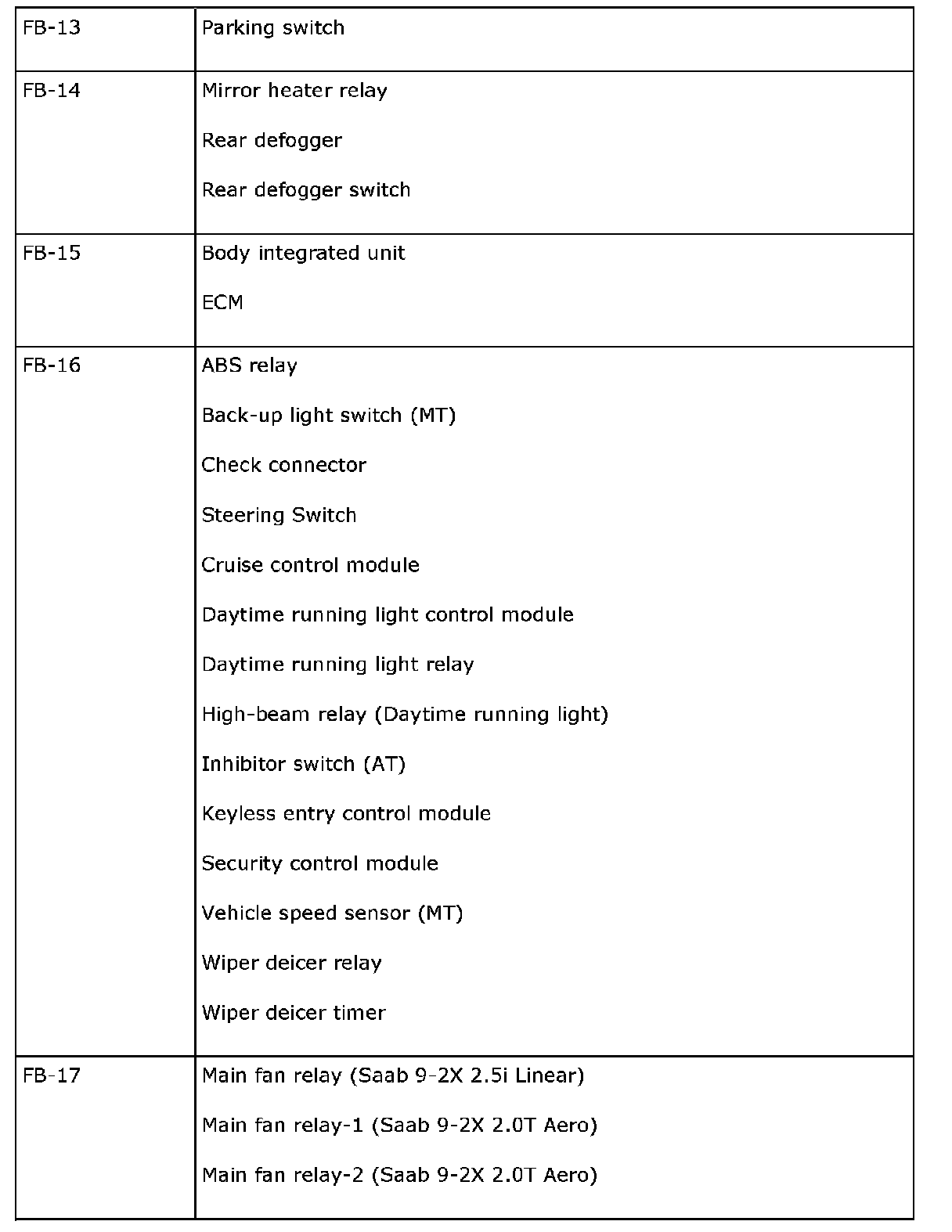

Diagram Legend FB-13 To FB-17:

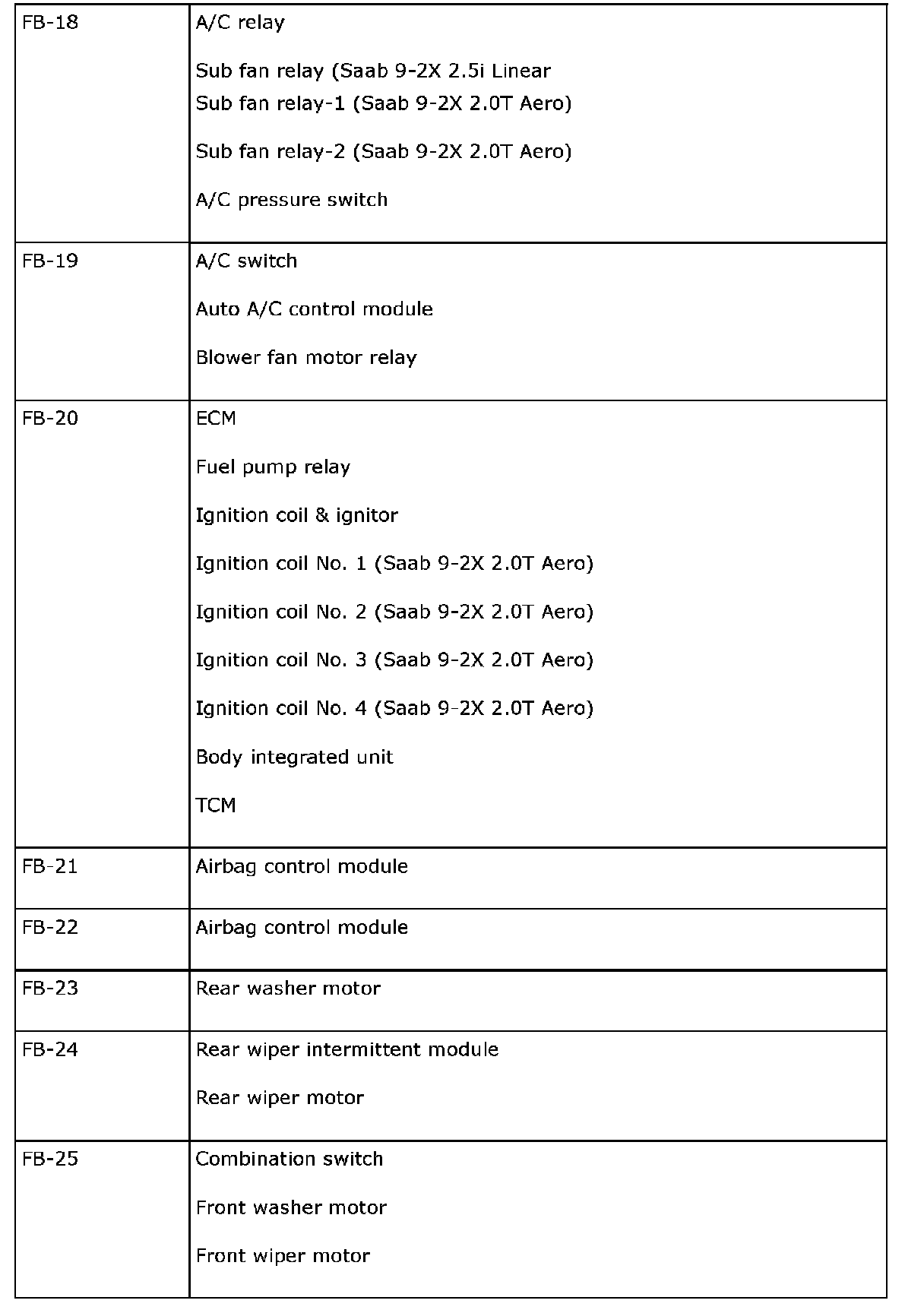

Diagram Legend FB-18 To FB-25:

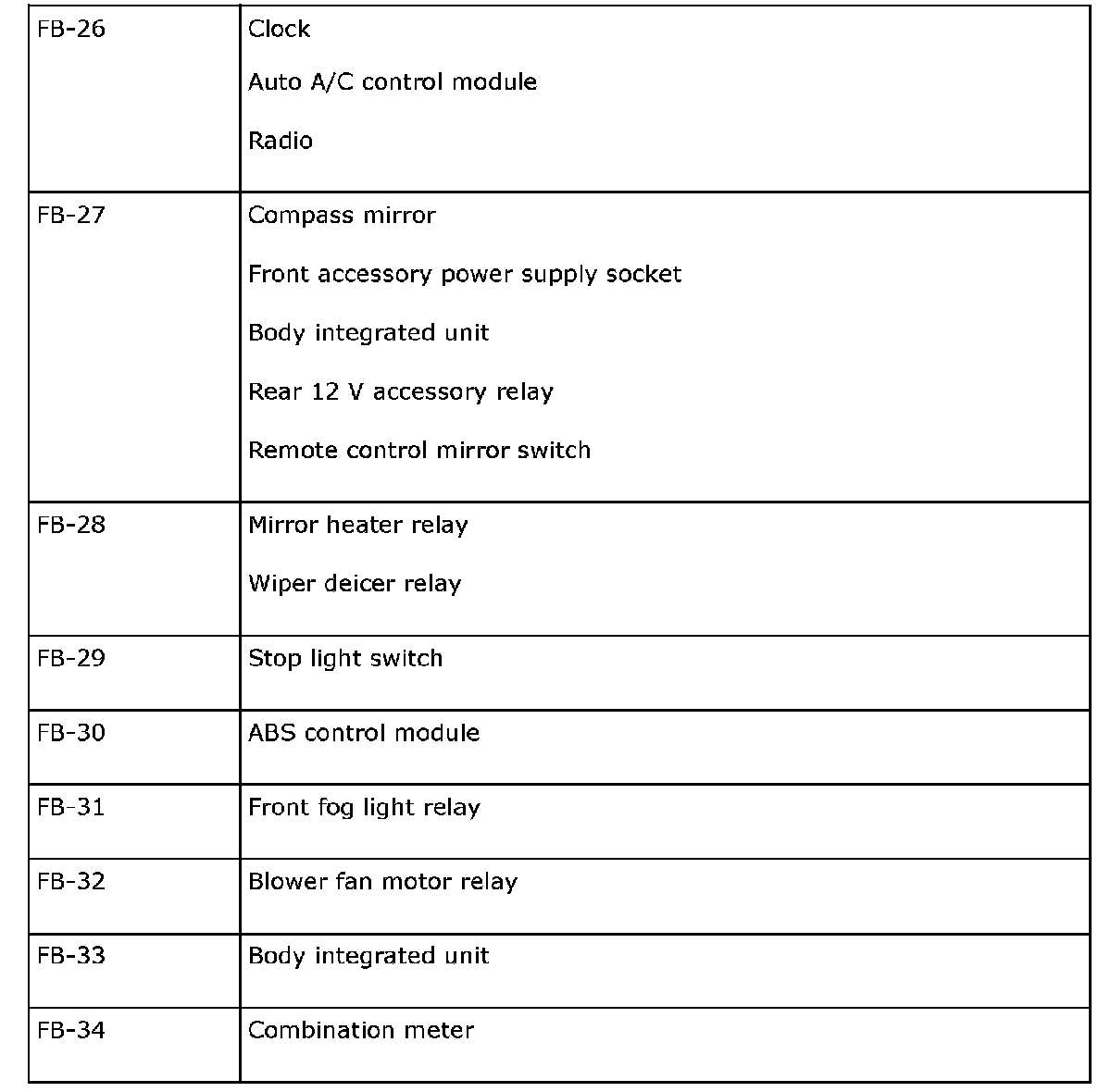

Diagram Legend FB-26 To FB-34:

Diagrams: Other diagrams referred to by name within these diagrams (i.e. "REF. TO GND-01", etc) can be found at Diagrams by Diagram Name. Diagrams By Diagram Name

Connector and Ground Locations: The locations of the Connectors or Grounds shown within these diagrams can be found via the connector or ground number at Vehicle Locations. Locations
