Home >> Saab >> 2005 >> 9-2X F4-2.0L Turbo >> Repair and Diagnosis >> Diagrams >> Connectors >> Connectors By Number >> I1-I59

I1-I59



INSTRUMENT PANEL WIRING HARNESS

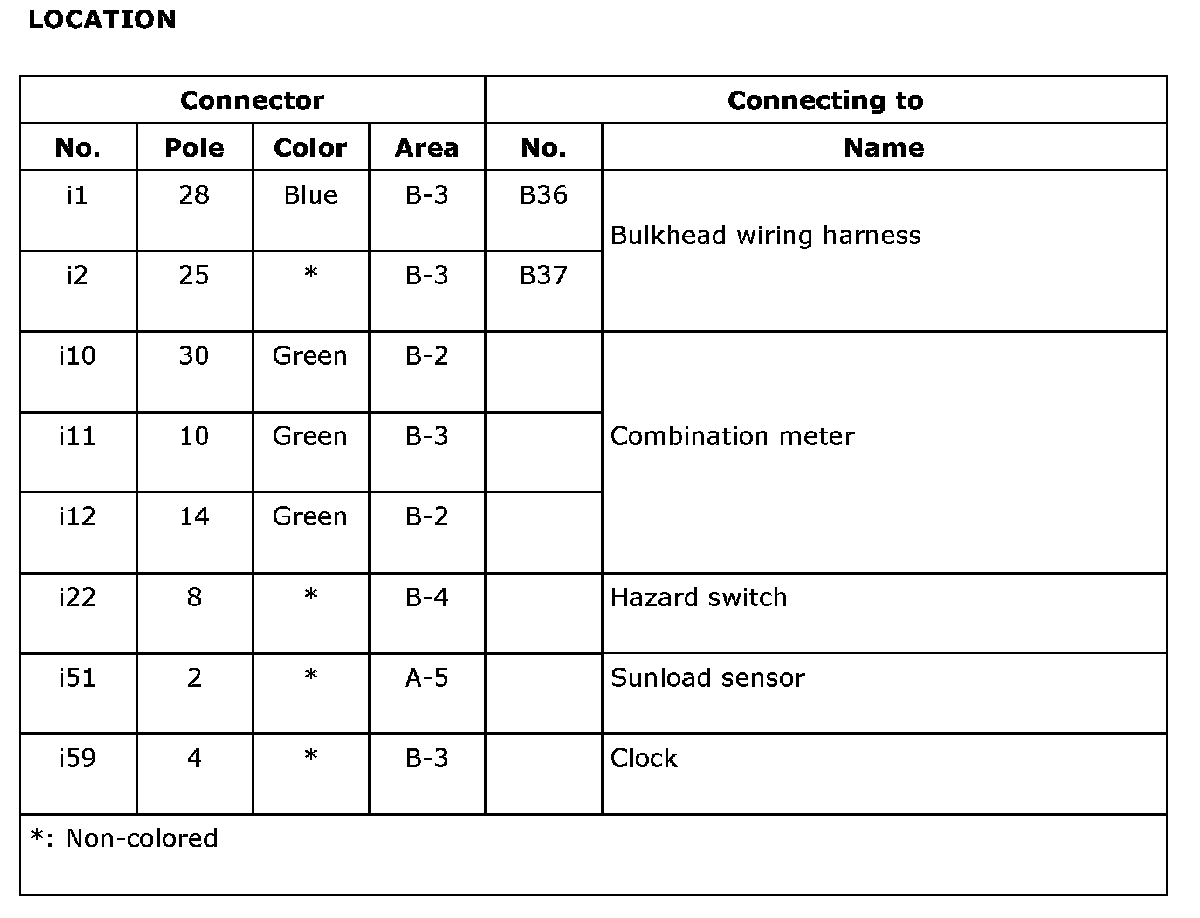

i1-i59:




Area View:
