Rear Wiring Harness and Rear Gate Cord
Rear Wiring Harness and Rear Gate Cord
REAR WIRING HARNESS AND REAR GATE CORD

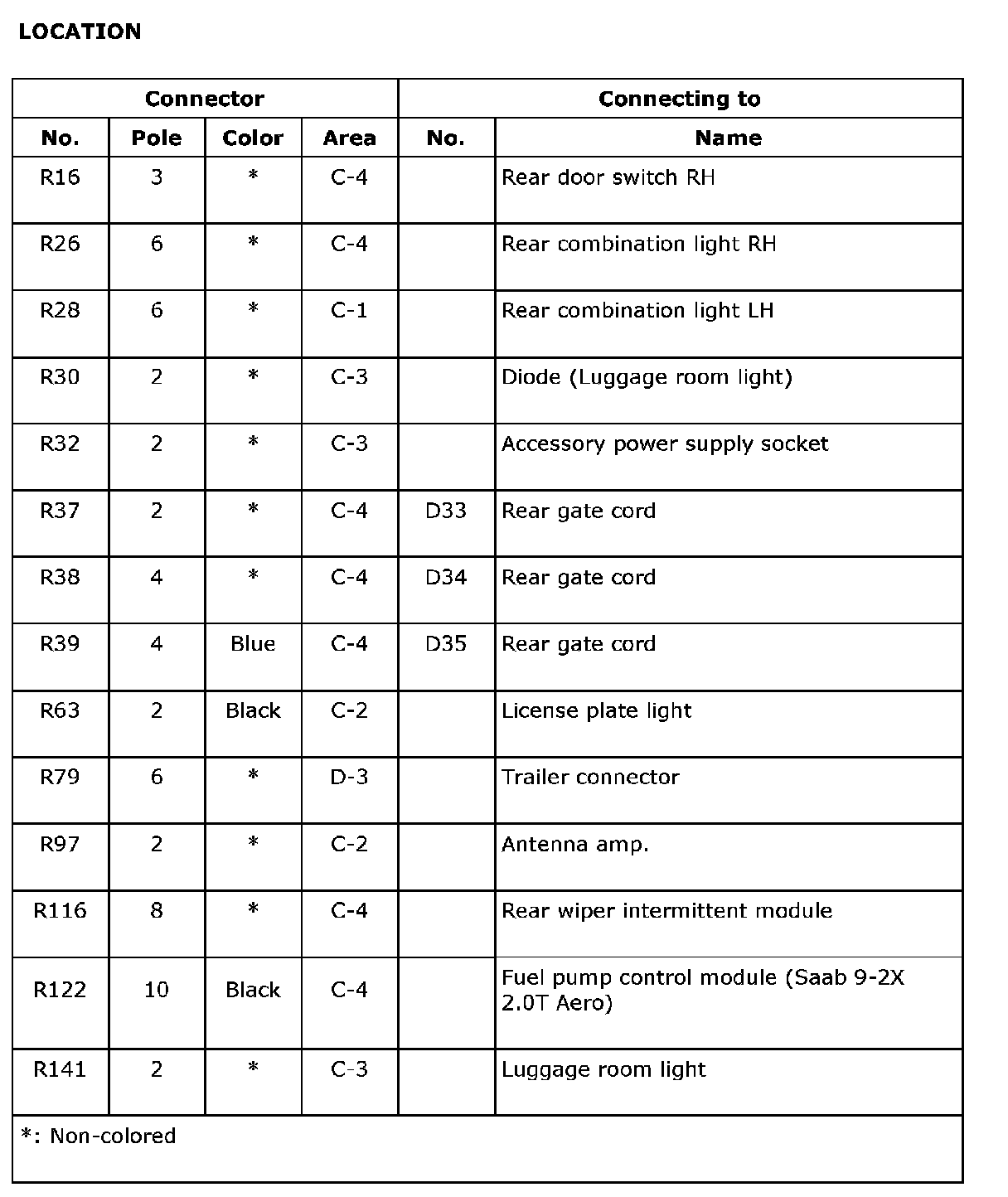

R16-R141:
D33-D114:
Area View:
