Brake Pad: Testing and Inspection

DISC BRAKE PAD INSPECTION
^ Jack-up the vehicle and support with rigid racks. Then remove the wheels.

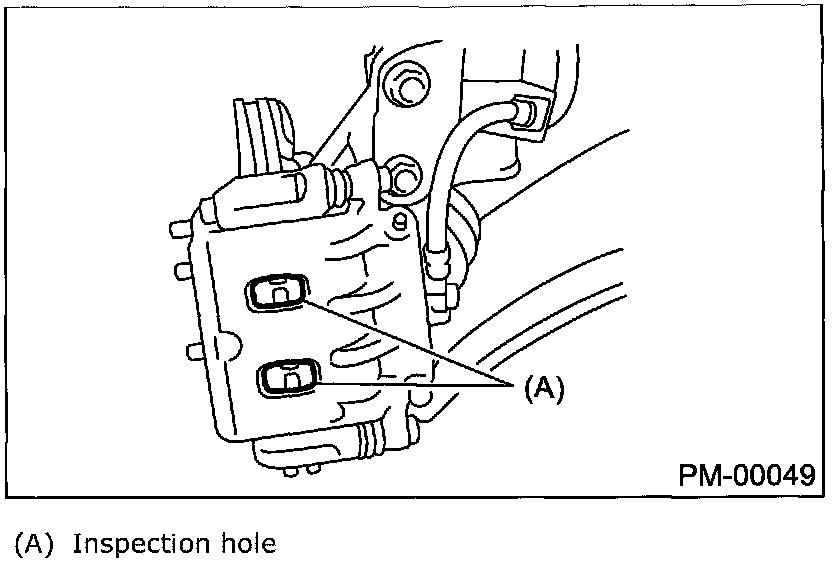

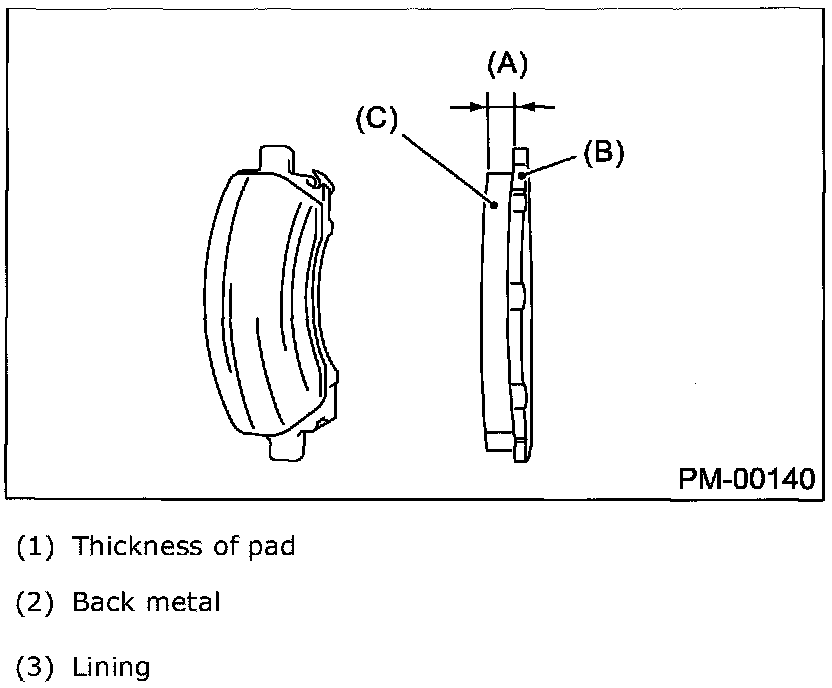

^ Visually check the pad thickness through inspection hole of disc brake assembly. Replace the pad if necessary.

NOTE: When replacing a pad, always replace the pads for both the right and left wheels at the same time. Also replace the pad clips if they are twisted or worn.

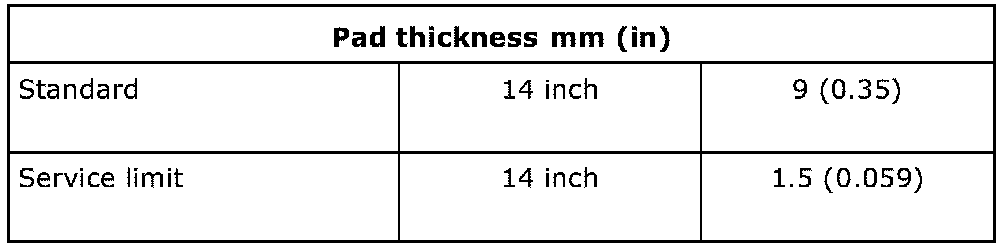

Front pad specifications

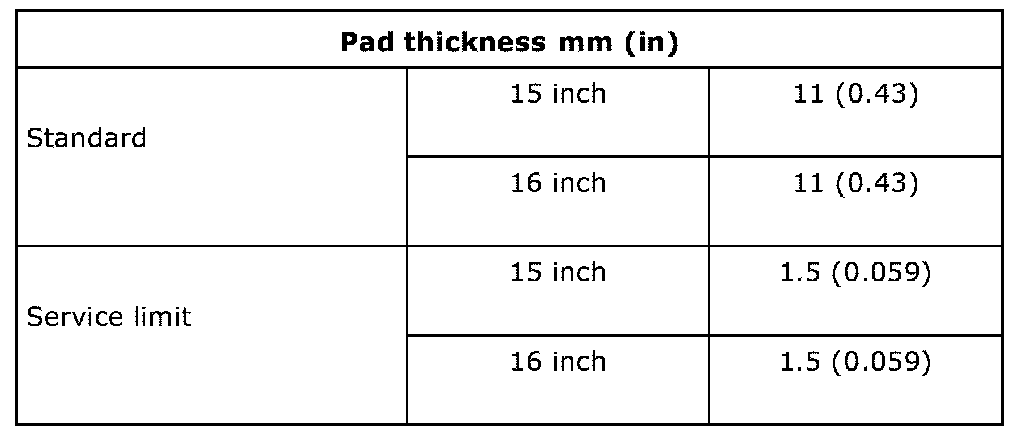

Rear pad specifications
