ABS Warning Light Does Not GO Off
ABS WARNING LIGHT DOES NOT GO OFFDETECTING CONDITION:
^ Defective combination meter
^ Open in harness
TROUBLE SYMPTOM:
When starting the engine, the ABS warning light is kept on.

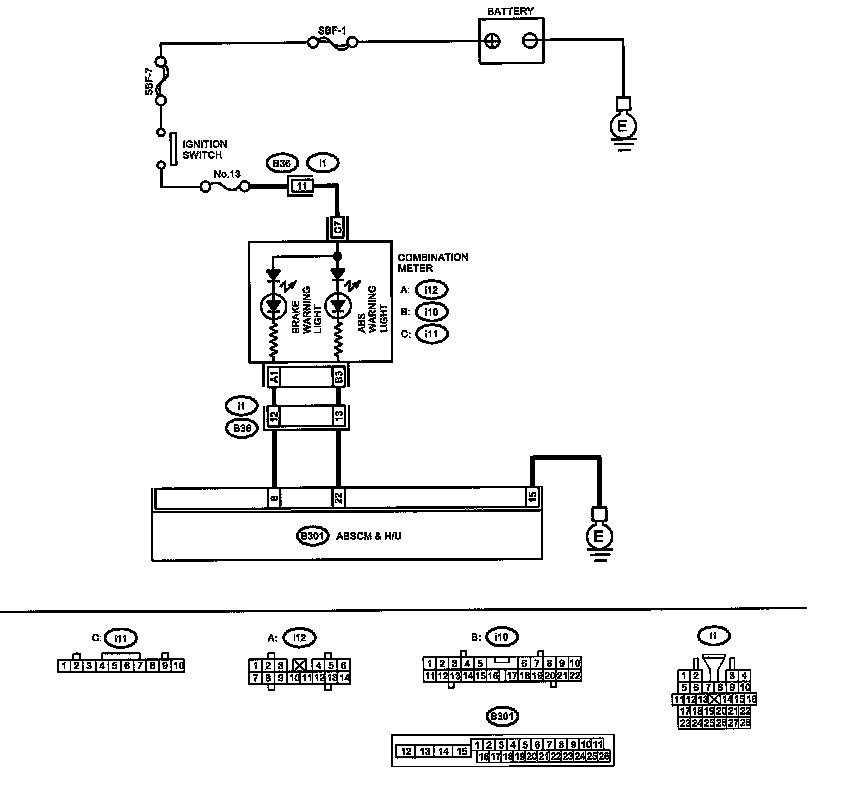

WIRING DIAGRAM:
READ DTC.
Read the DTC.
Is DTC displayed?
Perform the diagnosis according to DTC.
CHECK WIRING HARNESS.
Turn the ignition switch to OFF.
Disconnect the connector (B301) from ABSCM&H/U.
Disconnect the connector (i10) from the combination meter.
Measure the resistance between ABSCM connector and combination meter connector.
Connector & terminal
(B301) No. 22 - (i10) No. 3:
Is the resistance less than 0.5 Ohms?
Repair harness and connector between ABSCM&H/U and combination meter connector.
CHECK POOR CONTACT IN CONNECTOR.
Check poor contact in all connectors.
Is there poor contact?
Repair the connector.
CHECK ABSCM.
Connect the connector (B301) to the ABSCM&H/U.
Turn the ignition switch to ON.
Measure the resistance between combination meter connector and chassis ground.
Connector & terminal
(i10) No. 3 - Chassis ground:
Is the resistance less than 0.5 Ohms?
Check the combination meter.
Replace the ABSCM only.
