Rear Seat

REMOVAL

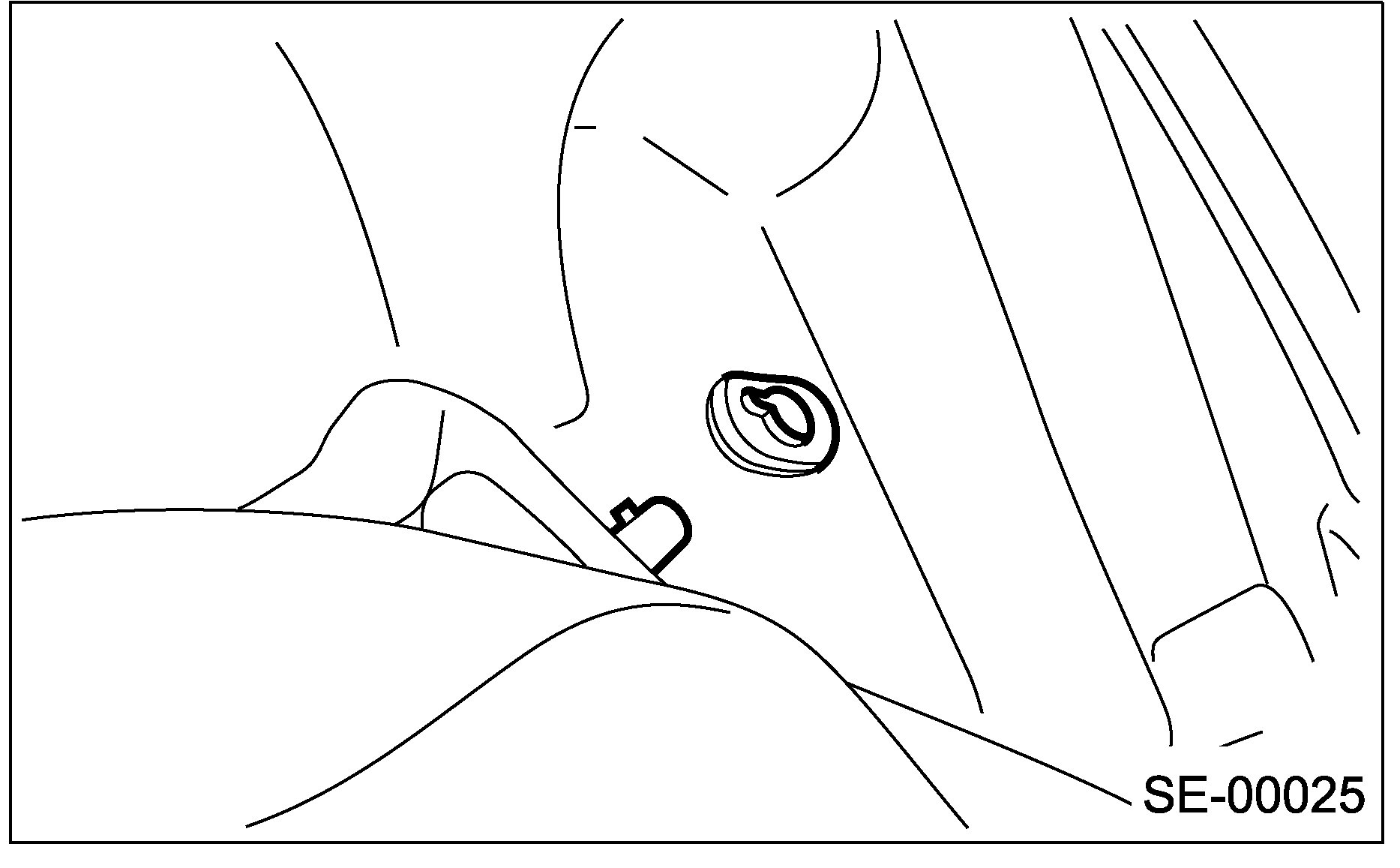

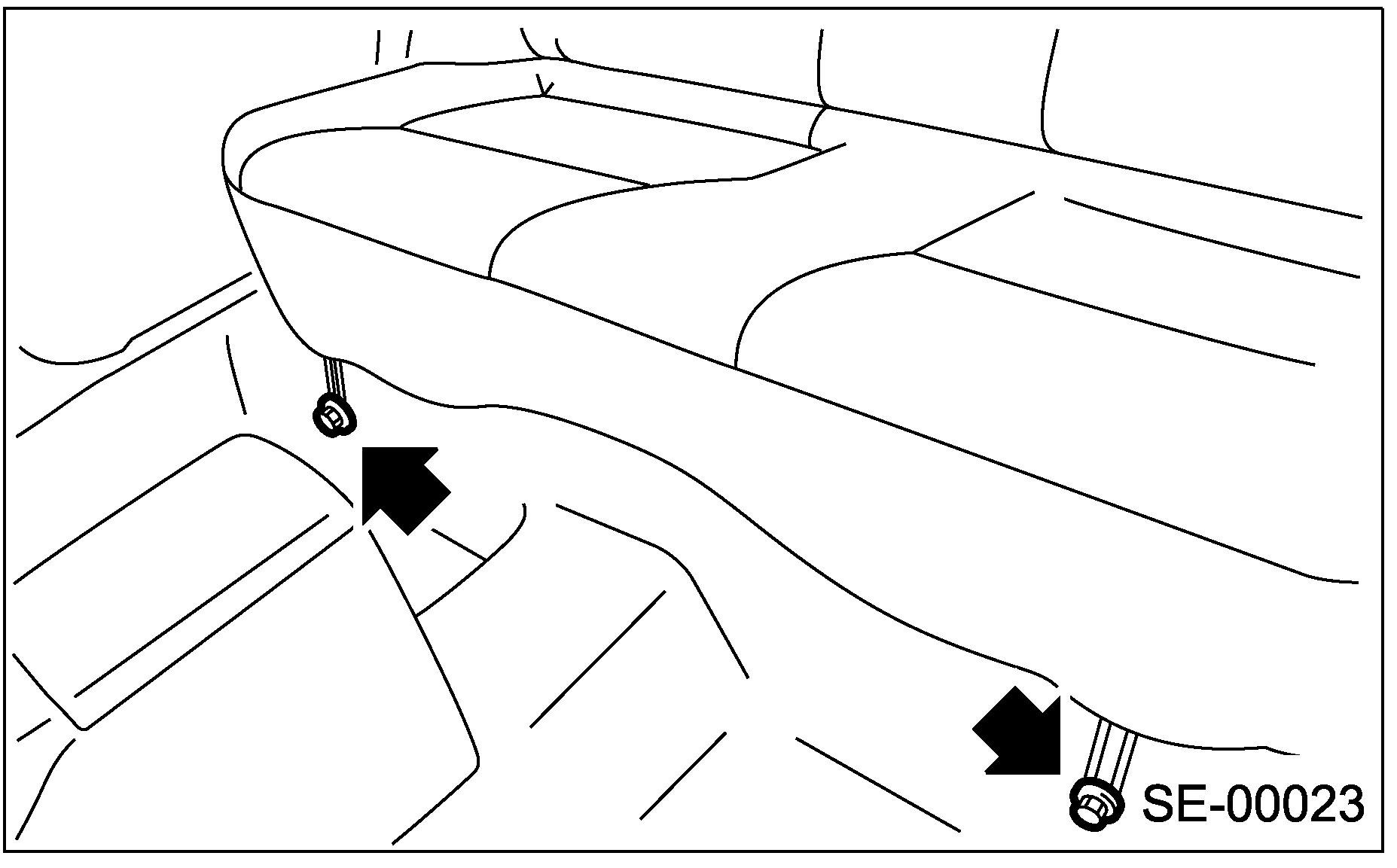

Remove the bolt caps and bolts, and then detach the rear seat cushion.

Remove the headrest.
Remove the luggage floor mat.

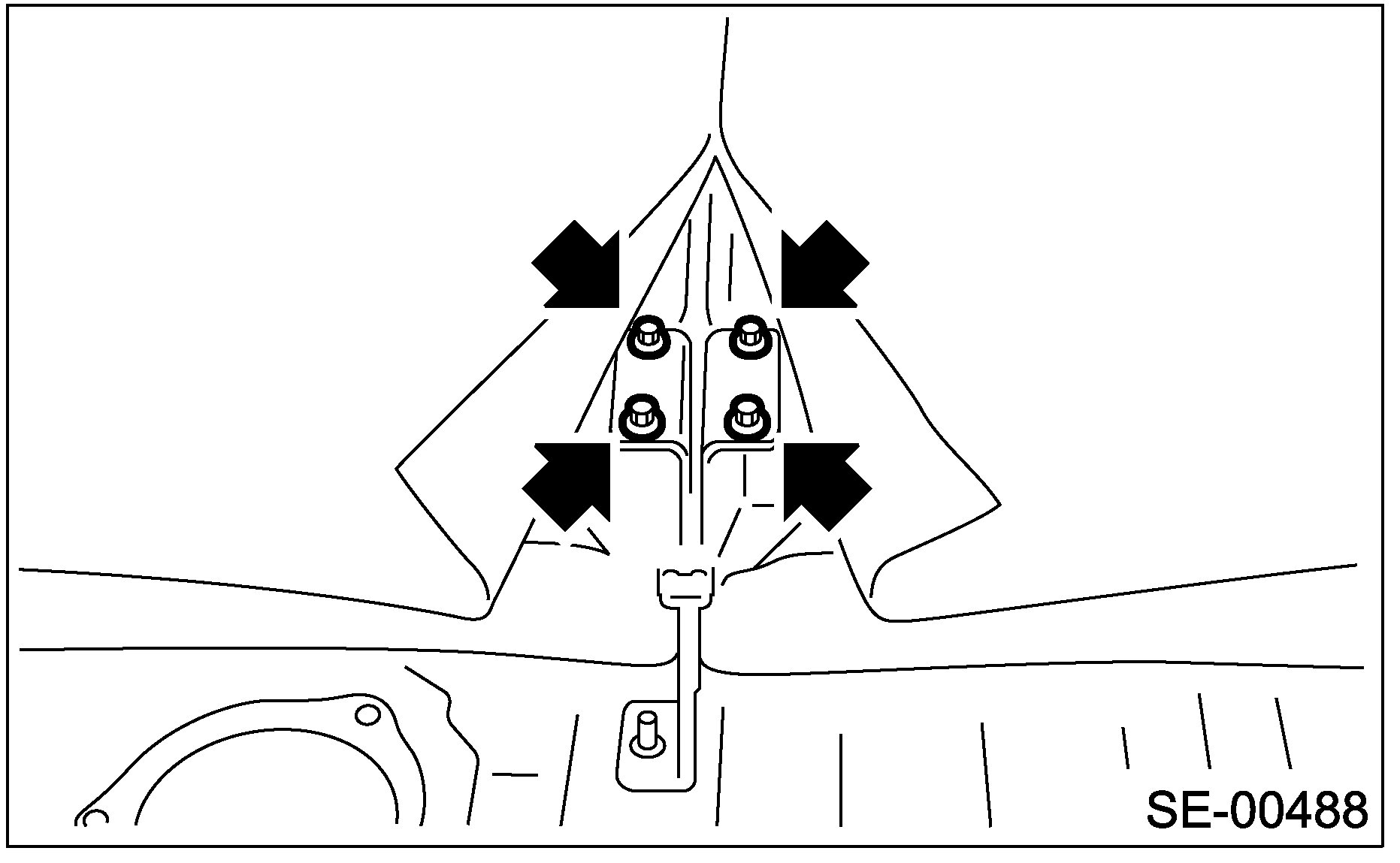

Turn over the mat to remove the bolts.

Remove the rear seat backrest.

INSTALLATION

Install in the reverse order of removal.
