Sunroof / Moonroof Panel: Service and Repair

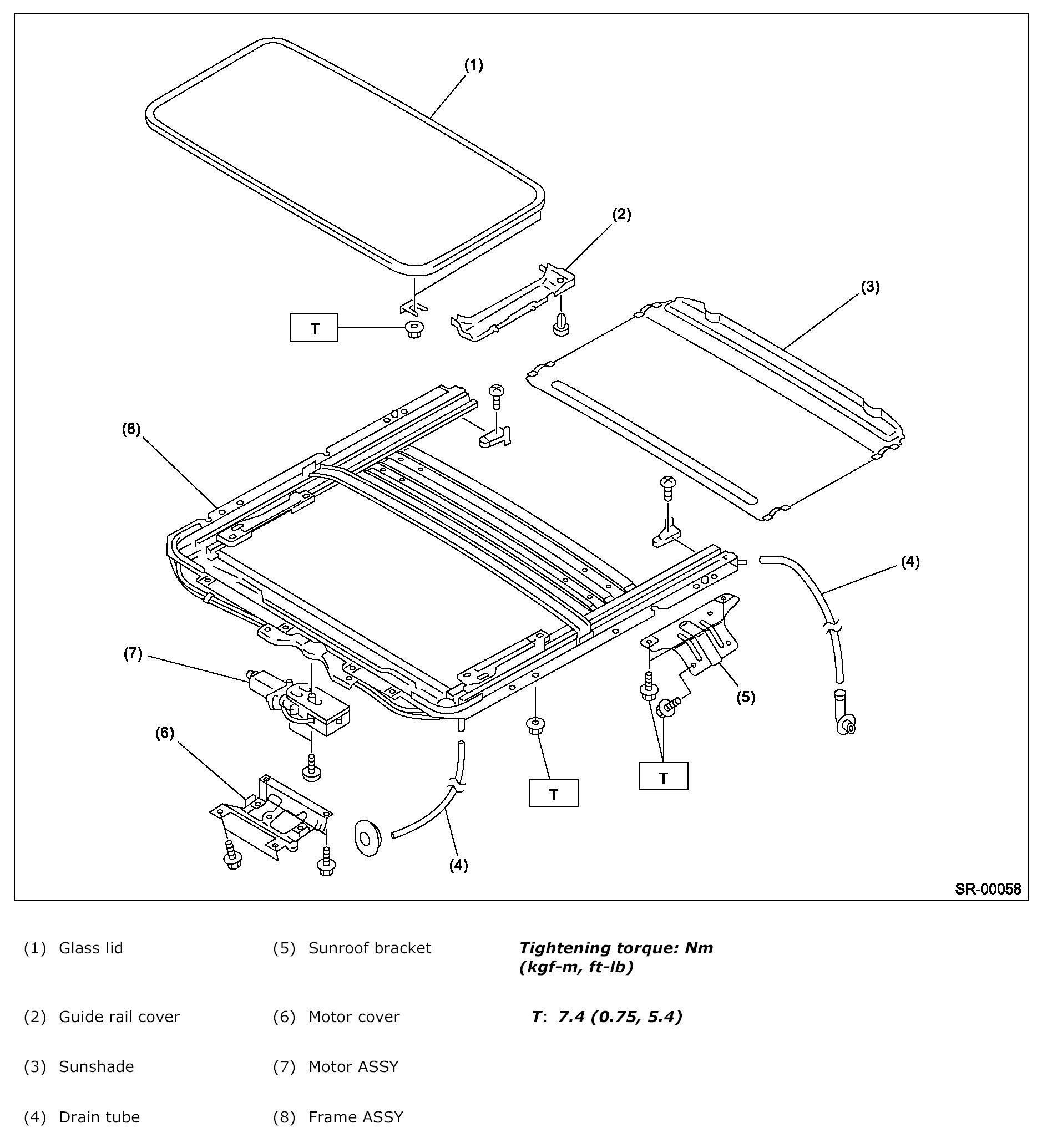

Component:

REMOVAL

Completely close the glass lid and open the sunshade.

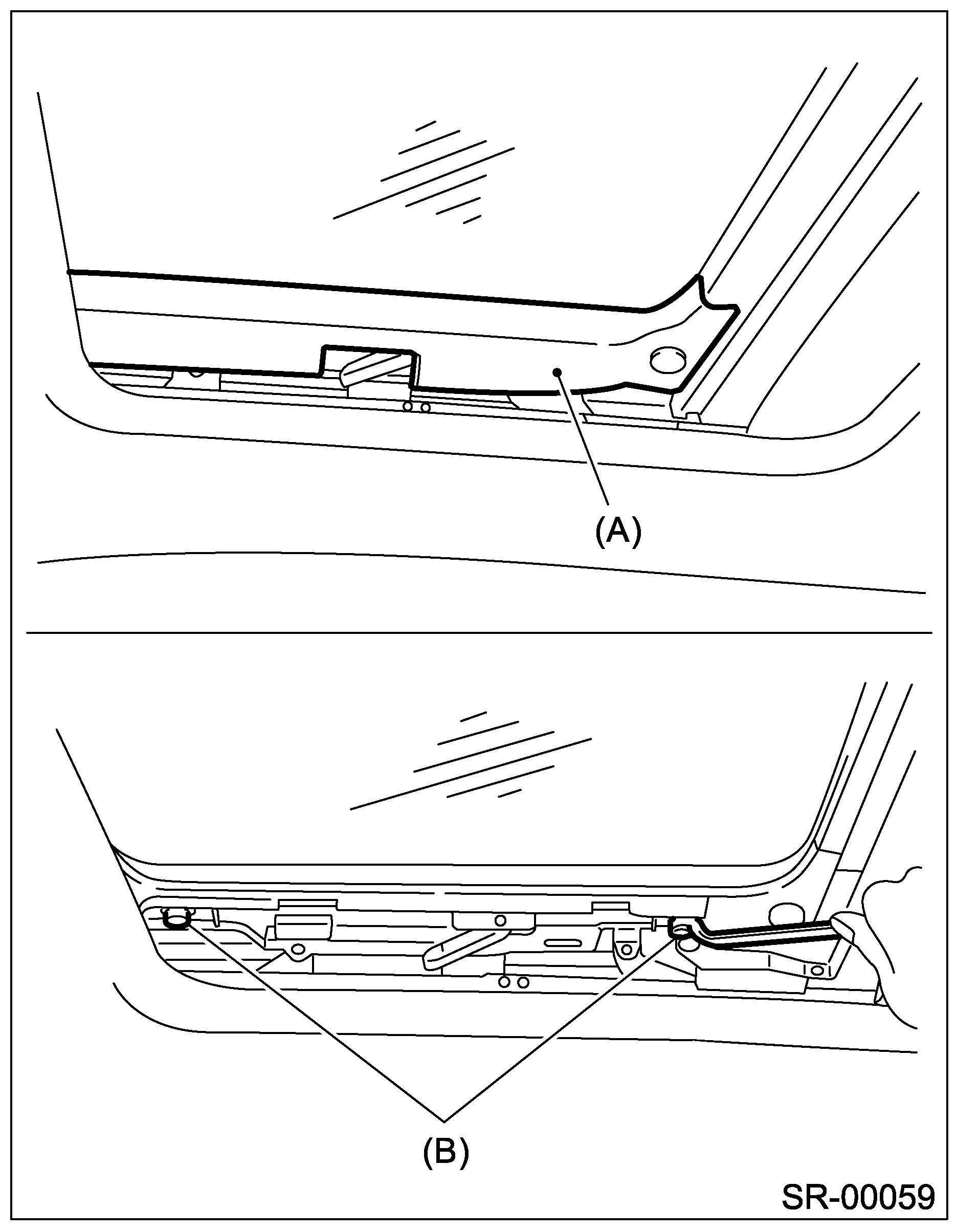

Remove the cover (A) then remove the nuts (B).







Remove the glass lid carefully.

INSTALLATION

Install in the reverse order of removal.
