Sunroof / Moonroof Panel: Adjustments

ADJUSTMENT

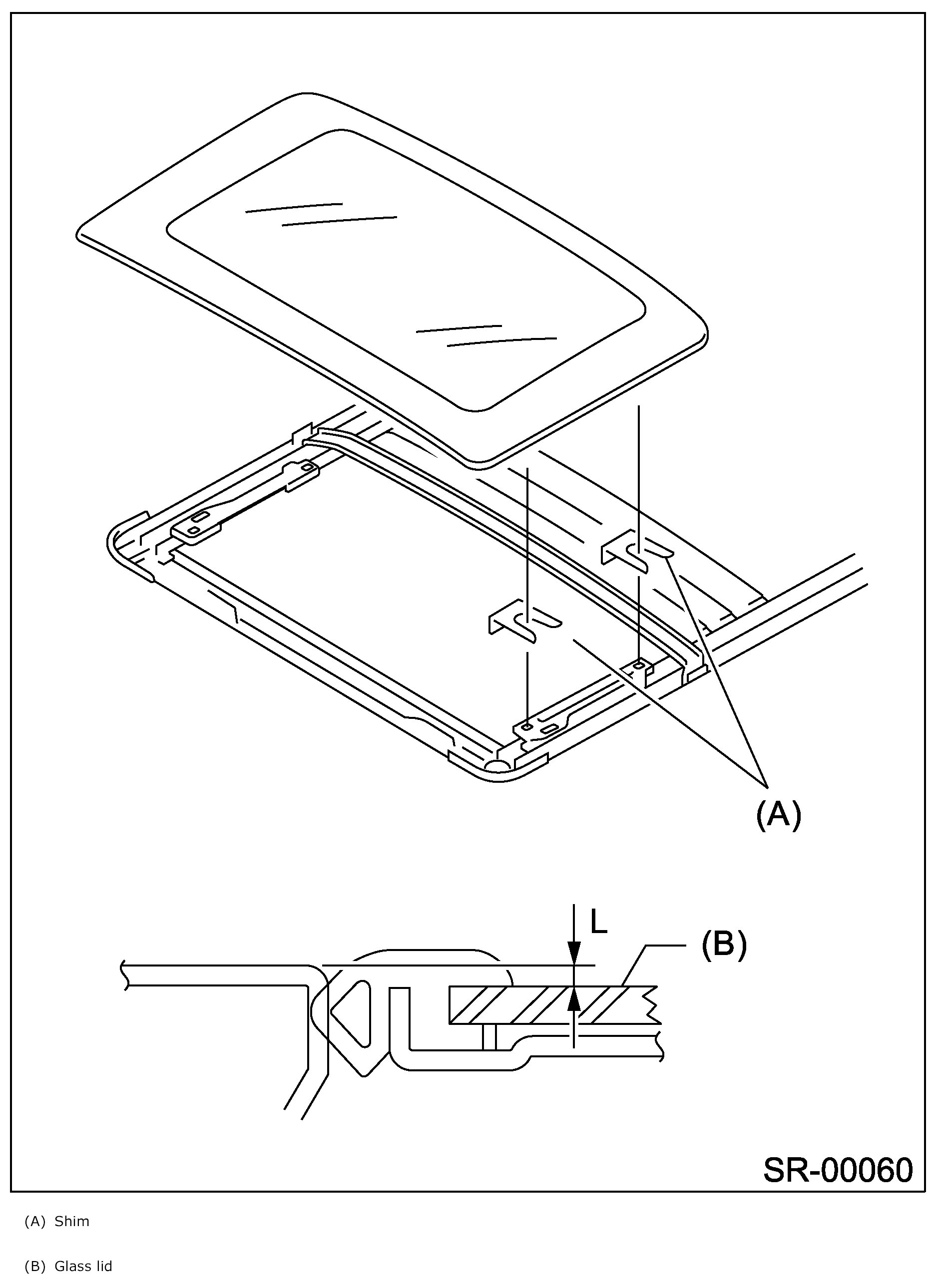

ALIGNMENT OF HEIGHT BETWEEN GLASS LID AND ROOF PANEL

Loosen the glass lid installation nuts and then adjust the height by adding (max: three pieces) or extracting (min: zero pieces) shims (standard: one piece).
Difference in height between glass lid and roof panel L: 2.0±0.5 mm (0.079±0.020 in)
