Sunroof / Moonroof Motor: Service and Repair

Sunroof Motor

Removal

IMPORTANT:
- When removing the clip, use great care to not damage the roof trim.
- Never rotate the sunroof motor after removing it.

Completely close the sunroof.
Disconnect the ground cable from battery.
Remove the glass lid.

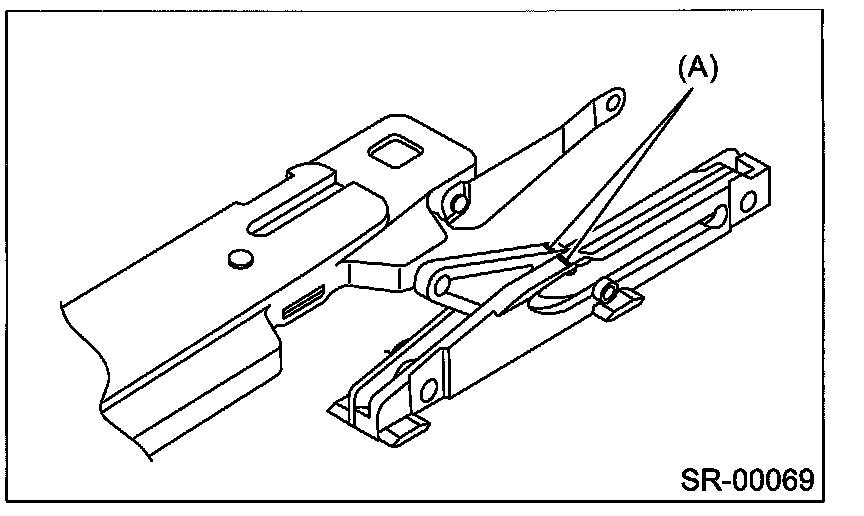

Confirm the alignment mark (A) of sunroof bracket link and the guide from sunroof opening. (If the mark does not align, adjust to align the mark.)







Remove the roof trim.
Remove the motor cover.

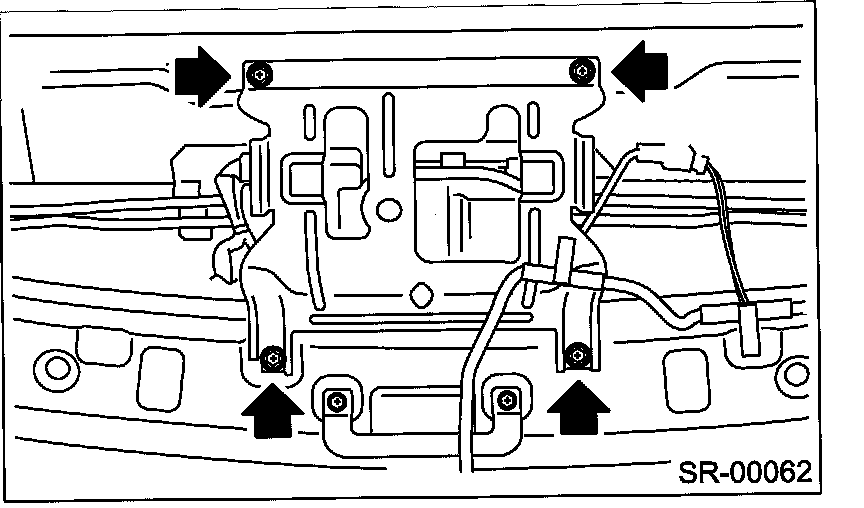

Disconnect the harness connector and remove the sunroof motor mounting screw.

Installation

IMPORTANT: Be careful not to move the sunroof cable when installing sunroof motor.

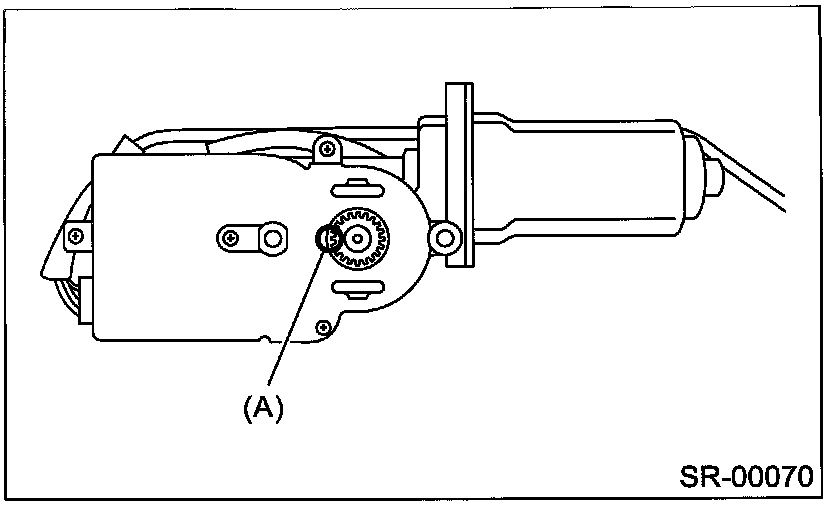

Check the alignment mark (A) of sunroof motor.

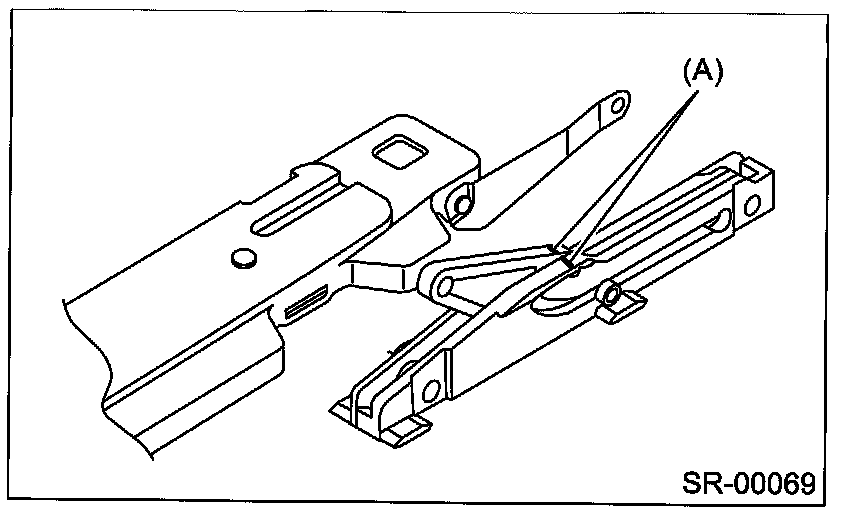

Confirm the alignment mark (A) of sunroof bracket link.







Install the sunroof motor.
After installing the motor, reconfirm the alignment marks of motor side and sunroof bracket link side.
Connect the sunroof motor harness connector and then connect the battery ground cable.

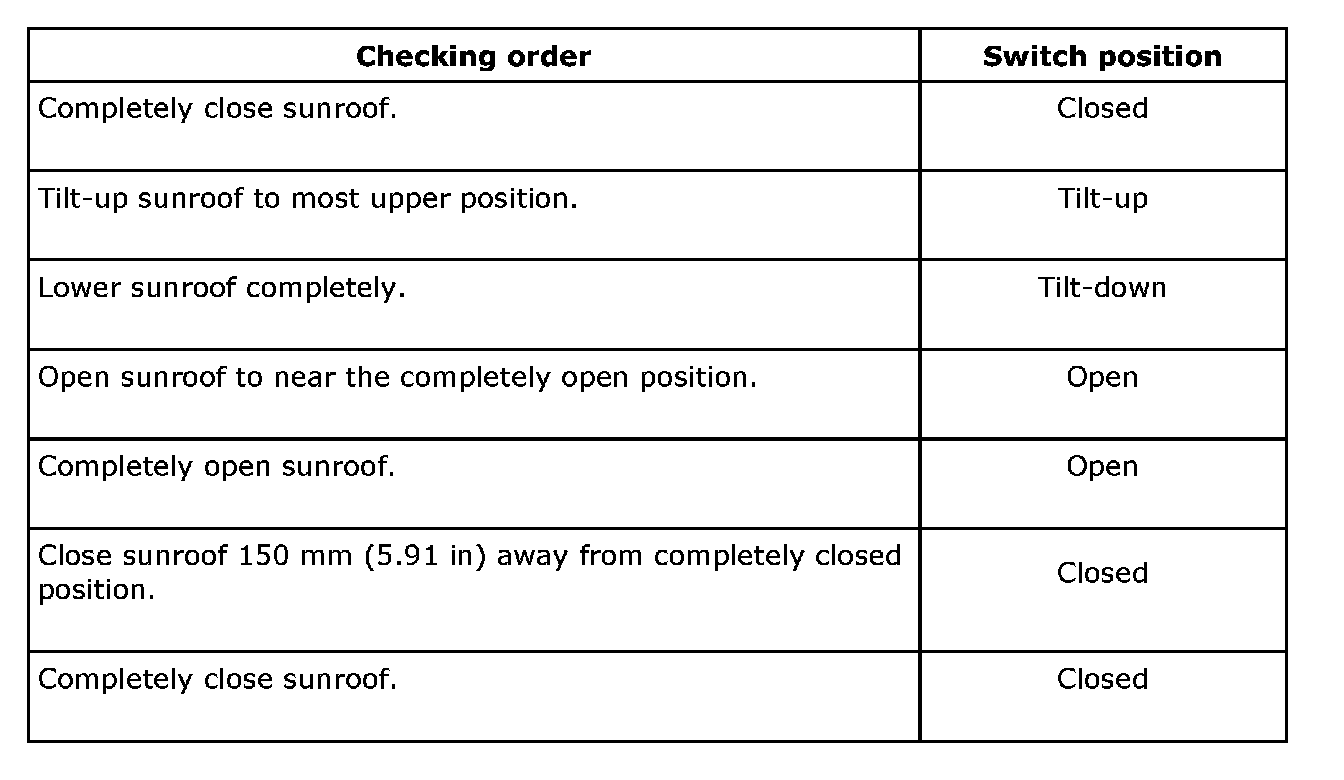

Check the sunroof operation with the procedure as shown in the table.







Install the glass lid and trims in the reverse order of removal.
