Sunroof Assembly

Sunroof Assembly

Removal
Disconnect the ground cable from battery.
Remove the roof trim.
Remove the glass lid.
Disconnect the drain tubes from sunroof frame.

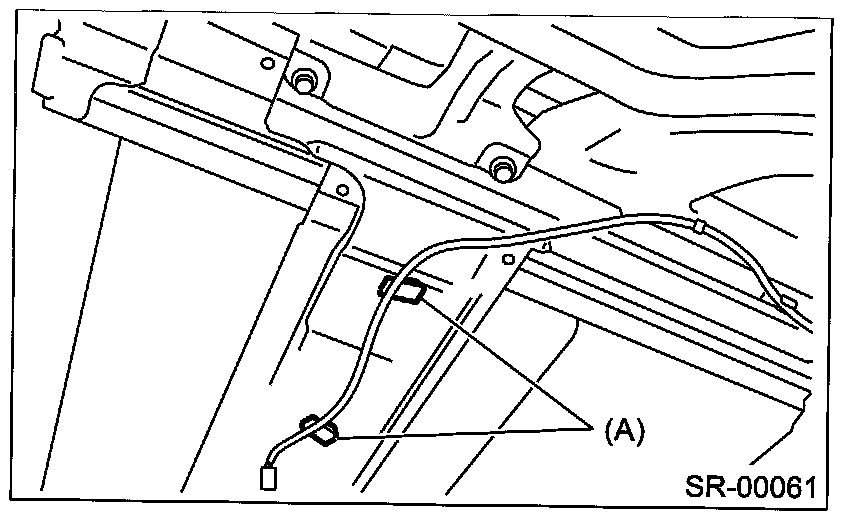

Remove the room lamp harness clip (A).







Disconnect the sunroof harness connector.

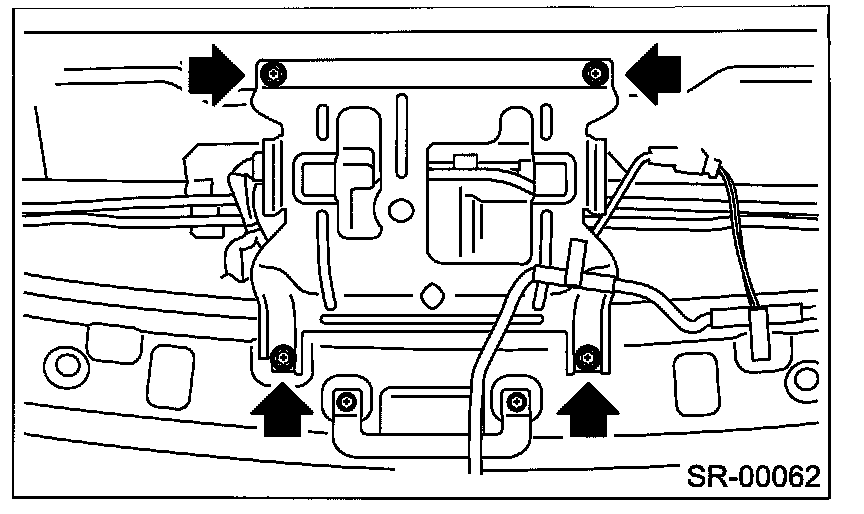

Remove the motor cover.

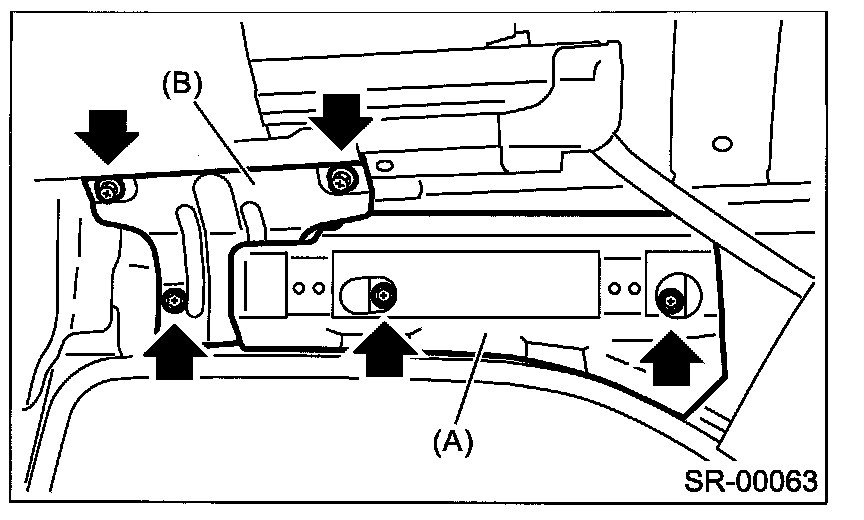

Remove the assist grip bracket (A) and sunroof bracket (B).

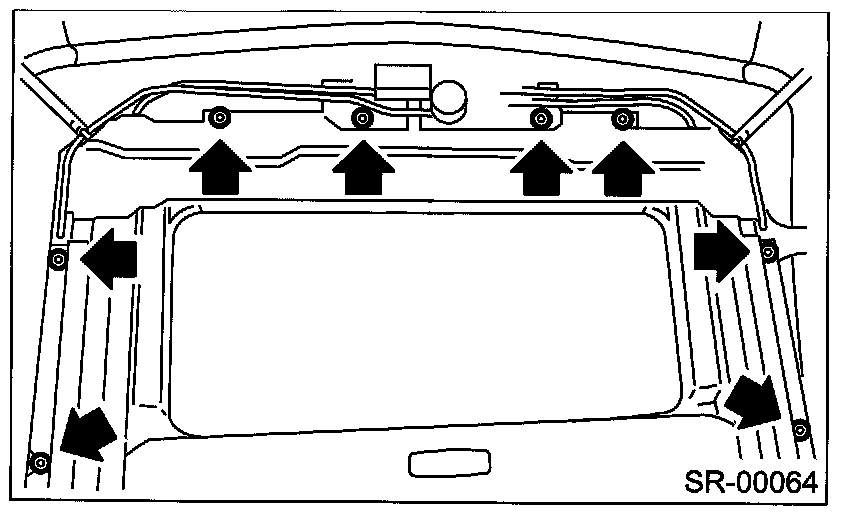

Remove the nuts then detach the sunroof frame.







Installation
Install in the reverse order of removal.

IMPORTANT: Be careful not to snag the harness.

NOTE:
- Make sure to connect the harness connector.
- When installing the drain tube, insert it securely onto drain pipe.

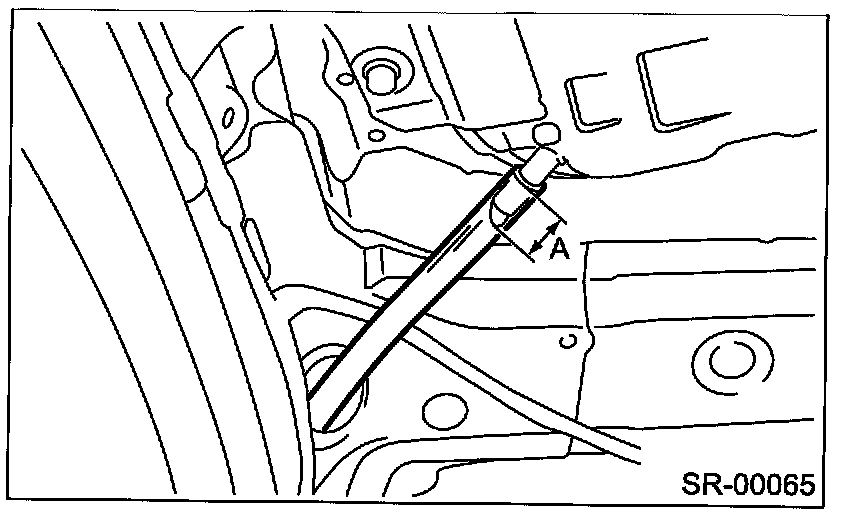

Length A: 15 mm (0.59 in) or more
