Component Tests and General Diagnostics

INSPECTION

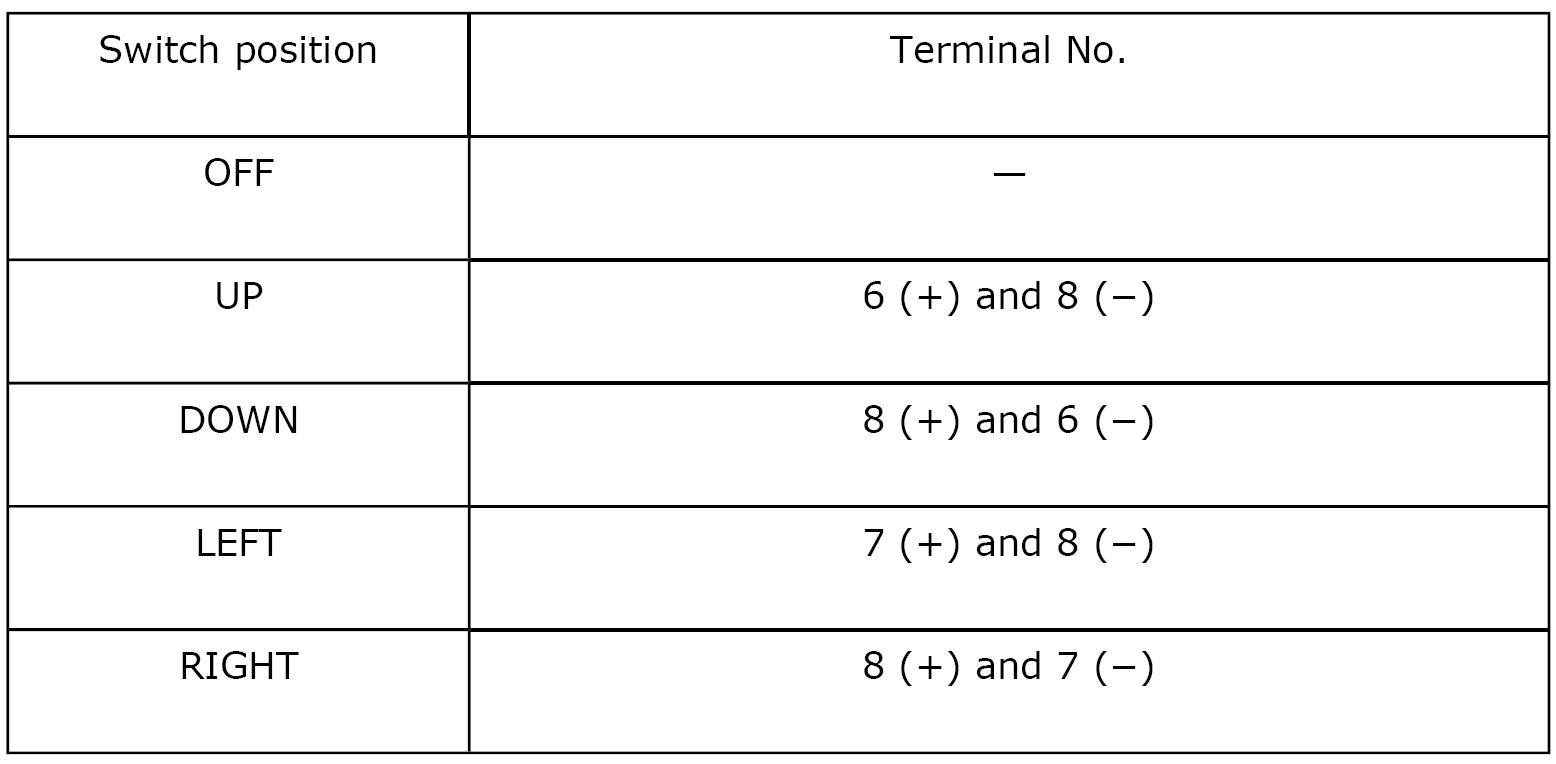

Check to ensure that the outer mirror moves properly when battery voltage is applied to terminals.

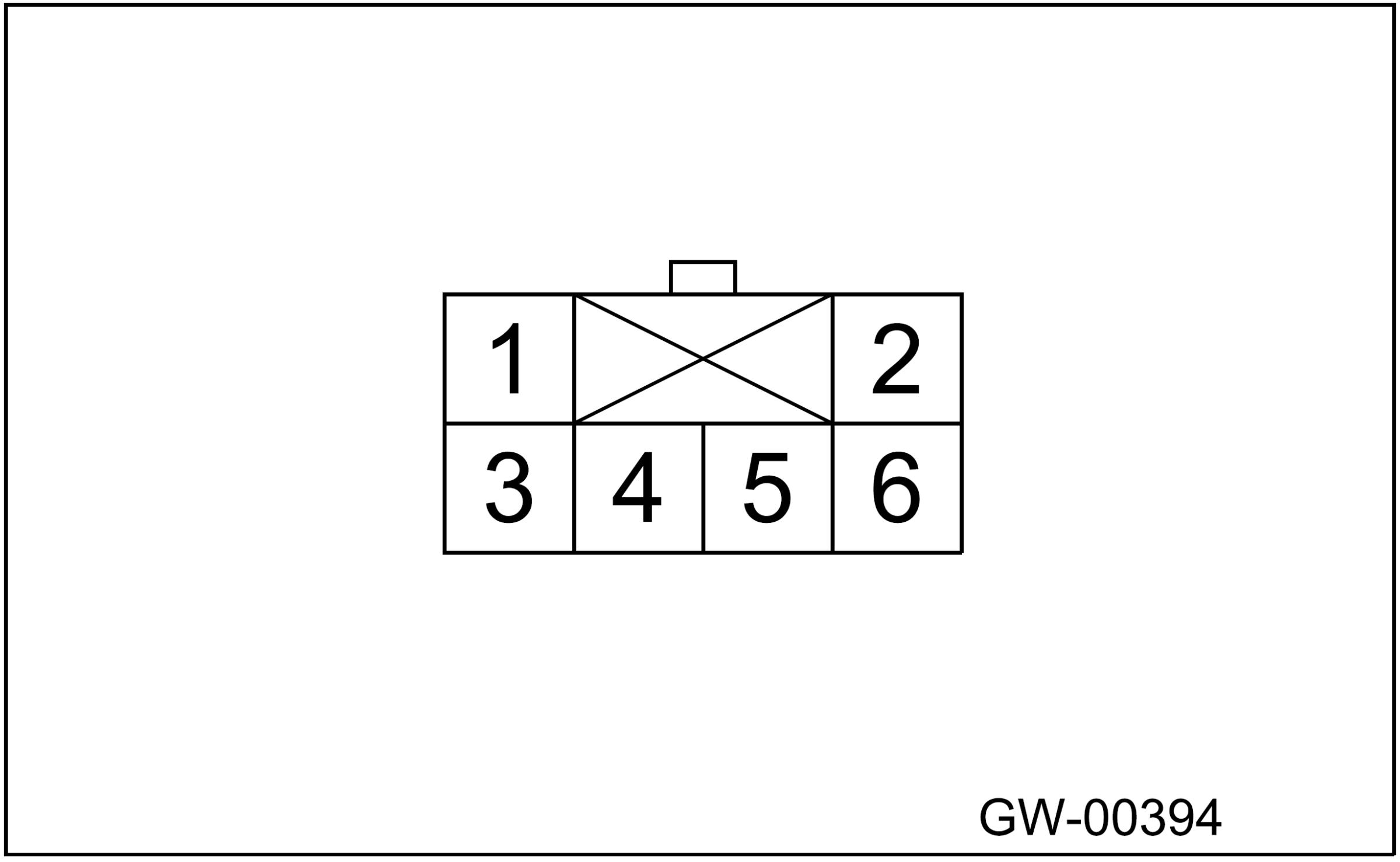

- Mirror heater not-equipped model:










If NG, replace the outer mirror.

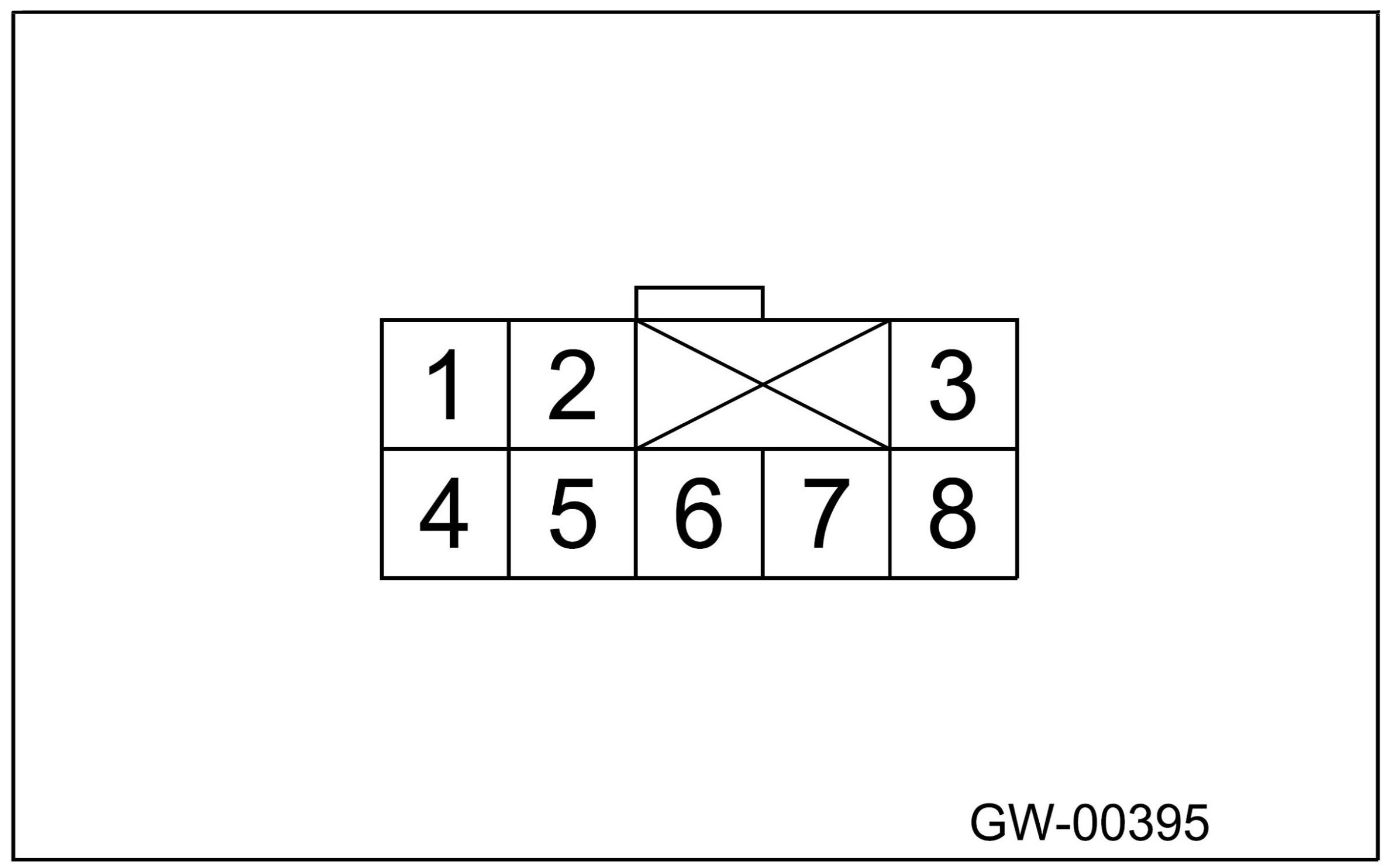

- Mirror heater equipped model:










If NG, replace the outer mirror.
