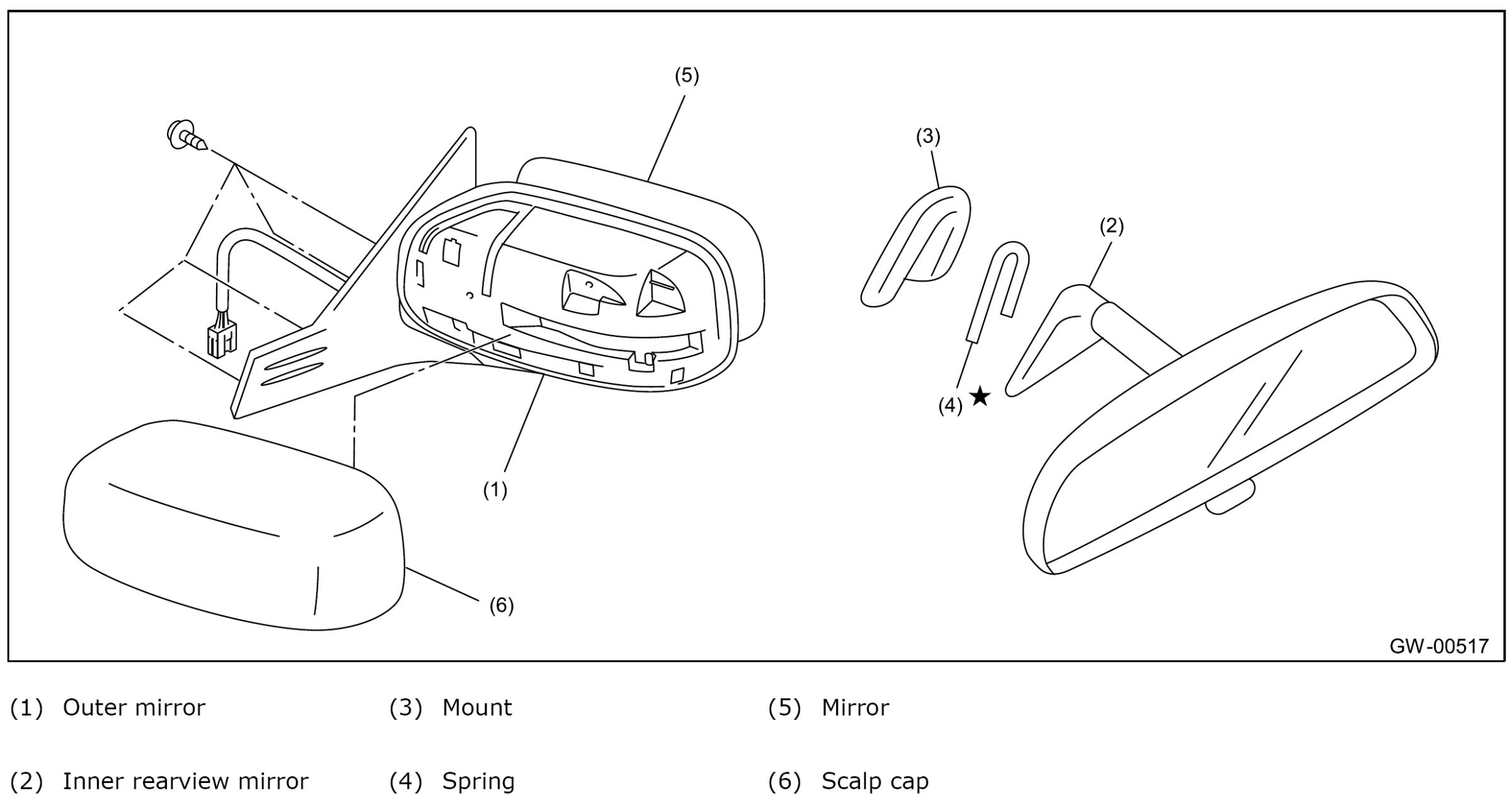

Scalp Cap
Scalp Cap
Mirror:
REPLACEMENT
Turn the mirror downward.

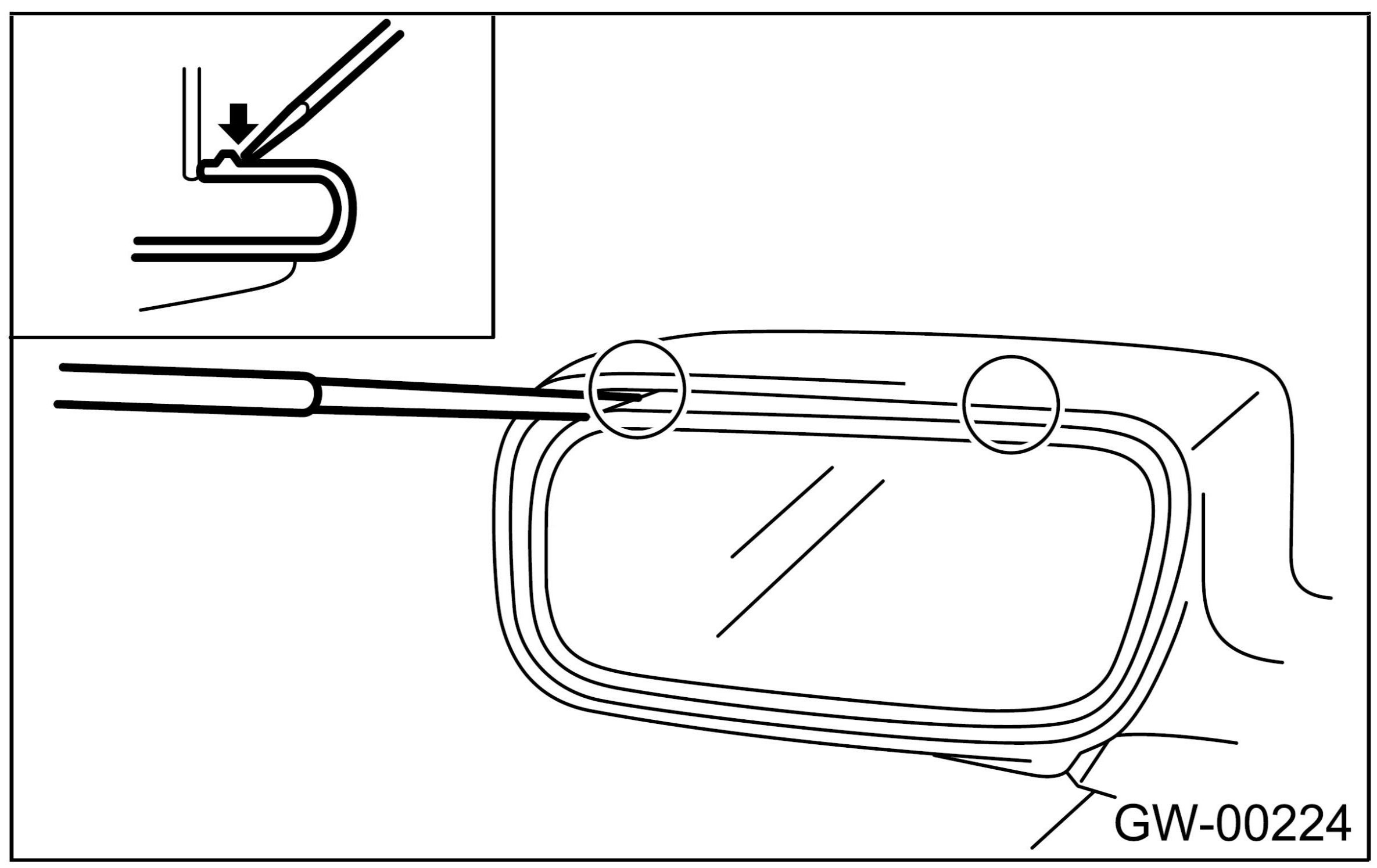

Insert a thin screw driver, push the clip part of scalp cap, and remove the scalp cap.

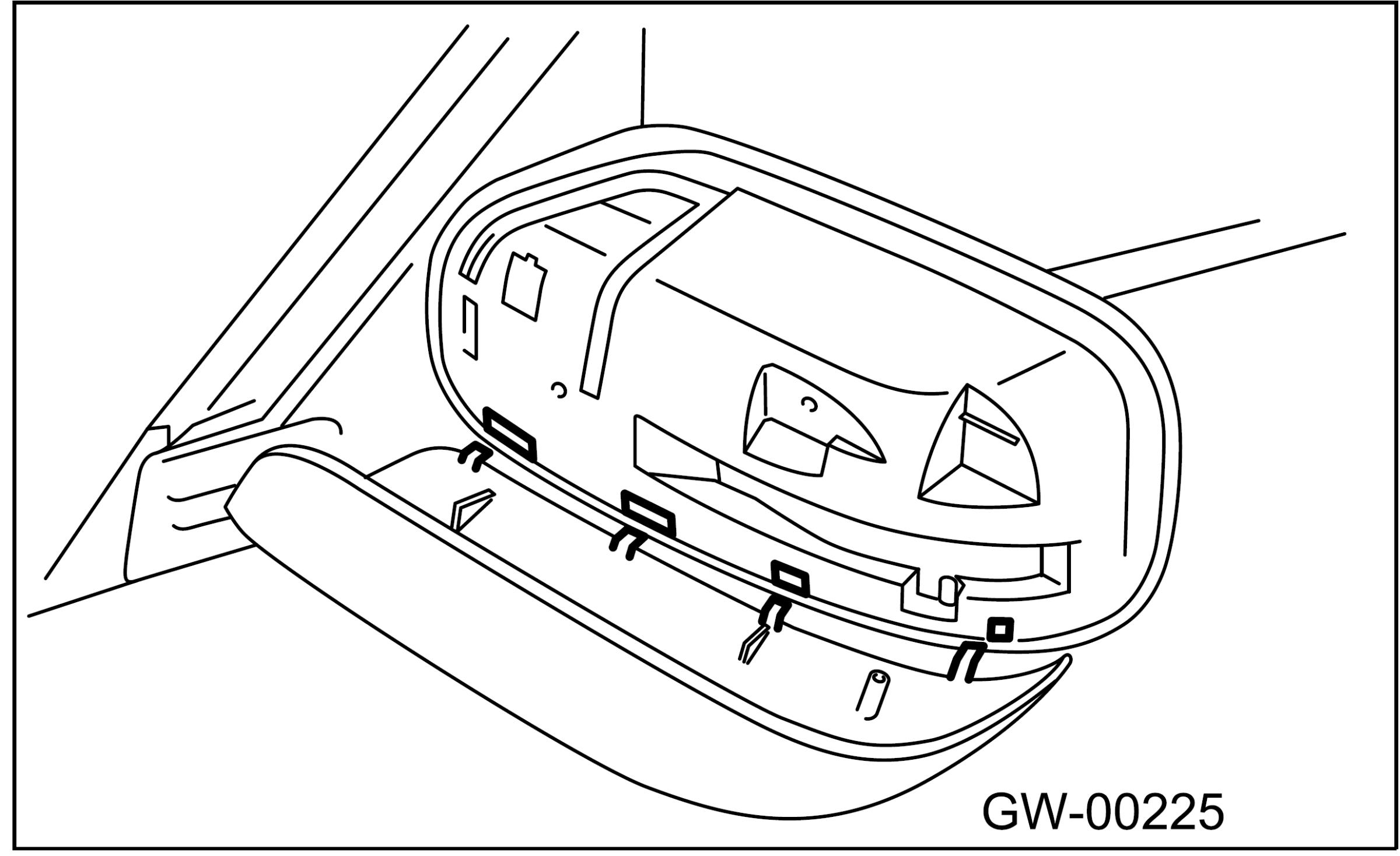

Insert the claw at the bottom of scalp cap into outer mirror.
Install the scalp cap securely.
