Front Inner Remote



Front Inner Remote

Removal
Remove the door trim.
Remove the sealing cover.

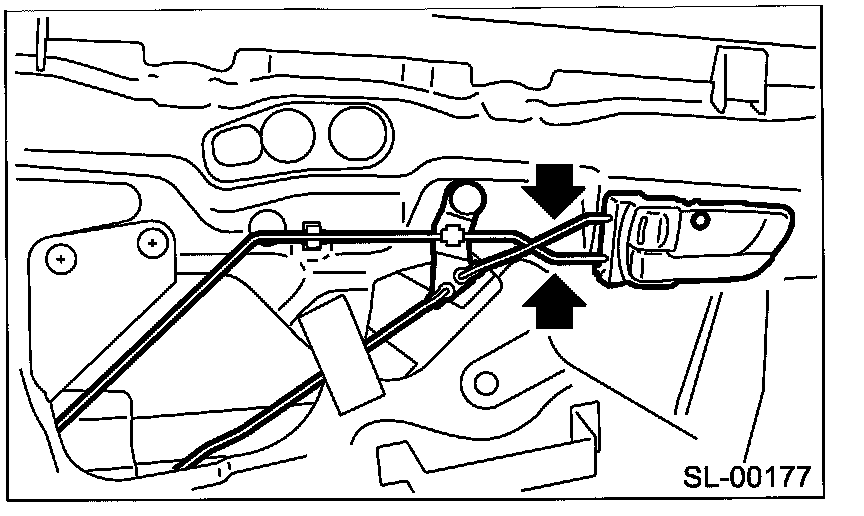

Remove a screw and two rod joints.
Remove the front inner remote.







Installation
Install in the reverse order of removal.

NOTE: Make sure the inner remote works properly after installation.
