Rear Quarter Upper and Lower Trim

Inner Trim:

REMOVAL

Remove the rear seat.
Remove the side sill rear cover.

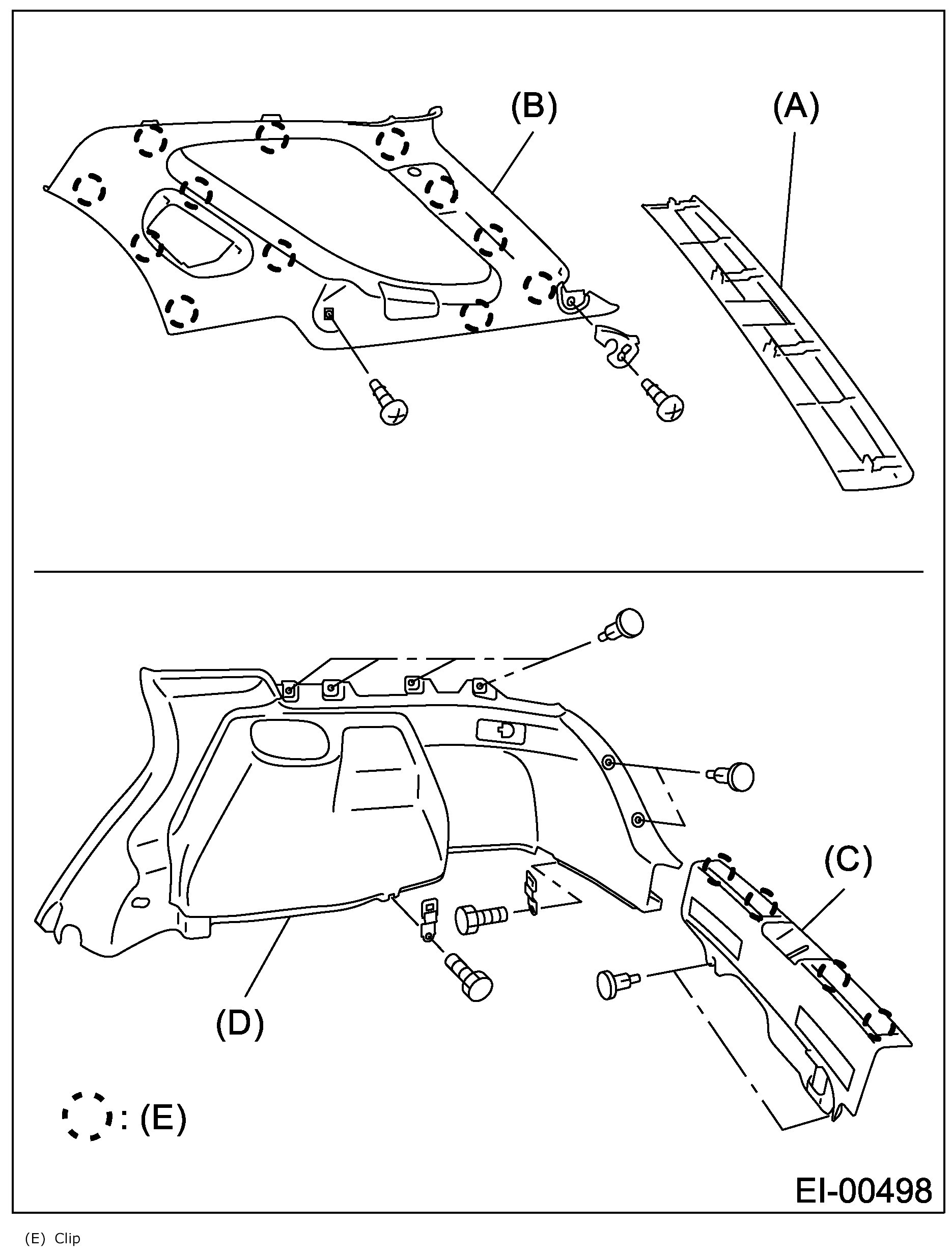

Remove the rear rail trim (A).
Loosen the screws and clips to remove the rear quarter upper trim (B).
Remove the rear skirt trim (C).
Loosen the bolts and clips to remove the rear quarter lower trim (D).







INSTALLATION

Install in the reverse order of removal.

IMPORTANT: Be sure to securely hook the pawls of inner trim panel to body flange.

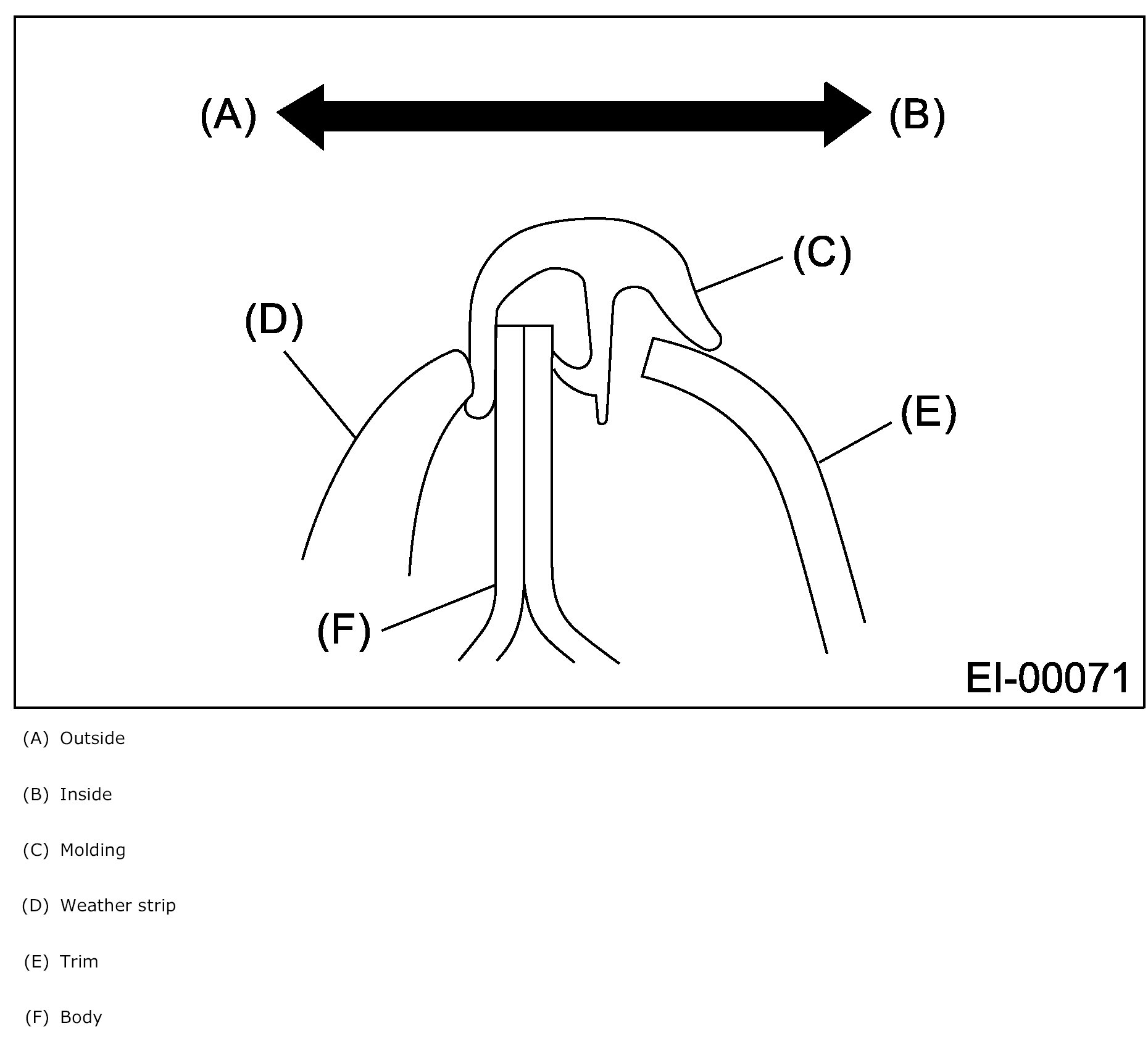

NOTE: When installing the rear quarter upper trim, be sure to set the rear molding as shown in the figure.
