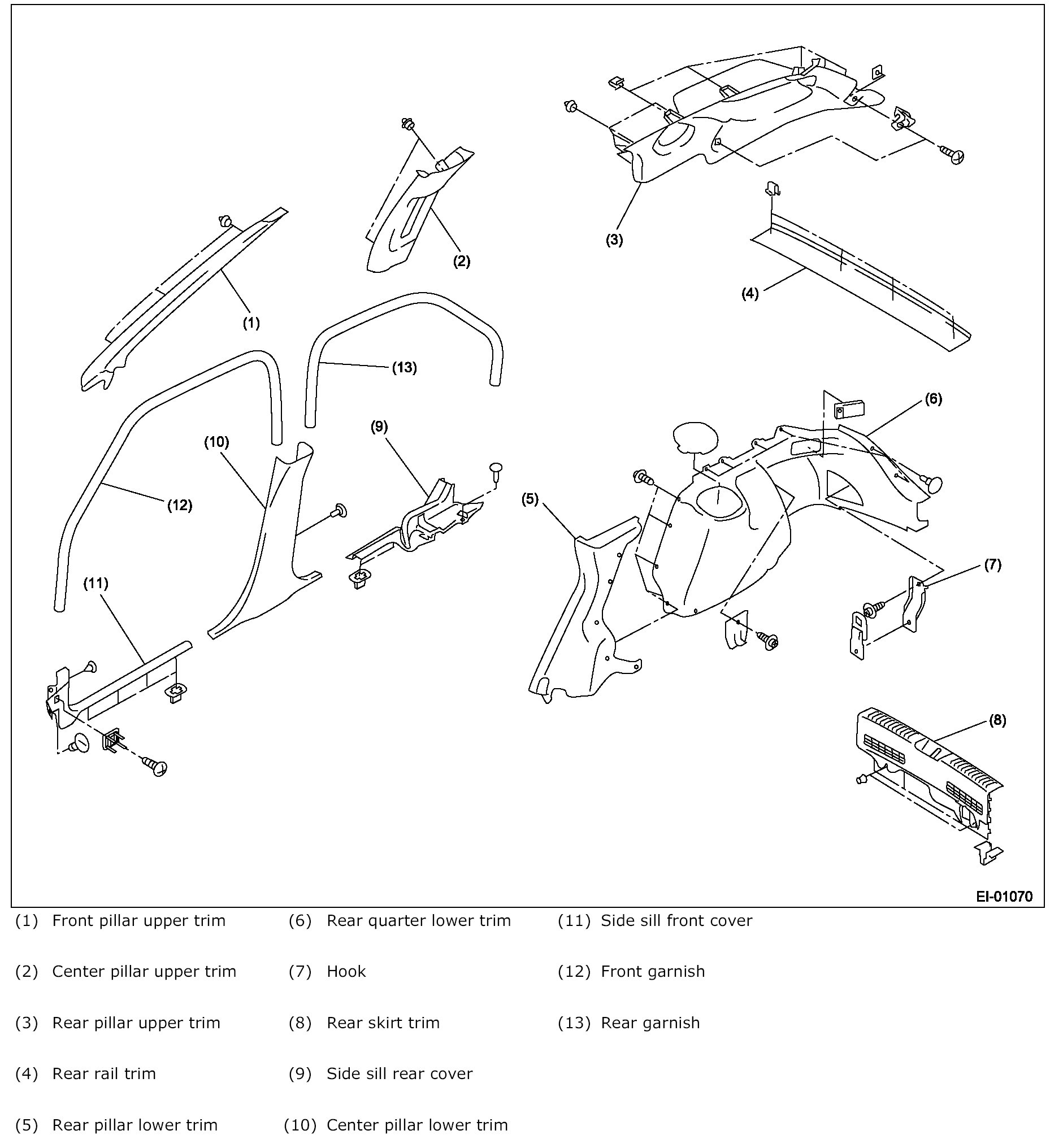

Center and Front Upper Pillar Trim

Inner Trim:

REMOVAL

Remove the lower inner trim.

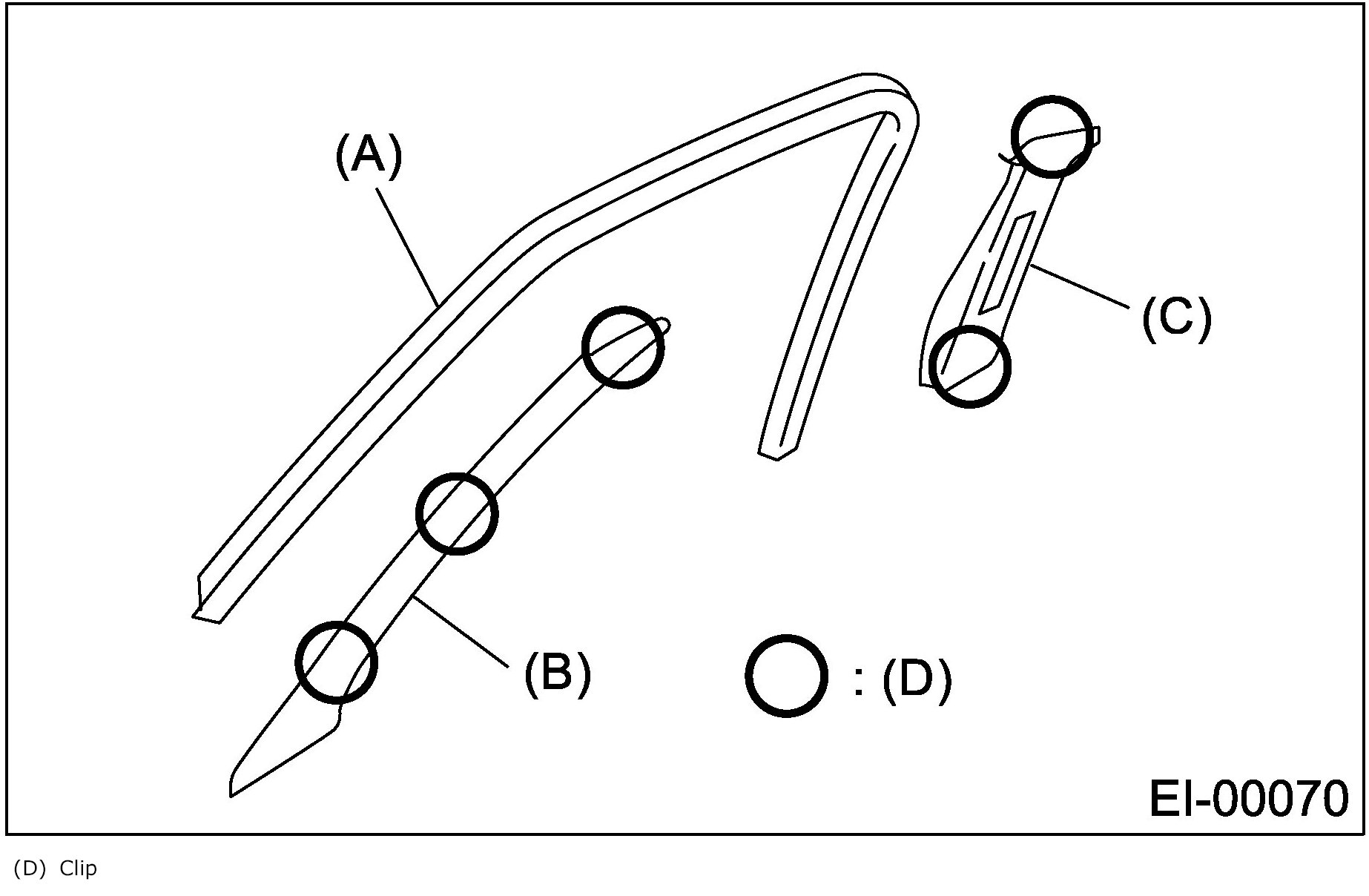

Remove the front molding (A).
Remove the front pillar upper trim (B).
Detach the front seat belt shoulder anchor, and then remove the center pillar upper trim (C).







INSTALLATION

Install in the reverse order of removal.

IMPORTANT: Be sure to securely hook the pawls of inner trim panel to body flange.

NOTE: When installing the center pillar upper trim and front pillar upper trim, be sure to set the front molding as shown in the figure.
