Dashboard / Instrument Panel: Service and Repair

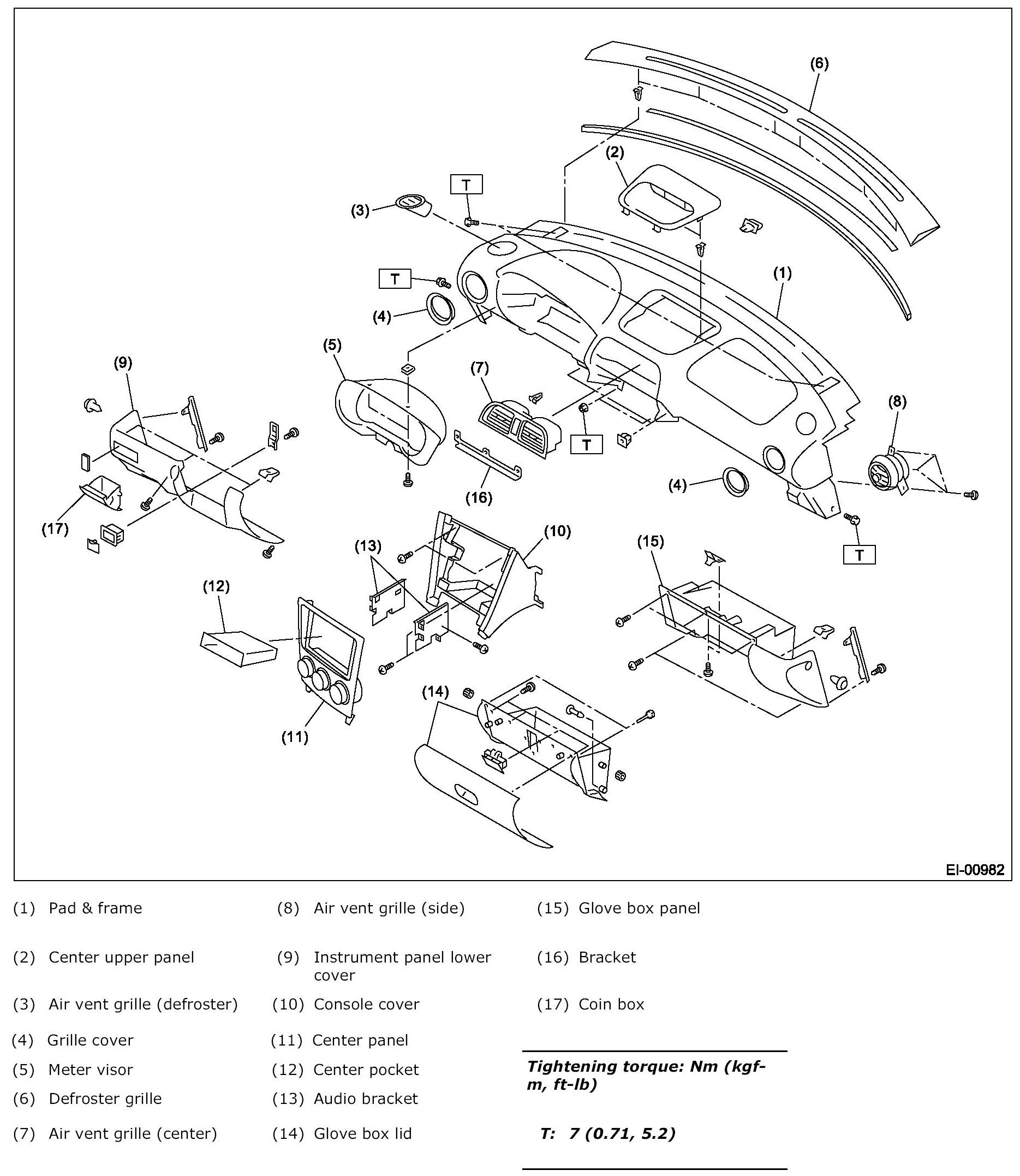

Instrument Panel:

REMOVAL

IMPORTANT:
- Airbag system connectors are colored yellow. Do not use electrical equipment on these circuits.
- Be careful not to damage the airbag system harness when servicing the instrument panel.

Disconnect the ground cable from battery.
Loosen the screws, remove the clip (A), disconnect the connectors, and then remove the instrument panel lower cover.







Remove the console front panel and console cover.

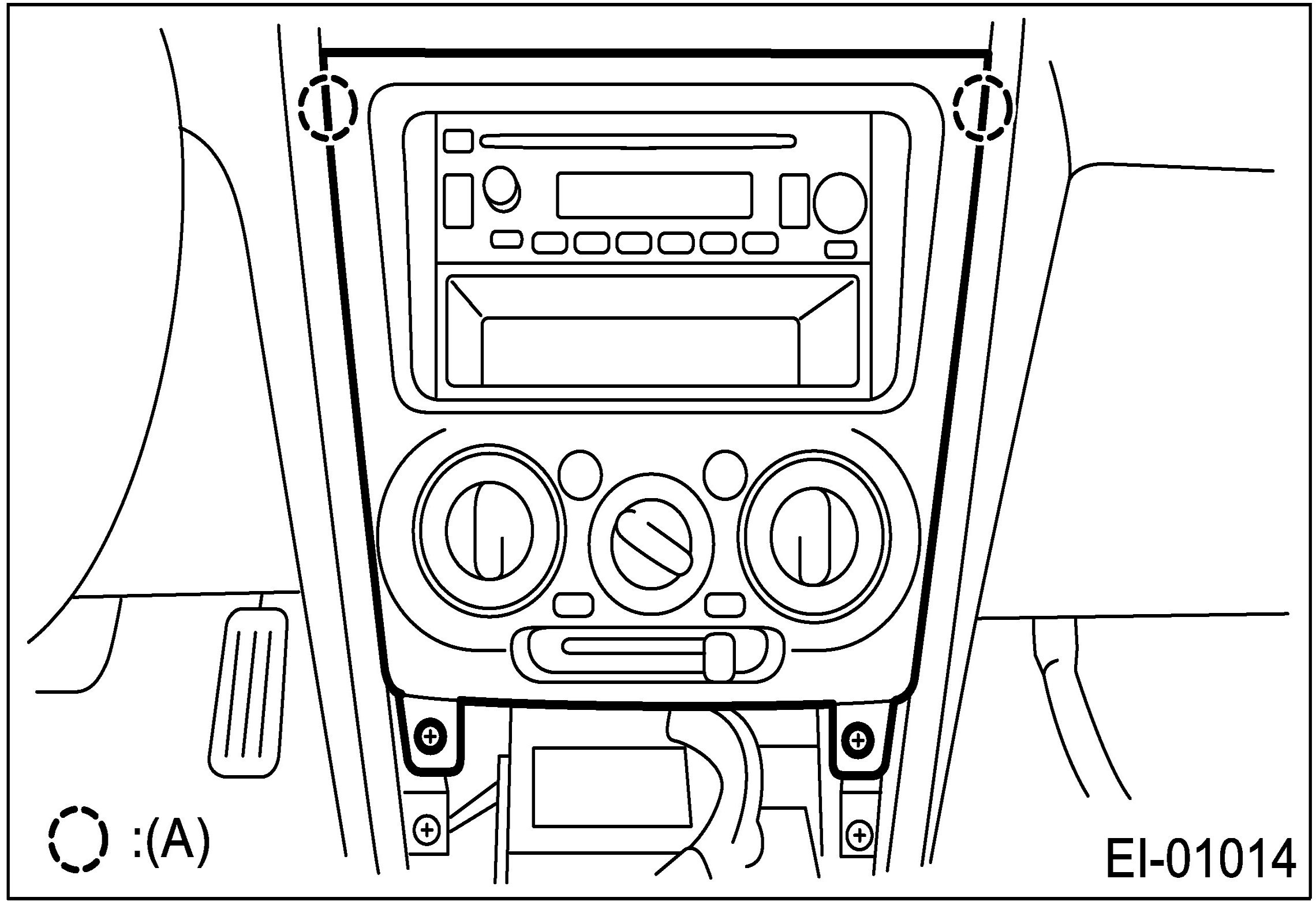

Remove the clip (A), and then remove the center console panel.







Remove the glove box.
Remove the passenger's airbag module.

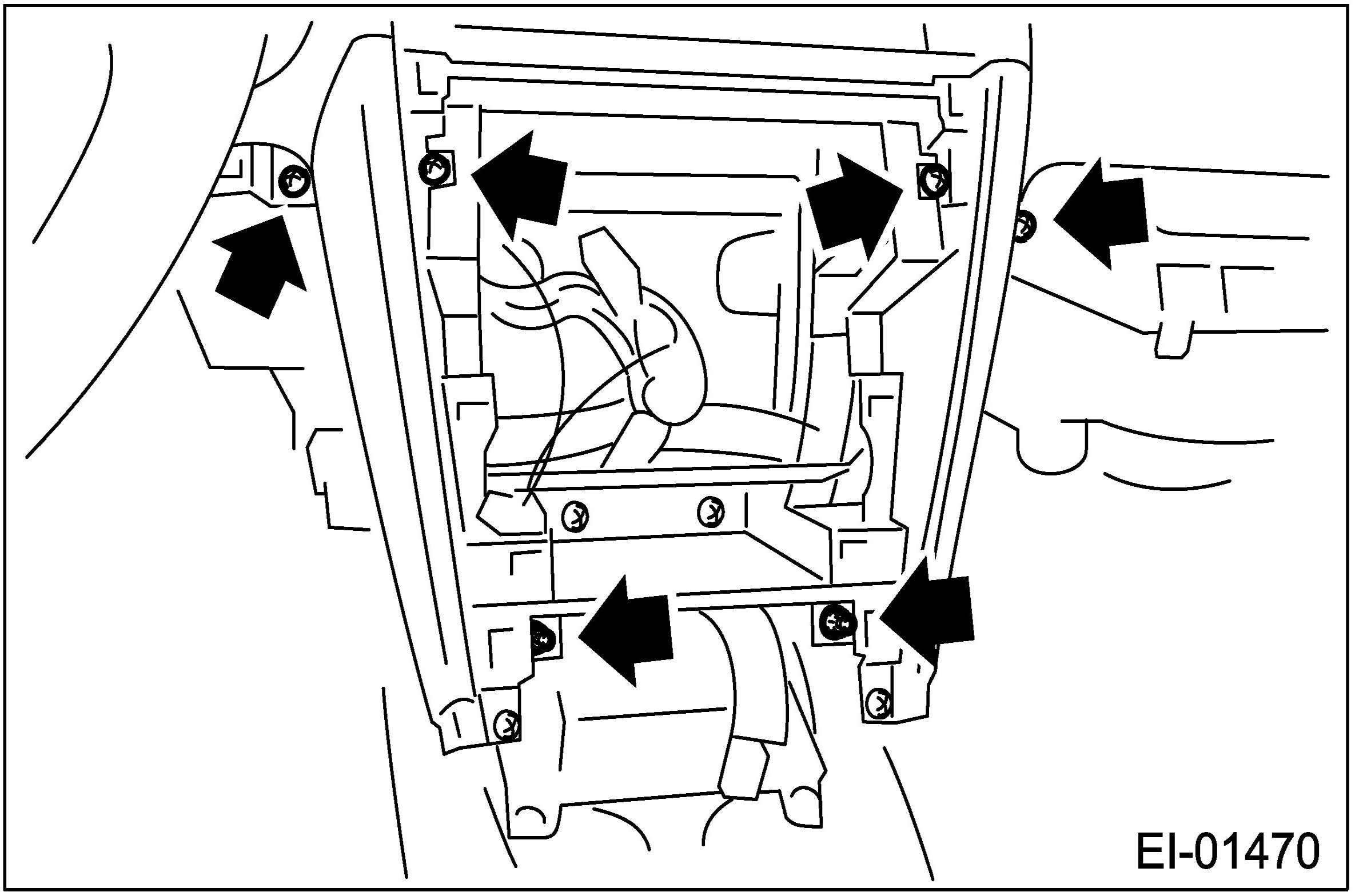

Loosen the four screws and two nuts, and then remove the lower console panel.

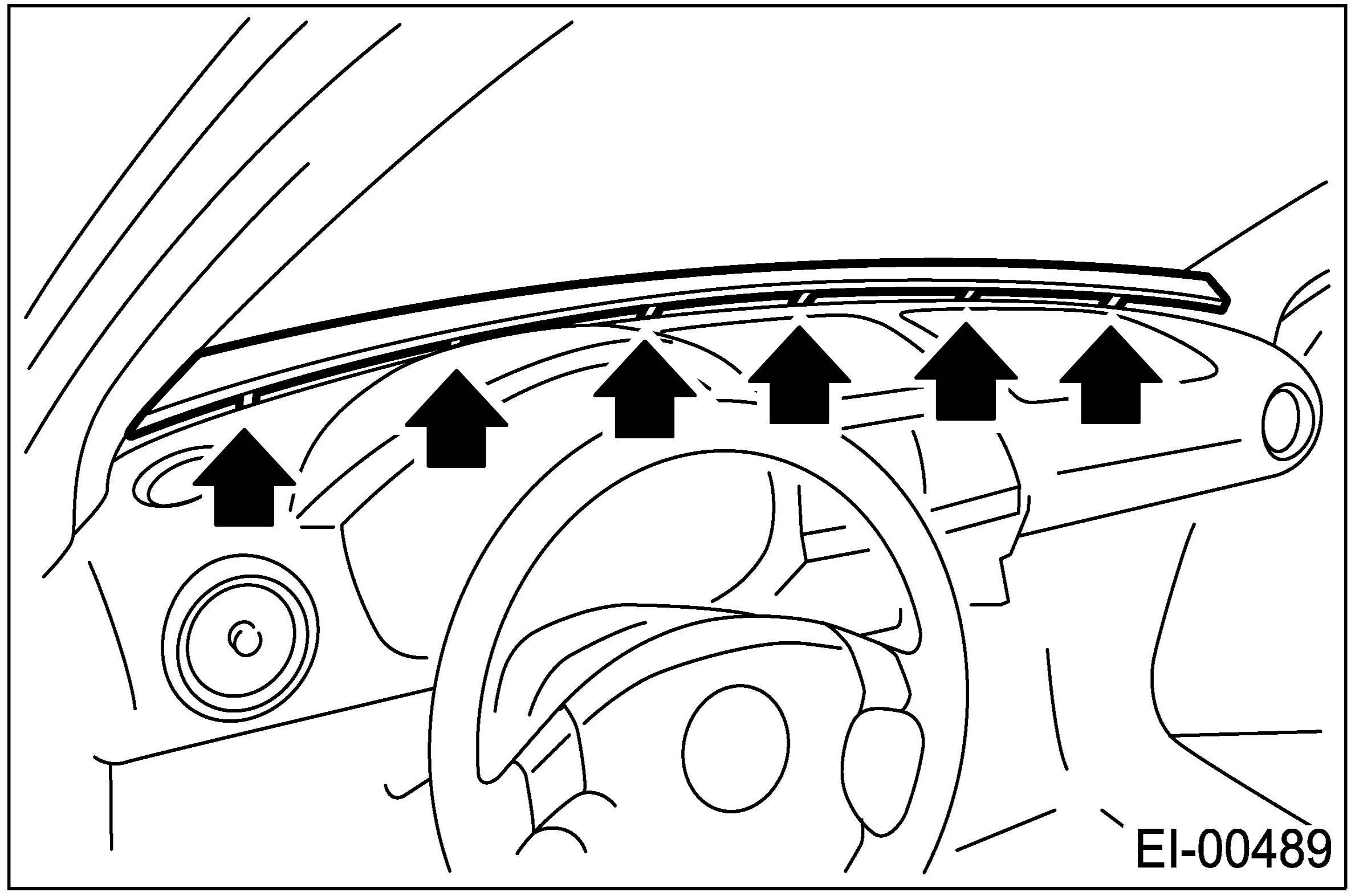

Remove the hook, and then remove the defroster panel.







Remove the front pillar upper trim.

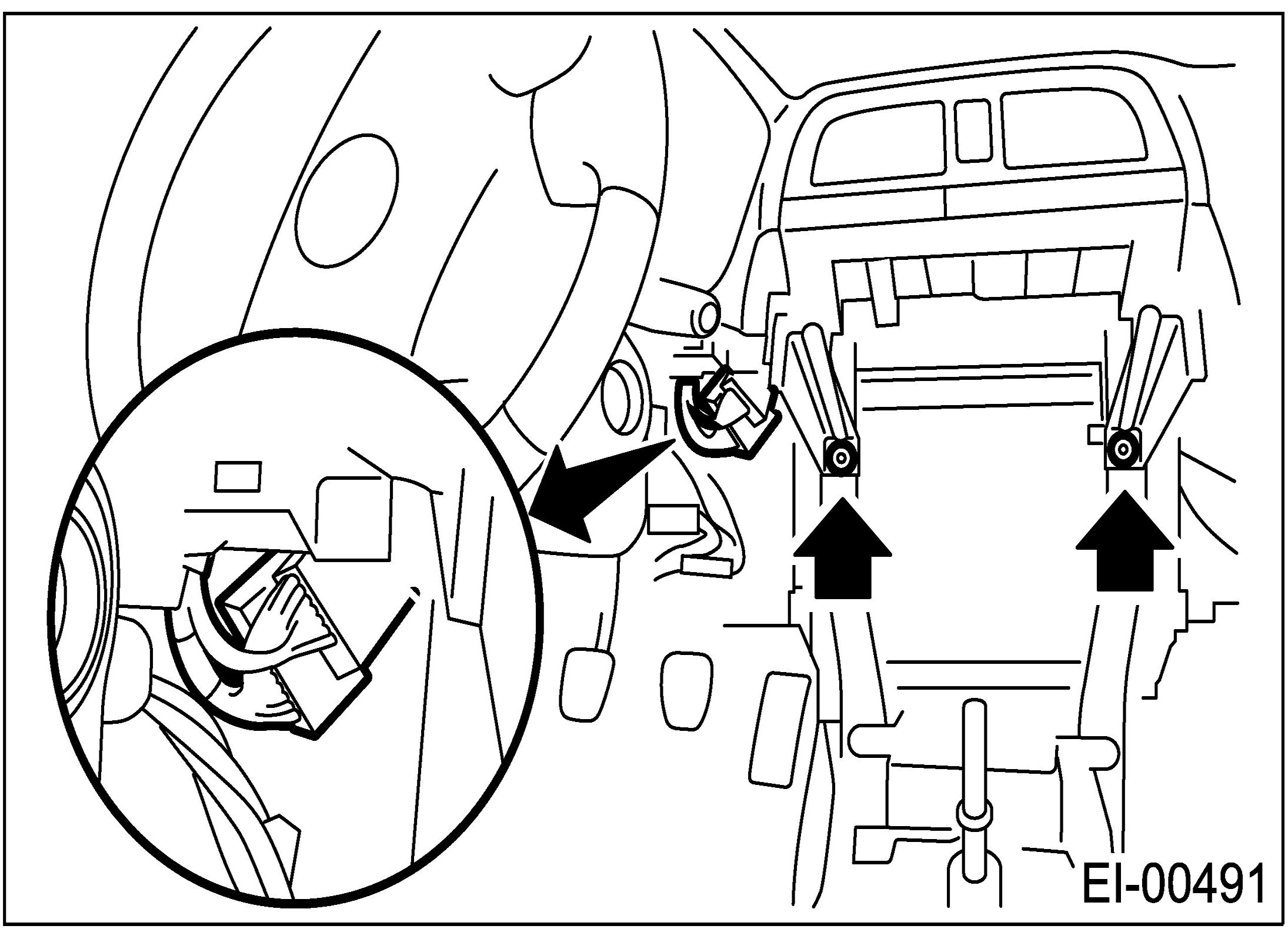

Disconnect the two connectors, and then loosen the nuts.

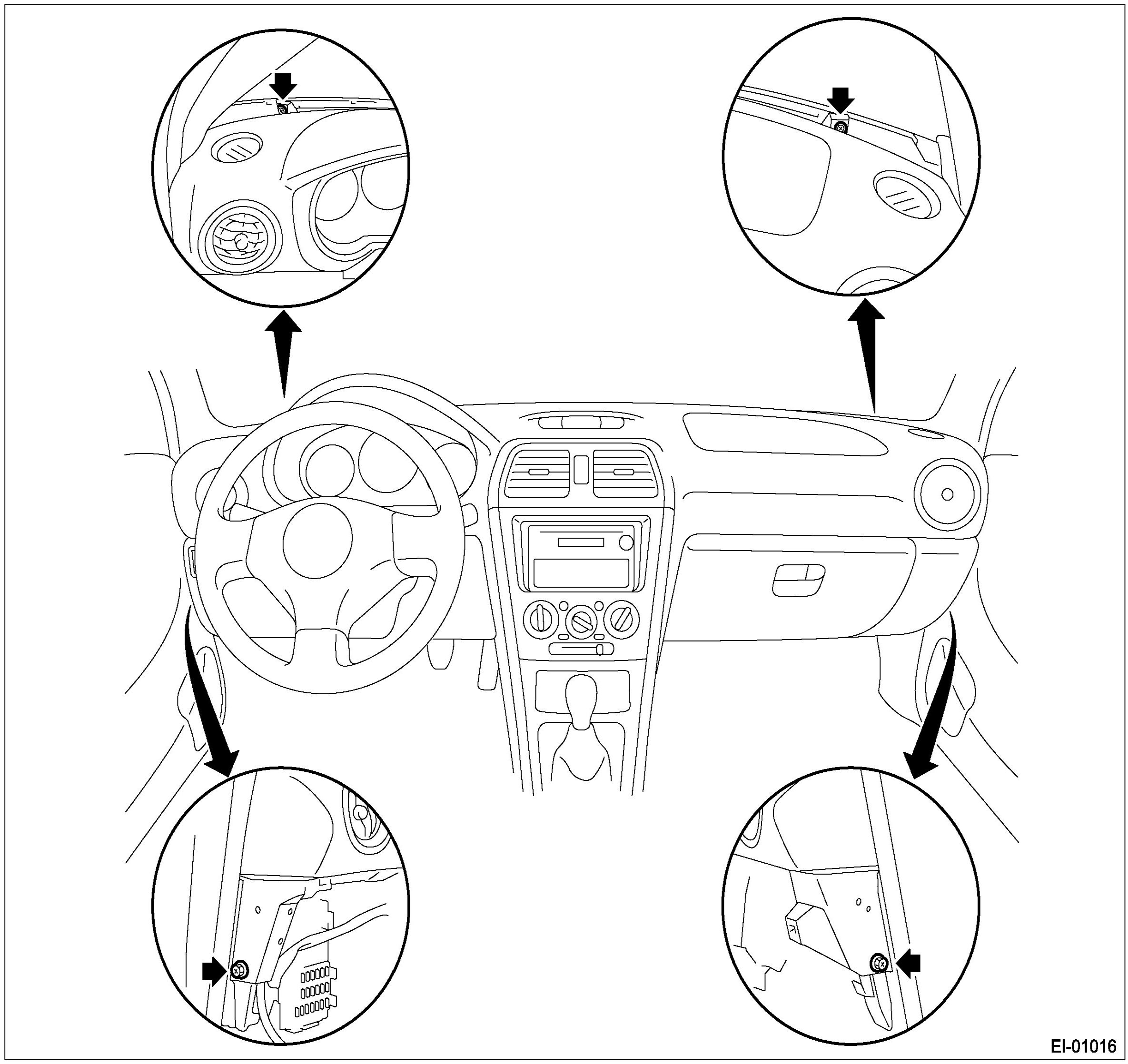

Remove the instrument panel installation bolts.







Check that all the harness is disconnected, and then remove the instrument panel from vehicle.

NOTE:
- Put alignment marks as necessary, in order to facilitate the reassembly.

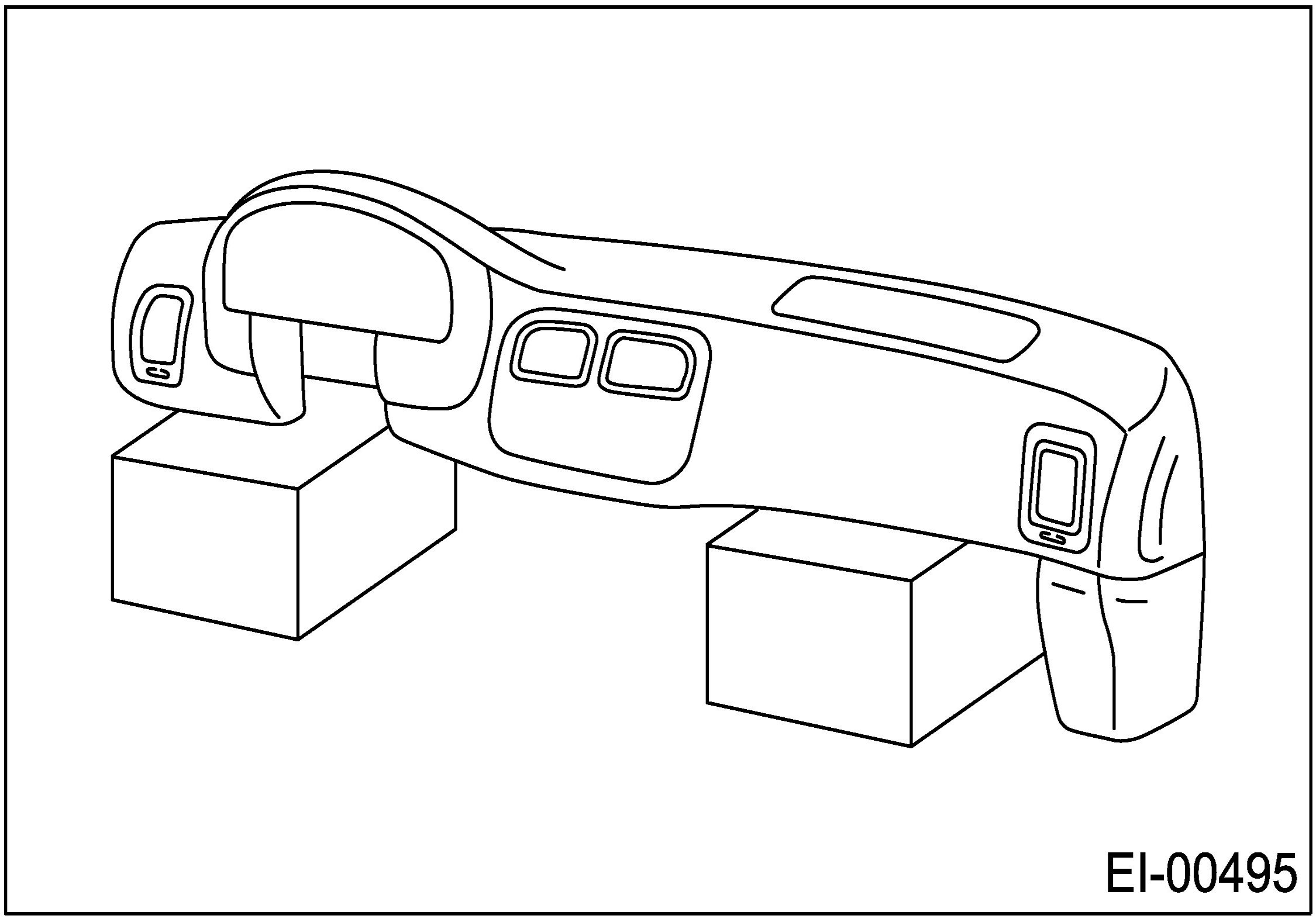

- When storing the removed instrument panel, place it standing up on the floor.







INSTALLATION

IMPORTANT:
- Be careful not to snag the harness.
- Carry out installation checking that the harness is connected correctly.
- When setting the instrument panel into vehicle, do not damage trim panels.

Install in the reverse order of removal.

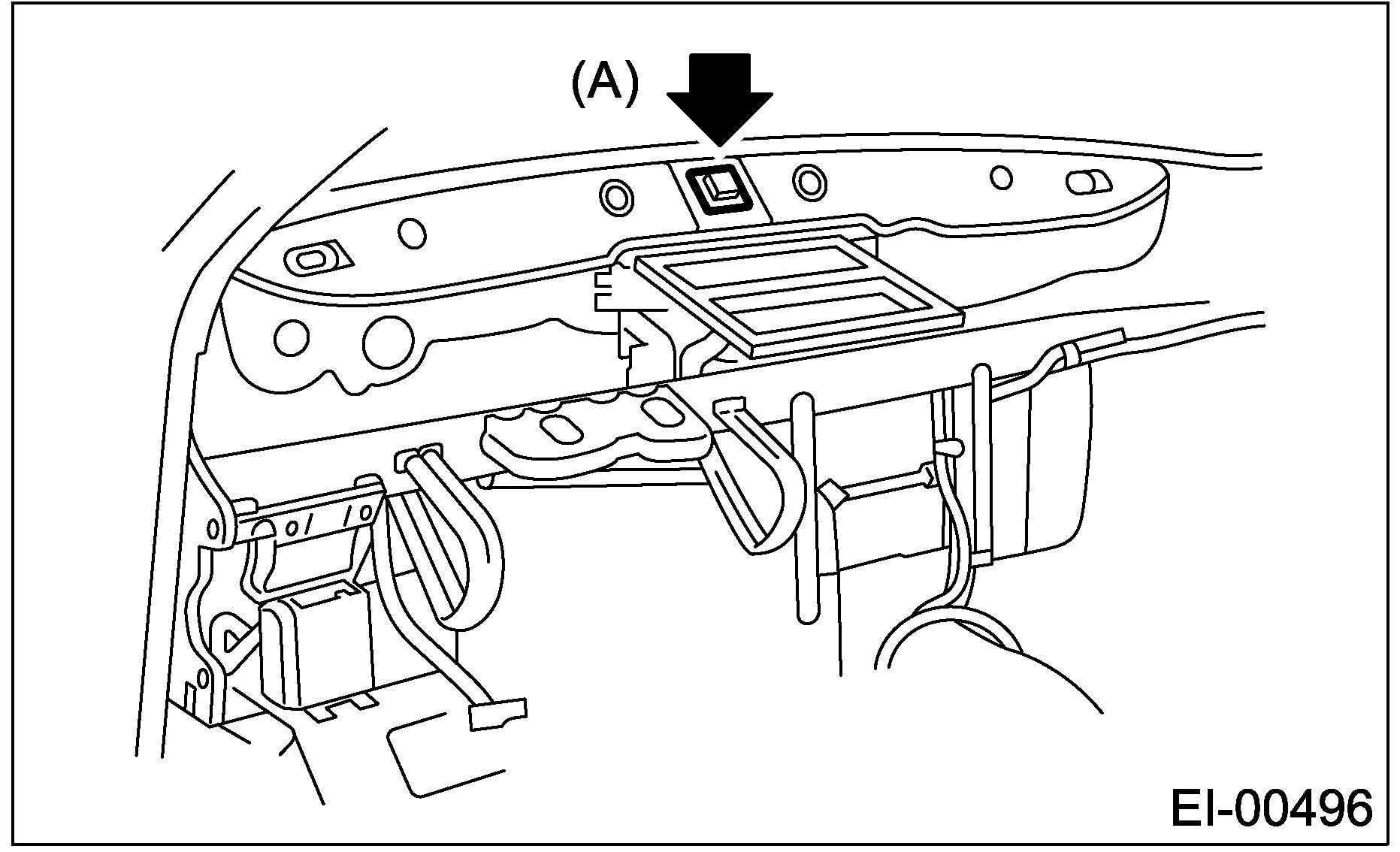

NOTE: When installing the instrument panel into position, push the hook into grommet (A) on the body panel. After tightening the bolts, recheck the installation.
