Cowl Moulding / Trim: Service and Repair

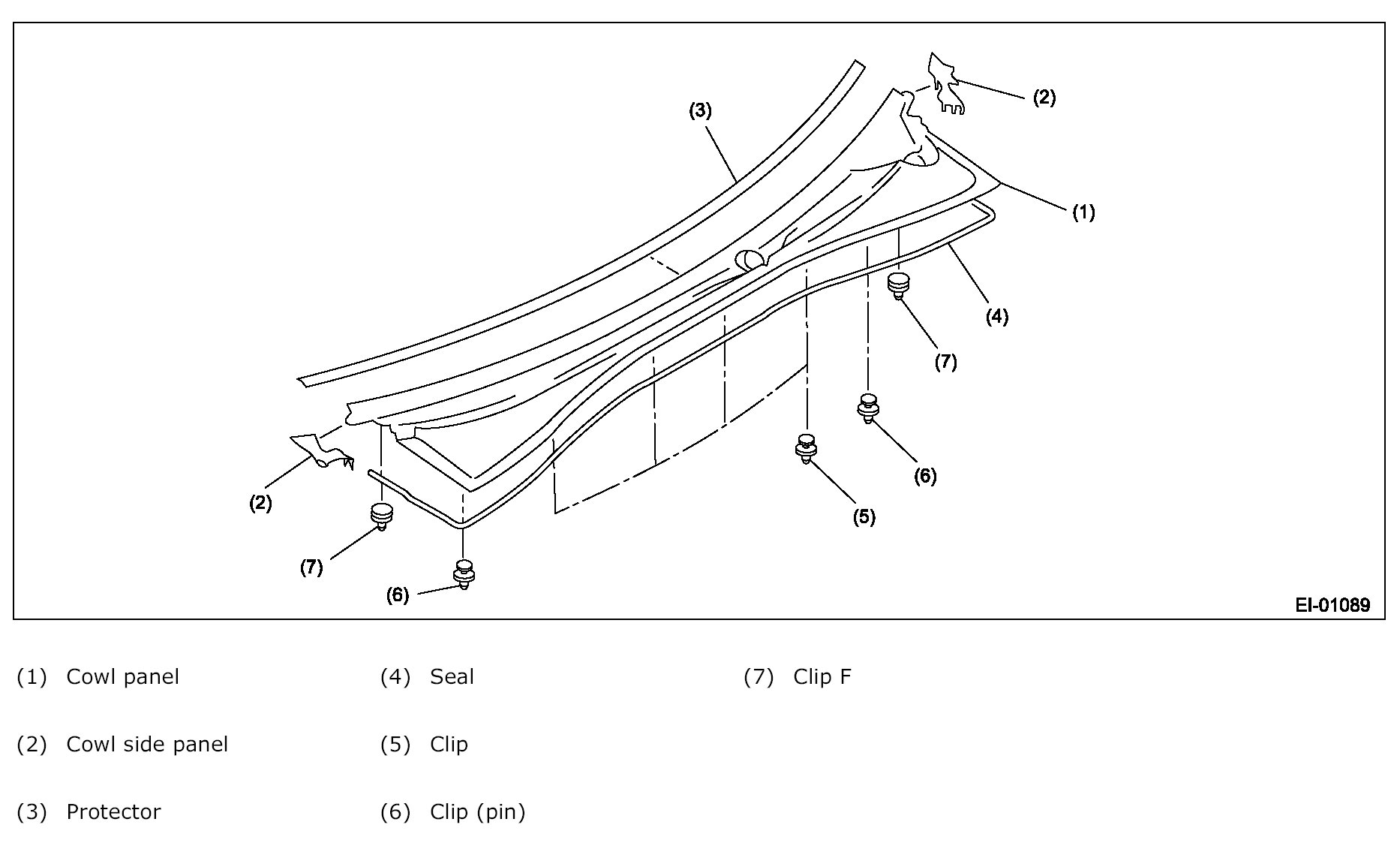

Cowl Panel:

REMOVAL

Open the front hood.
Remove the wiper arm.

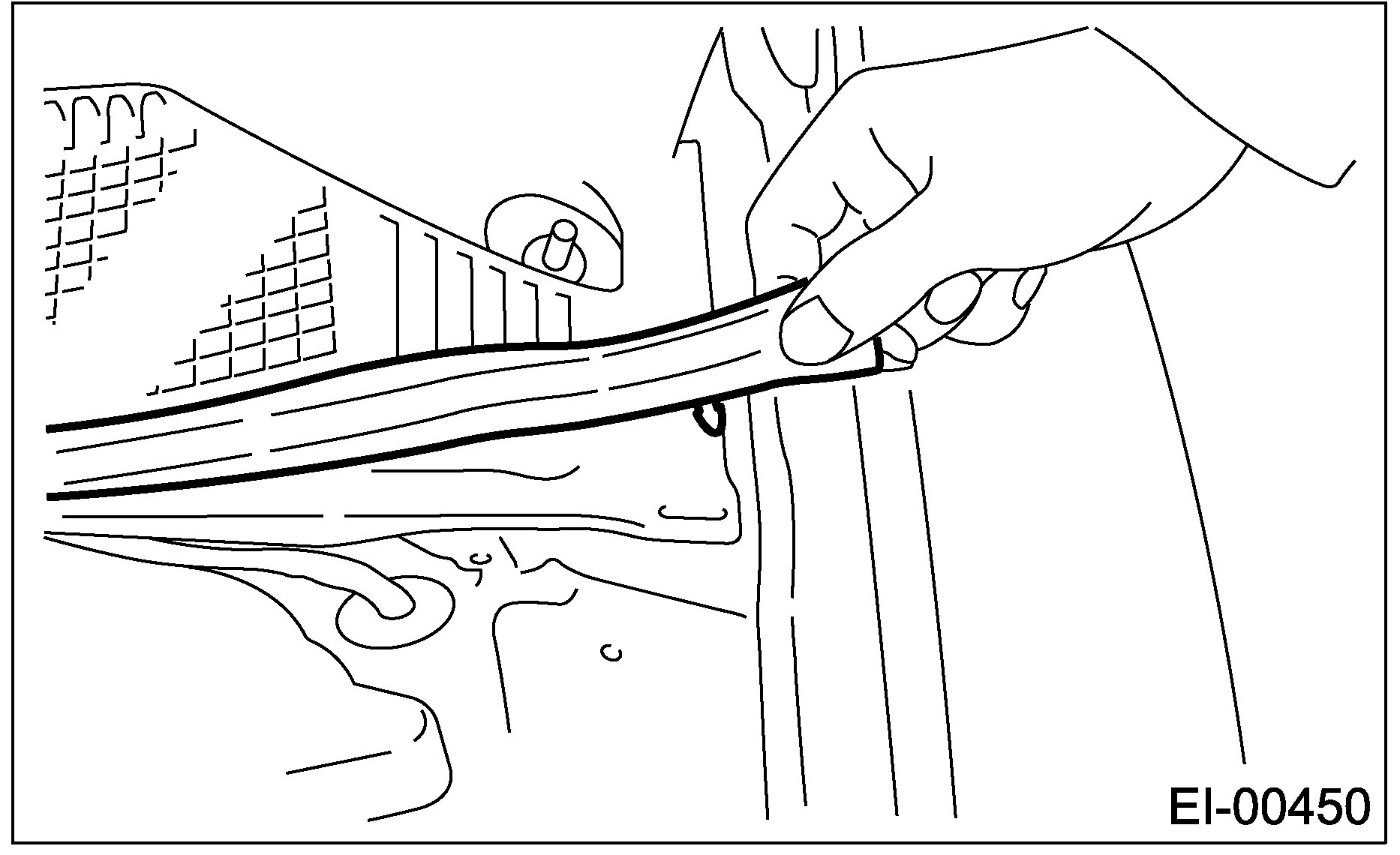

Remove the cowl panel seal.

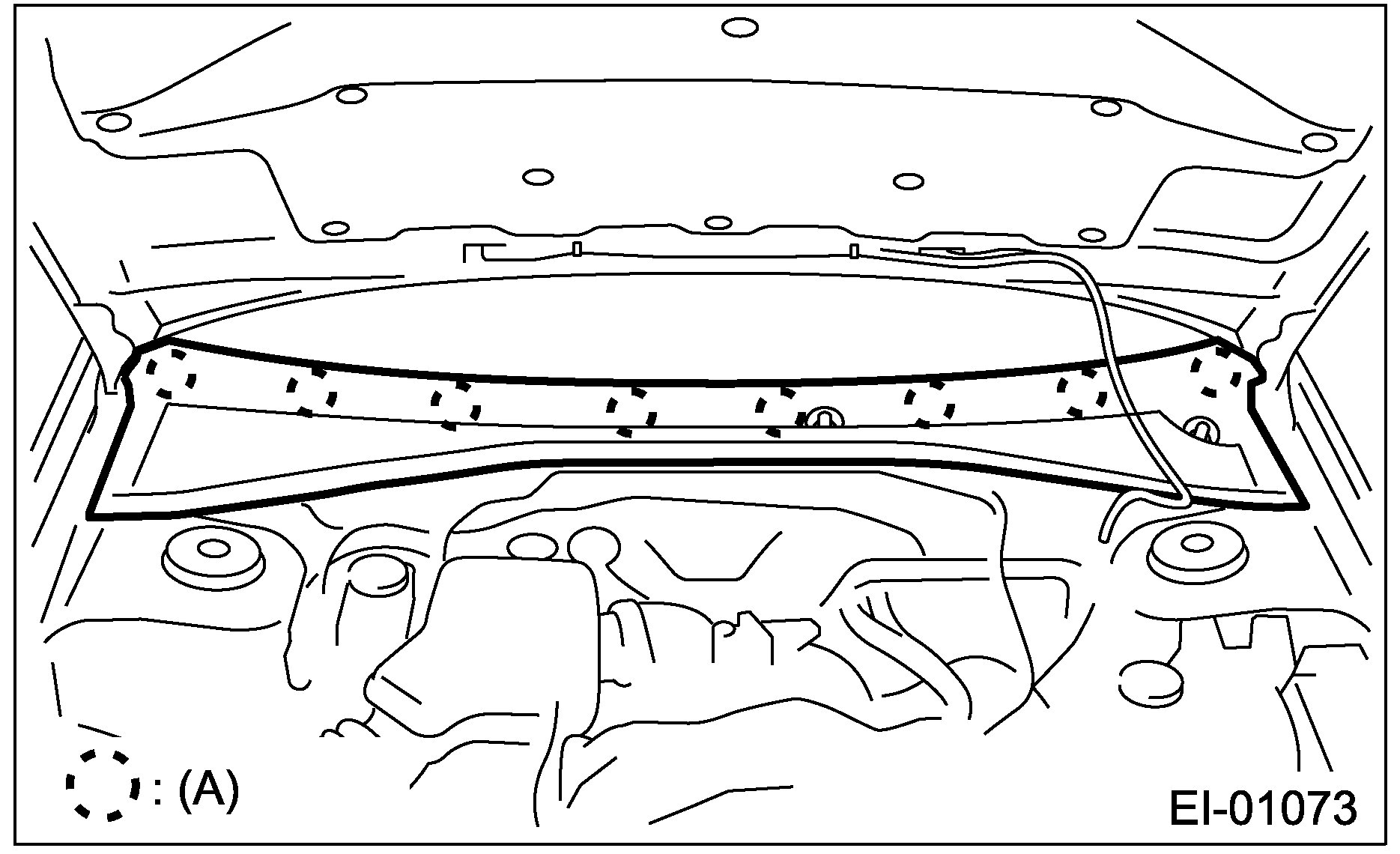

Disengage the clips (A) to remove the cowl panel.







INSTALLATION

Install in the reverse order of removal.
