Trunk / Liftgate Handle: Service and Repair

Rear Gate Lock:

REMOVAL

Remove the rear gate garnish.
Remove the rear gate trim.

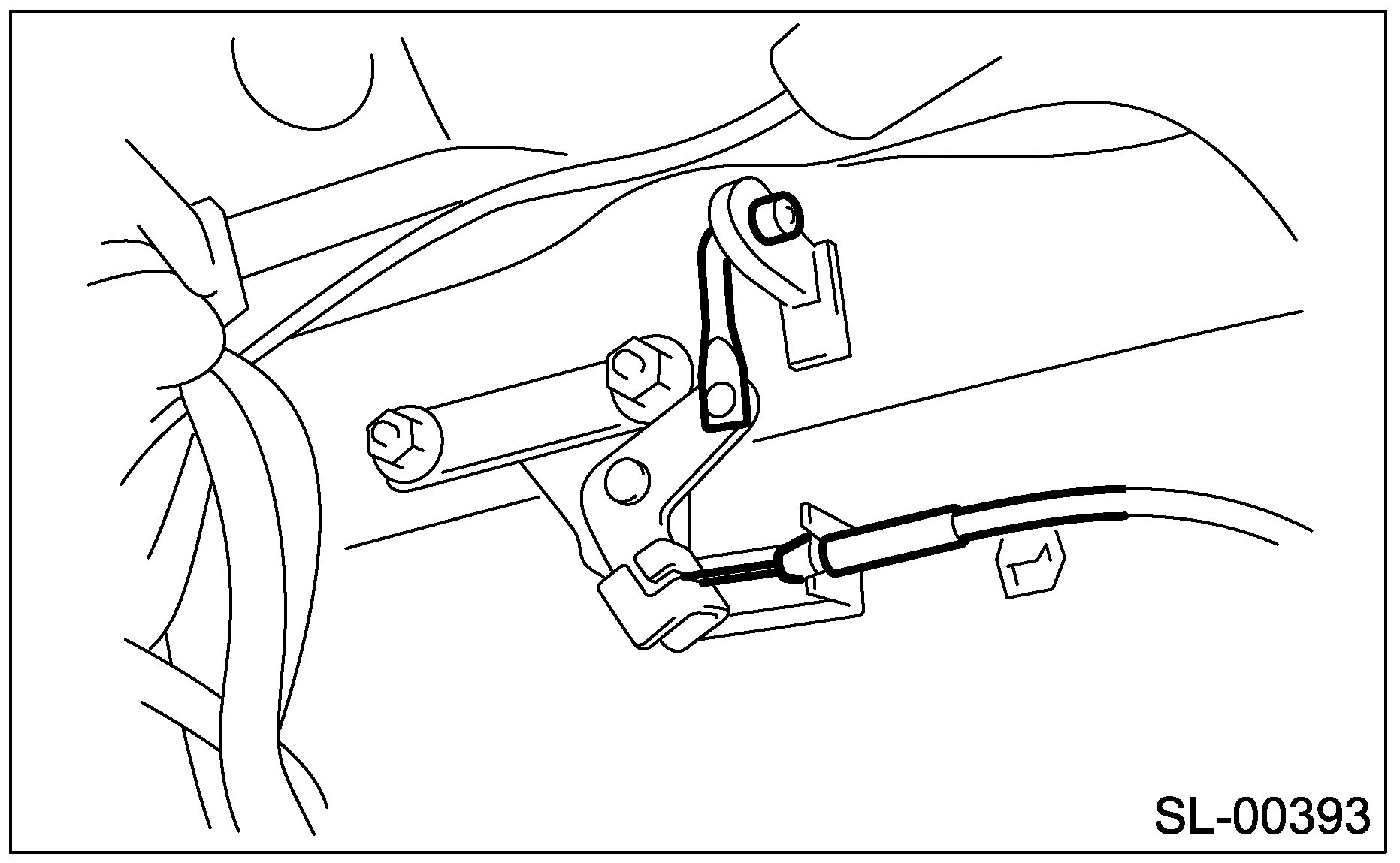

Remove the link and cable, and then loosen two nuts to remove the rear gate outer handle.







INSTALLATION

Install in the reverse order of removal.

NOTE: Make sure the rear gate outer handle works properly after installation.

INSPECTION

Inspect the outer handle and link for deformation.
Make sure the outer handle and cable move smoothly.
