Initial Inspection and Diagnostic Overview



Rear Gate Latch Lock Actuator

Inspection
Disconnect the door lock actuator harness connector.

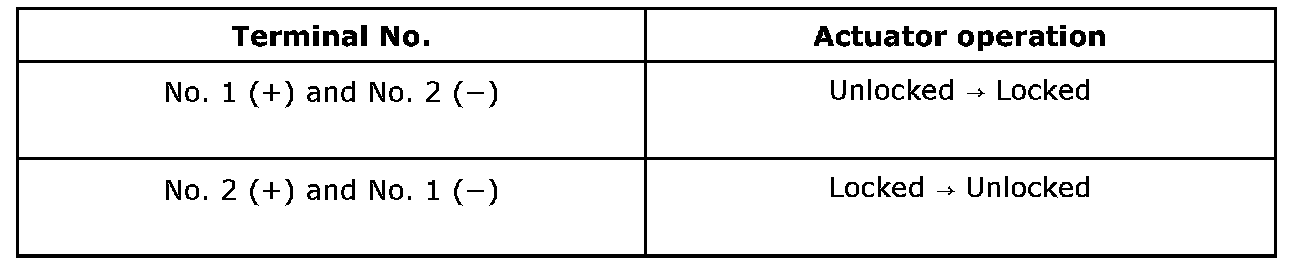

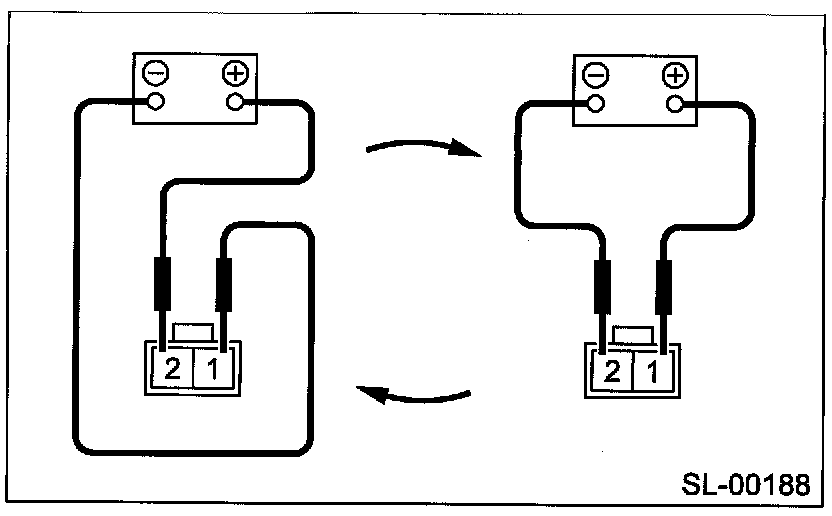

Connect the battery to door lock actuator terminals.












If NG, replace the rear gate latch lock actuator.
