Component Tests and General Diagnostics

INSPECTION

Disconnect the rear gate latch lock actuator harness connector.

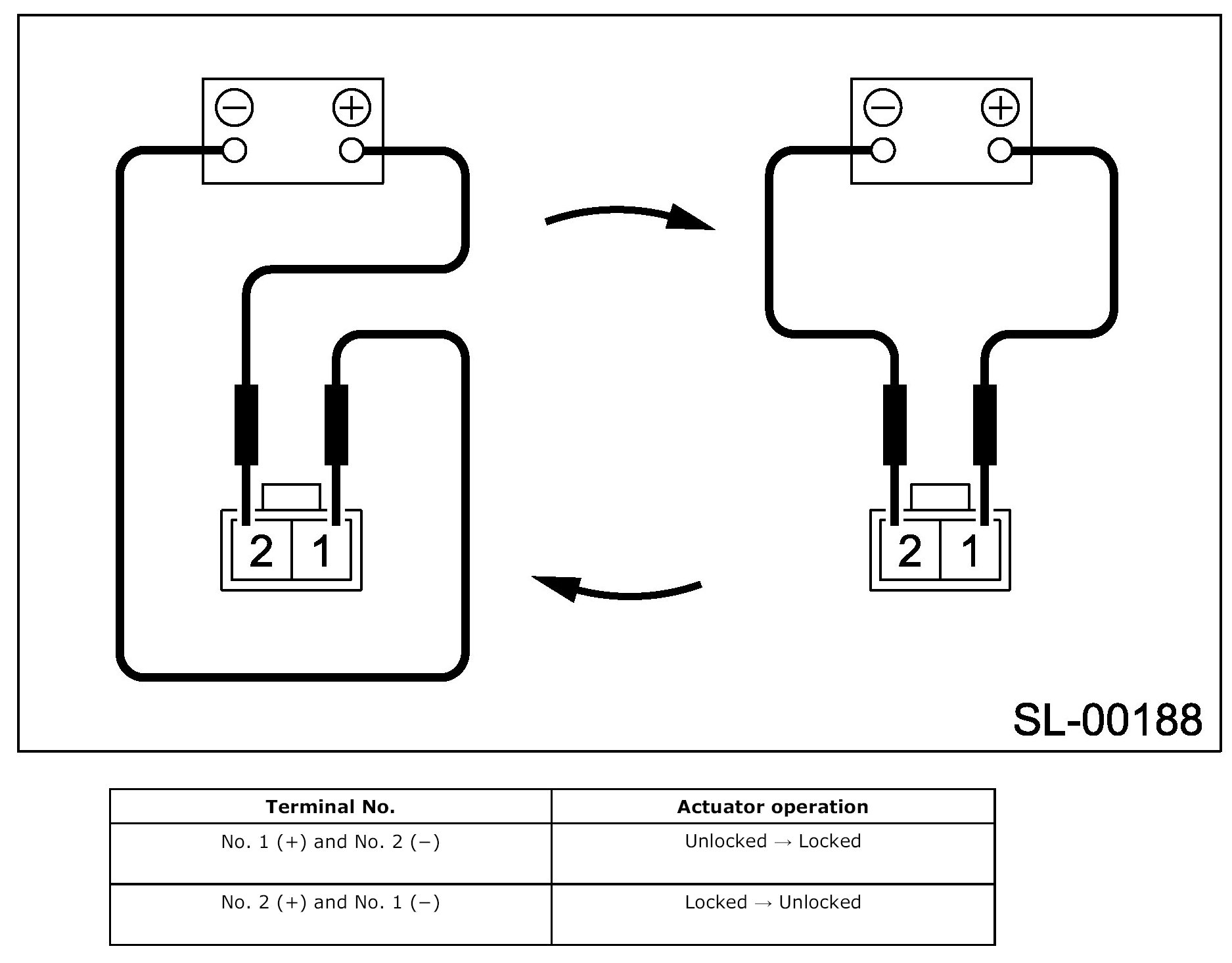

Connect the battery to rear gate latch lock actuator terminals.







If NG, replace the rear gate latch lock actuator.
