Hood: Service and Repair

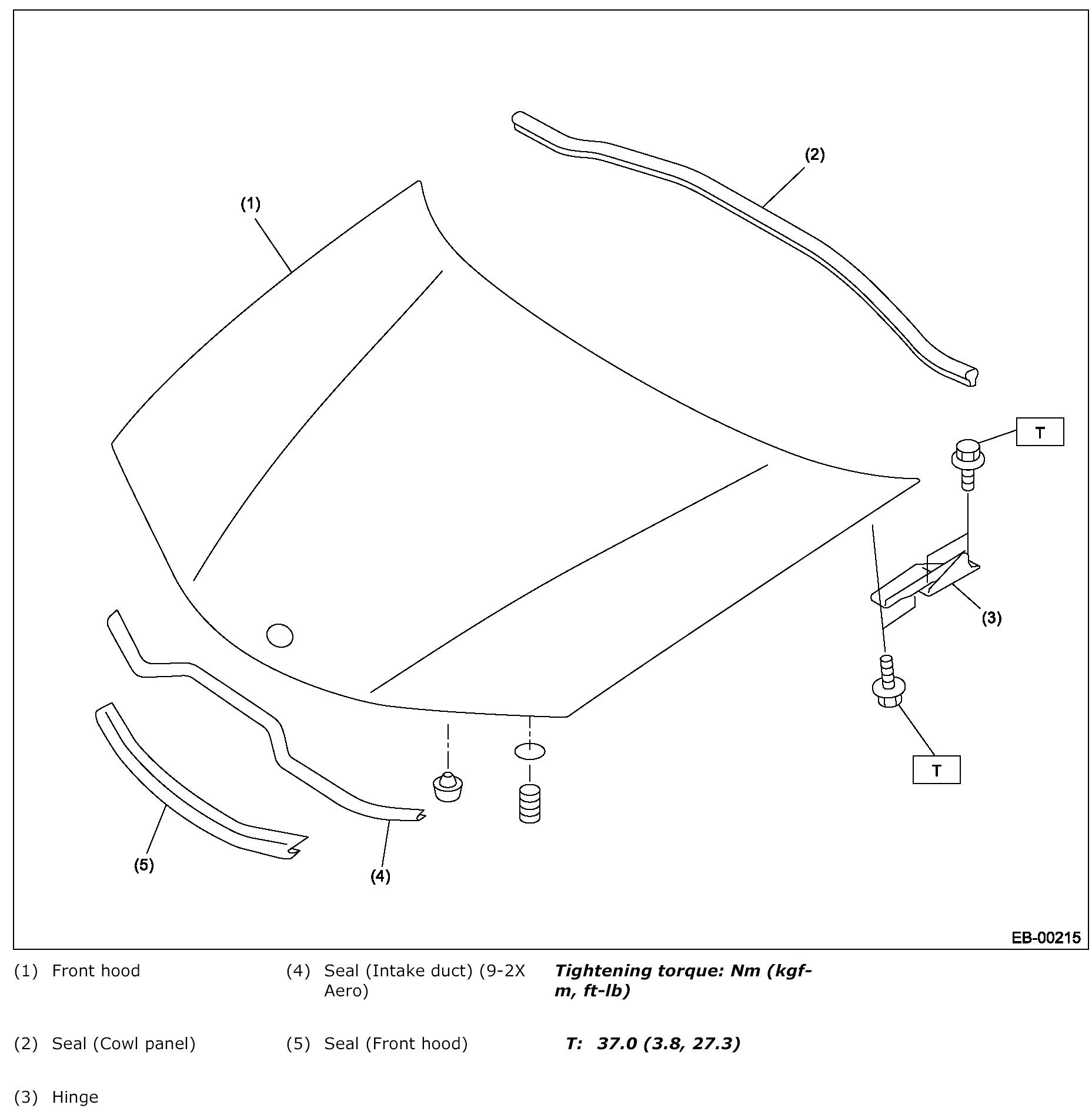

Front Hood:

REMOVAL

Open the front hood to remove washer nozzles.

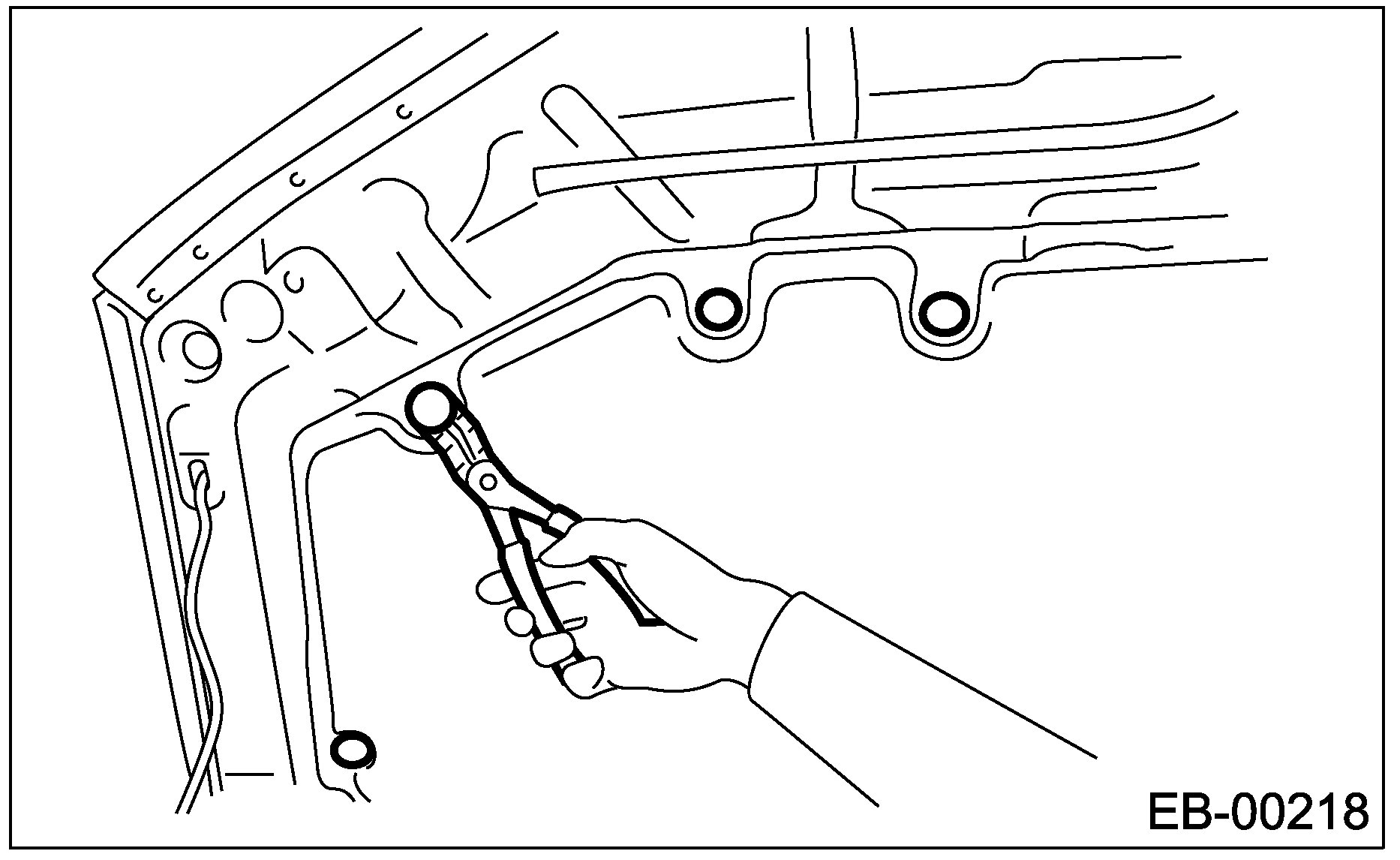

Release the clips to remove hood insulator.

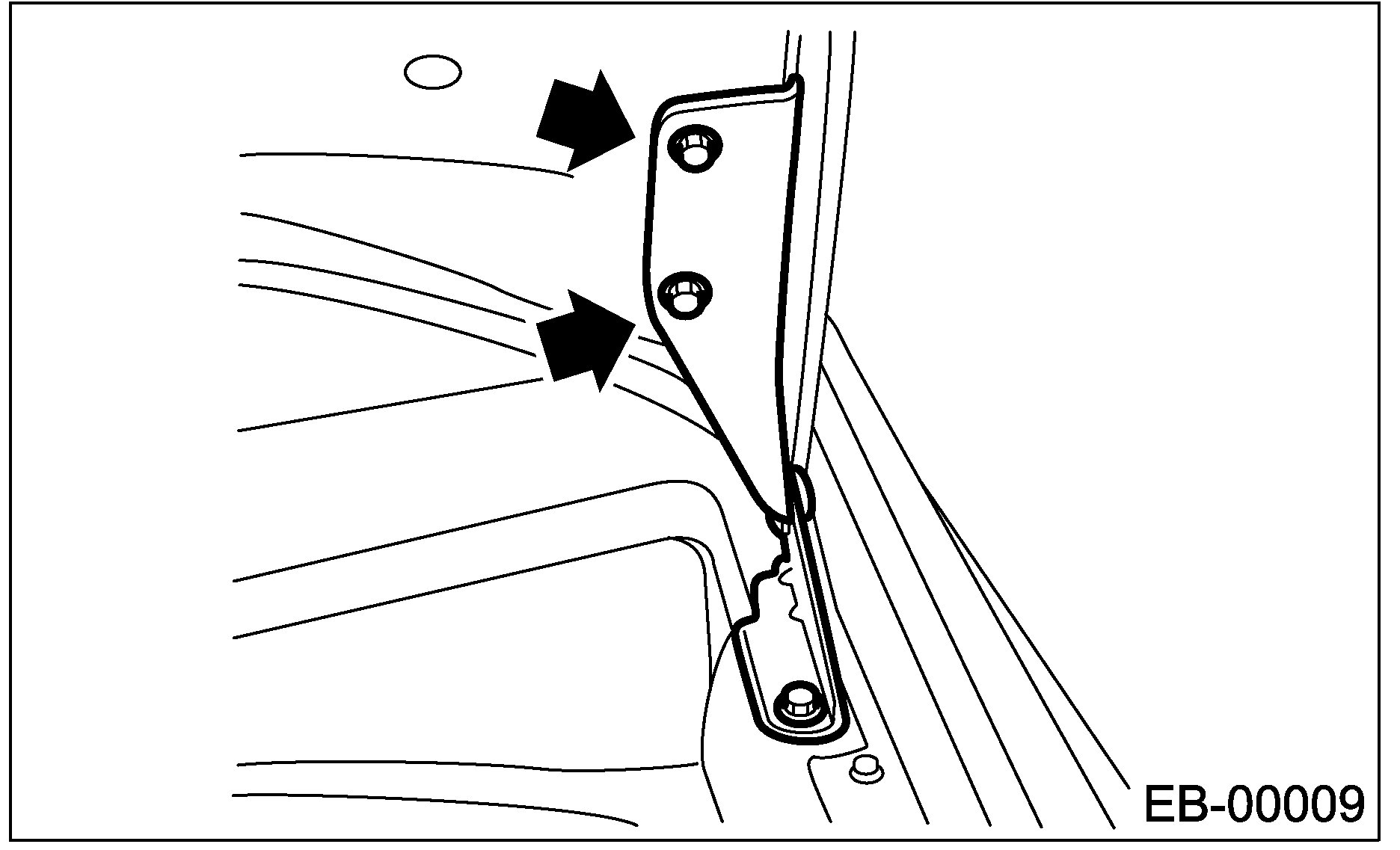

Remove the bolts to remove the front hood from hinges.







INSTALLATION

Install in the reverse order of removal.
Adjust the clearance between front hood panel and front fender panel. Clearance must be equal at both sides.

Tightening torque: 37.0 Nm (3.8 kgf-m, 27.3 ft-lb)
