Rear Door: Service and Repair

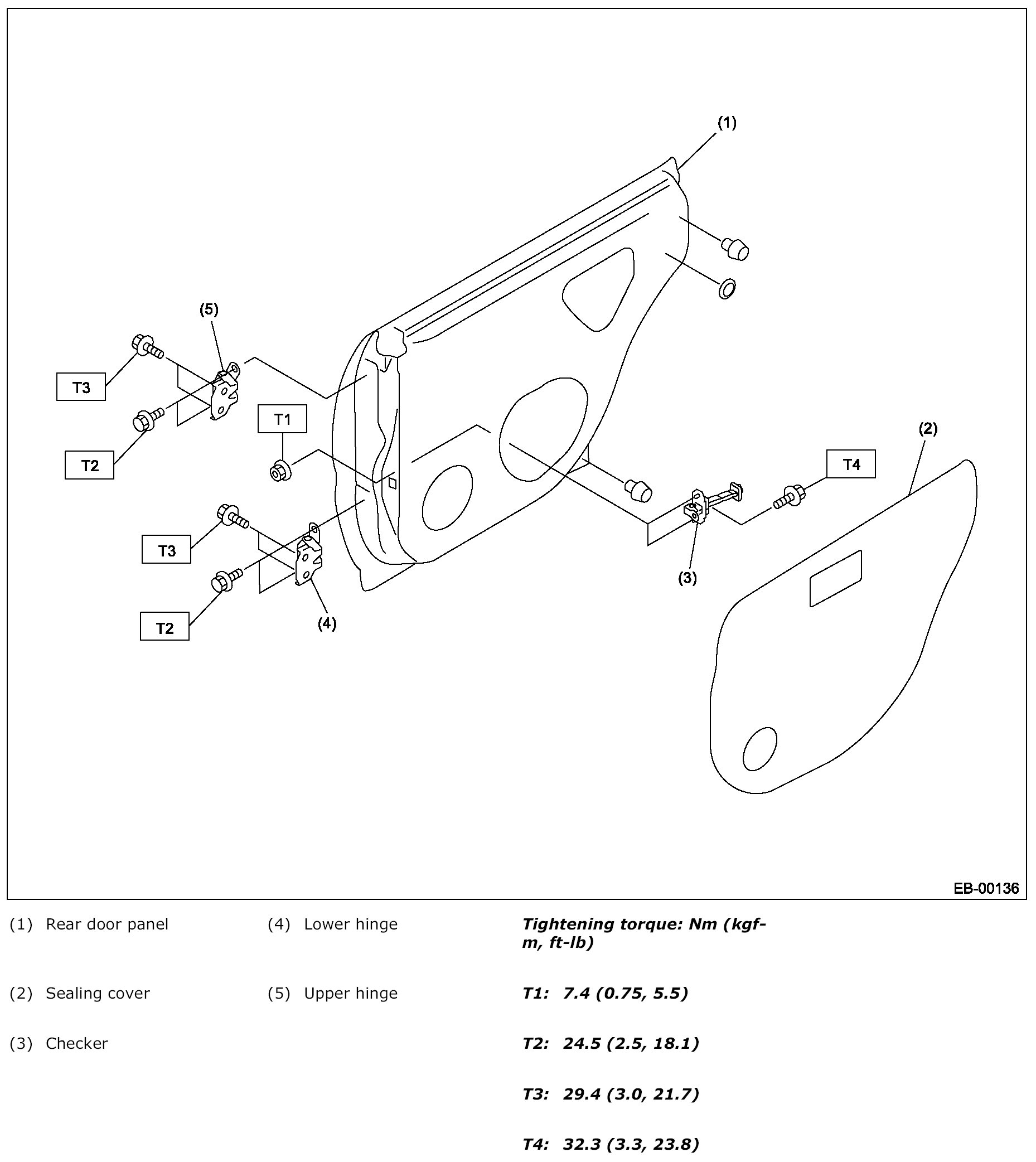

Rear Door Panel:

REMOVAL

Disconnect the ground cable from battery.
Remove the rear door trim.
Remove the rear door glass.
Remove the rear door regulator and motor assembly.
Remove the rear door latch.
Remove the rear outer handle.
Remove the center pillar lower trim.

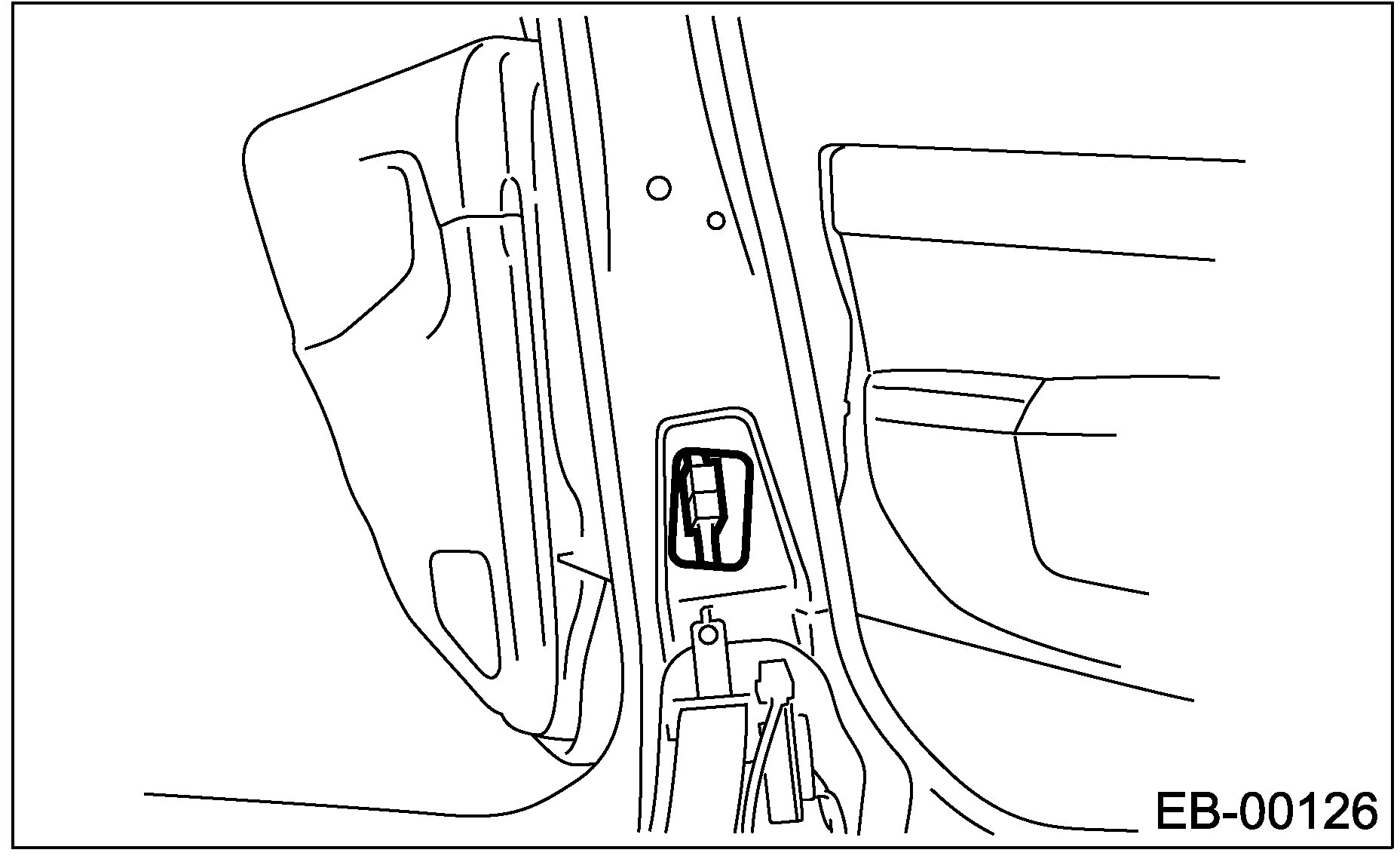

Disconnect the connector of door harness.

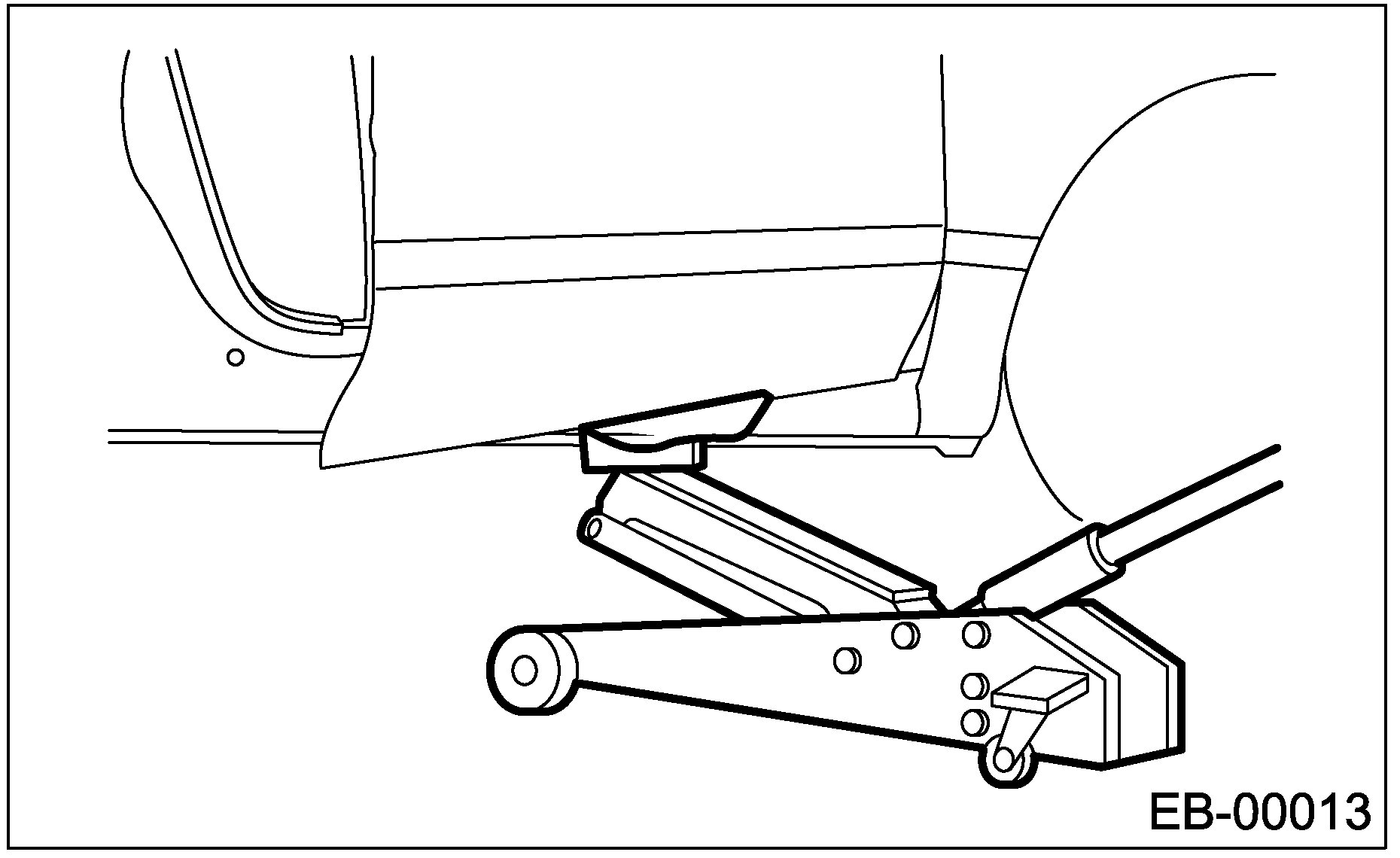

Put a wooden block on the jack and place the jack under the rear door. Support the rear door with jack to protect it.

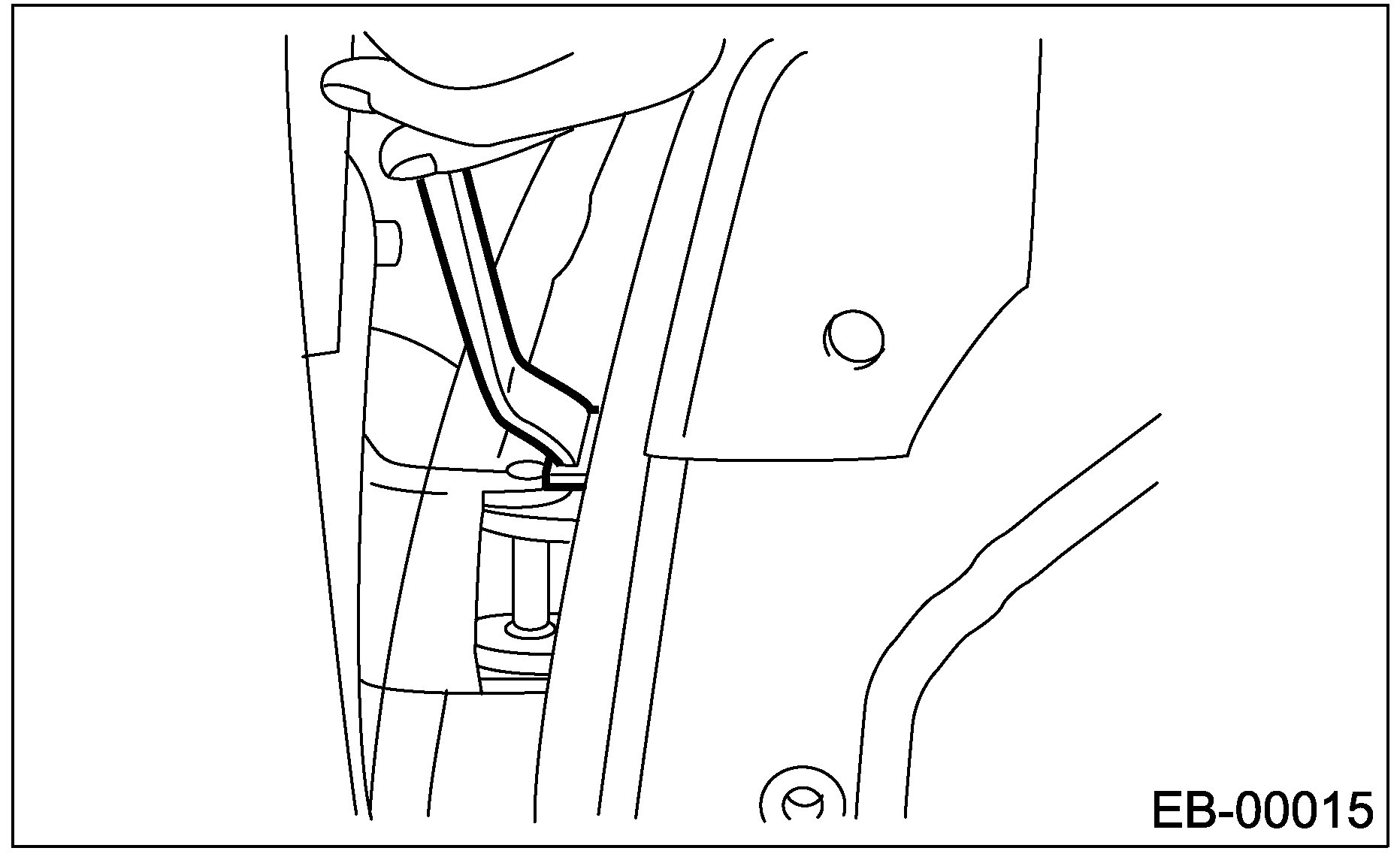

Remove the checker bolts.

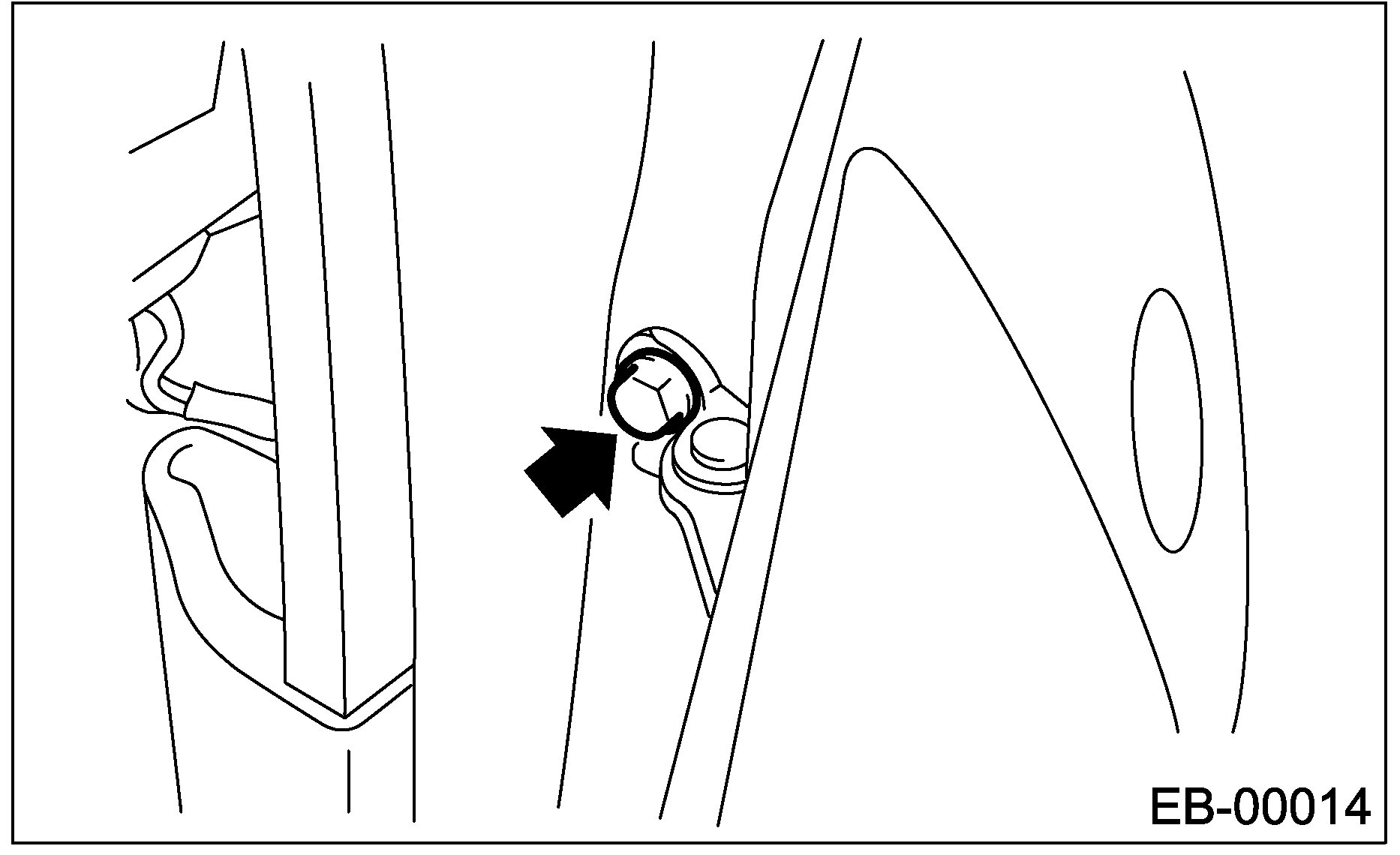

Remove the door-side bolts for upper and lower hinges to remove the rear door panel.







INSTALLATION

Install in the reverse order of removal.
Apply grease to the sliding area of door hinges.
